FlawTech Ultrasonic Practical Exam Specimens

FlawTech Ultrasonic Practical Exam Specimens

UT Practical Exam Specimens

Ultrasonic Practical Exam Specimens

P101 - Plates & Sheets

0.75" x 8" x 10"

P102 - Bar & Rod Stock

1.5" OD x 12"

P103 - Bar and Stock Rod

4" OD x 6" long

P104 - L/R 90° Elbow to Pipe

2" Sch160 Pipe x 6" long to elbow

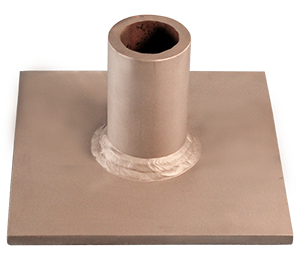

P105 - Node to Plate Weld

2" Sch160 Pipe to 0.375 x 8" x 8" Plate

P106 - Pipe to Socket Weld

2" Sch160 Pipe x 6" long to Socket Coupling

P107 - Welded Plate



0.5" x 8" x 12"

P108 - Welded Plate



1" x 6" x 10"

P109 - Welded Pipe

4" Sch160 x 8"

P110 - Lap Joint

0.5" x 12" x 6"

P111 - Forged Pipe Flange

6" OD x 0.75" T

P112 - Welded Tee

0.5" x 8" x 8" x 4"

Specimen Details:

  • 3 Flaws  randomly placed and selected per specimen
  • Document Package including, Certificate of Conformance, CAD Drawings & Test Sheets with each specimen
  • Standard Tolerance ± 0.150" (4mm)
  • Blank specimens available upon request
  • Specimens are carbon steel (Custom specimens available upon request).
  • Discount & Free Carrying Case with purchase of 3+ Practical Exam Specimens
  • Applicable for ISO9712, EN473, PCN and TC-1A

There is a $5.00 handling fee on FedEx shipments from FlawTech.

Description Part # Saved Price Select Option Add to
FlawTech UT Practical Exam - 0.75" Plate / Sheet FS-FTK-P101
$685.00
FlawTech UT Practical Exam - 1.5" OD Bar FS-FTK-P102
$685.00
FlawTech UT Practical Exam - 4" OD Bar FS-FTK-P103
$685.00
FlawTech UT Practical Exam - 2" OD L/R 90 Degree Elbow to Pipe FS-FTK-P104
$685.00
FlawTech UT Practical Exam - 2" OD Node to 0.375" Plate FS-FTK-P105
$685.00
FlawTech UT-Practical Exam - 2" OD Pipe to Socket FS-FTK-P106
$685.00
FlawTech UT Practical Exam - 0.5" Welded Plate FS-FTK-P107
$685.00
FlawTech UT Practical Exam - 1.0" Welded Plate FS-FTK-P108
$685.00
FlawTech UT Practical Exam - 4" Welded Pipe FS-FTK-P109
$685.00
FlawTech UT Practical Exam - Lap Joint FS-FTK-P110
$685.00
FlawTech UT Practical Exam - Forged Pipe Flange FS-FTK-P111
$685.00
FlawTech UT Practical Exam - 0.5" Welded Tee FS-FTK-P112
$685.00
