ASME Boiler & Pressure Vessel Code, Sec. XI, Appendix VIII Kits

ASME Section XI Appendix VIII Kits

  • The kits are manufactured to meet the minimum requirements of ASME boiler & pressure vessel code, Section XI, Appendix VIII, of Supplement 2, 3 & 10.
  • At least 50% of the cracks will be coincident with fabricated conditions such as ground & "as-welded" crowns, counterbores & weld root conditions.
  • Flaw depths will range from the 10 - 30% through the 61 - 100% depth ranges as specified in ASME Section XI, Appendix VIII.
  • All flaws will be mechanical fatigue or thermal fatigue cracks with at least 75% of the cracks being thermal fatigue.
  • Critical tolerance: +/- 0.040" (1MM)
  •  Custom appendix VIII specimens are available upon request

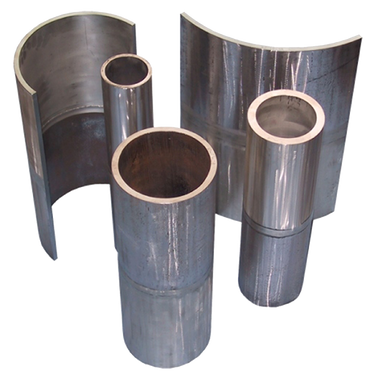

Supplement 2, 3 & 10 Kits

Supplement 2 Kit for Austenitic Piping

  • 5 Specimens:
    • Stainless Steel Welded Piping (2″ Sch80 x 24″L x 360° Seg.); 1 Unflawed Unit, 1 Flawed Unit
    • Stainless Steel Welded Piping (4″ Sch80 x 24″L x 360° Seg.); 3 Unflawed Units, 1 Flawed Unit
    • Stainless Steel Welded Piping (6″ Sch160 x 24″L x 360° Seg.); 4 Unflawed Units, 2 Flawed Units
    • Stainless Steel Welded Piping (12″ Sch80s x 24″L x 360° Seg.); 9 Unflawed Units, 3 Flawed Units
    • Stainless Steel Welded Piping (24″ Sch80s x 24″L x 120° Seg.); 5 Unflawed Units, 3 Flawed Units
  • Flaws: 22 Unflawed Units & 10 Flawed Units
  • Weight: 360 lbs.

Supplement 3 kit for Ferritic Piping

  • 5 Specimens:
    • Carbon Steel Welded Piping (2″ Sch80 x 24″L x 360° Seg.); 1 Unflawed Unit, 1 Flawed Unit
    • Carbon Steel Welded Piping (4″ Sch80 x 24″L x 360° Seg.); 3 Unflawed Units, 1 Flawed Unit
    • Carbon Steel Welded Piping (6″ Sch160 x 24″L x 360° Seg.) 4 Unflawed Units, 2 Flawed Units
    • Carbon Welded Piping (12″ Sch80s x 24″L x 360° Seg.); 9 Unflawed Units, 3 Flawed Units
    • Carbon Steel Welded Piping (24″ Sch80s x 24″L x 120° Seg.); 5 Unflawed Units, 3 Flawed Units
  • Flaws: 22 Unflawed Units & 10 Flawed Units
  • Weight: 350 lbs.

Supplement 10 Kit for Dissimilar Metal Welds

  • 5 Specimens:
    • SS/CS Welded Piping (4″ Sch80 x 24″L x 360° Seg.); 1 Unflawed Unit, 2 Flawed Units
    • SS/CS Welded Piping (6″ Sch160 x 24″L x 360° Seg.); 3 Unflawed Units, 2 Flawed Units
    • SS/CS Welded Piping (8″ Sch80 x 24″L x 360° Seg.); 4 Unflawed Units, 3 Flawed Units
    • SS/CS Welded Piping (12″ Sch80s x 24″L x 180° Seg.); 9 Unflawed Units, 4 Flawed Units
    • SS/CS Welded Piping (24″ Sch80s x 24″L x 90° Seg.); 5 Unflawed Units, 4 Flawed Units
  • Flaws: 22 Unflawed Units & 15 Flawed Units
  • Weight: 340 lbs.

There is a $5.00 handling fee on FedEx shipments from FlawTech.

Product Literature

Description Part # Saved Price Select Option Add to
FlawTech ASME XI, Appendix VIII, Supplement 2 Kit FS-FTK-S2-K1
Request Pricing
FlawTech ASME XI, Appendix VIII, Supplement 3 Kit FS-FTK-S3-K1
Request Pricing
FlawTech ASME XI, Appendix VIII, Supplement 10 Kit FS-FTK-S10-K1
Request Pricing
