FlawTech ASME Section XI, Appendix VII Kit

FlawTech ASME Section XI, Appendix VII Kit

ASME Flaw Kit for Training & Qualification

ASME Kit for Training & Qualification

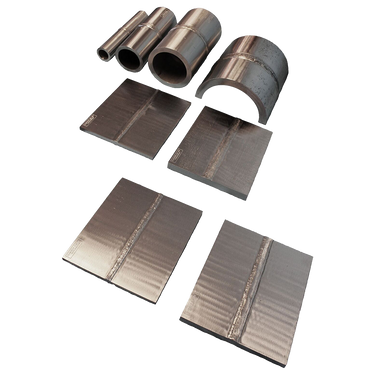

  • Material: 4 carbon steel specimens & 4 stainless steel specimens
  • 8 Piece Specimen Set. No 2 specimens are alike. Buy a 2 set, one for testing and one for training.
  • Flaws: 20 "Real" Flaws. Each specimen contains 4 "real flaws" designed to meet Appendix VII Specifications
  • Flaw Tolerance: +/- 0.0080"
  • Document Package Includes: Certificate of Conformance, CAD Drawings & NDT Reports
  • Weight: ~300 lbs. (Due to weight, special shipping considerations apply)
  • Custom options available: 10% notches, blank specimens and the purchase of individual flawed specimens.





Specimen Details:

  • 2 Welded Plates:
    • 1 Carbon Steel Plate: #A7-CS-005
    • 1 Stainless Steel Plate: A7-SS-005
    • 0.5" x 10" x 12"
  • 2 Welded Plates:
    • 1 Carbon Steel Plate: A7-CS-010
    • 1 Stainless Steel Plate: A7-SS-010
  • 1 Welded Pipe:
    • 1 Stainless Steel Pipe: A7-SS-020
    • 2" SCH160 x 12"
  • 1 Welded Pipe:
    • 1 Carbon Steel Pipe: A7-CS-040
    • 4" SCH160 x 12"
  • 1 Welded Pipe:
    • 1 Stainless Steel Pipe: A7-SS-060
    • 6" SCH160 x 12"
  • 1 Welded Pipe:
    • 1 Carbon Steel Pipe: A7-CS-100
    • 180 degree segment
    • 10" SCH160 x 12"

There is a $5.00 handling fee on FedEx shipments from FlawTech.

Description Part # Saved Price Select Option Add to
FlawTech ASME Sec. XI, Appendix VII Kit FS-FTK-A7-K1
Request Pricing
