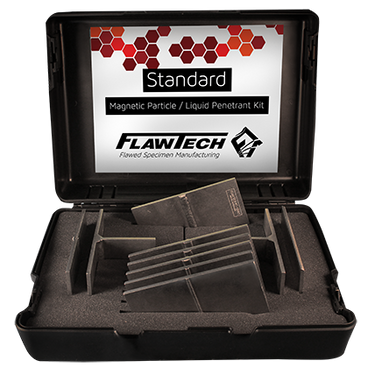

FlawTech Standard Mag Particle/Dye Penetrant Kit

FlawTech Standard Mag Particle/Dye Penetrant Kit

10 Specimens with 20 Flaws

Standard MT / PT Kit

  • Material: Carbon Steel
  • 10 Specimens:
    • 8 Plates: 0.25" T x 4" x 8"
    • 2 Tees: 0.25" T x 4" x 8" x 4"
  • Flaws: Total of 20 flaws. Each specimen contains 2 "Real Flaws" randomly placed.
  • Flaw Tolerance: +/- 0.150" (4mm)
  • Documentation Package Includes: Certificate of Conformance, CAD Drawings & Test Sheets
  • Carrying Case Included: 6" x 16" x 20"
  • Weight: ~35 lbs.

Flaws Included:

  • Toe Crack SV & Fillet
  • Root Crack SV
  • Centerline Crack SV (surface breaking)
  • Circumferential Crack SV (flush crown)
  • Transverse Crack in SV (flush crown)
  • Base Metal Crack in SV (top HAZ & bottom HAZ area)
  • Crater Crack SV (surface stop-start area)
  • Porosity SV & Fillet (surface breaking)
  • Lamination Weld Prep
  • Lack of Fusion SV (surface breaking at crown & root)
  • Overlap Fillet



There is a $5.00 handling fee on FedEx shipments from FlawTech.

Product Literature

Description Part # Saved Price Select Option Add to
FlawTech Magnetic Particle/Dye Penetrant Kit FS-FTK-MK-1
$2,260.00
FlawTech Stainless Liquid Penetrant Kit FS-FTK-SSPK-1
$4,150.00
