FlawTech MT / PT Practical Exam Specimens

FlawTech MT / PT Practical Exam Specimens

Mag Particle & Penetrant Practical Exam Specimens

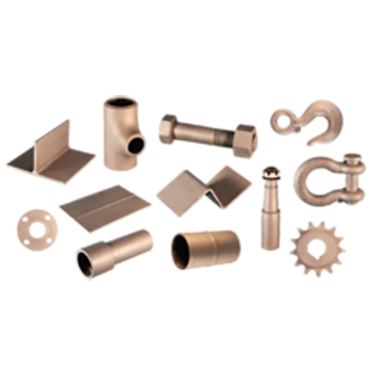

MT / PT Practical Exam Specimens

P001 - Cast Fitting

2" to 1.3" reducer x 5" L

P002 - Machined Spindle

1.75" OD x 8" long

P003 - Bolt & Nut

1.25" OD x 6" long

P004 - Forged Eye Hook

6" long w/ ~2" eye

P005 - Forged Shackle & Pin

4.25" w/ 0.75" Pin

P006 - Formed Metal Plate

0.25" x 4" Plate

P007 - Welded Plate

0.25" x 8" x 12" Plate

Single Vee, As Welded or Blended Crown

P008 - Welded Pipe

4" SCH 40 x 8" L

Single Vee, As Welded or Blended Crown

P009 - Forged Pipe Flange

6" OD x 0.75" T

P010 - Machined Gear

4.6" OD x 1.5" bore

P011 - Welded Tee


0.25" x 8" x 8" x 4"

As Welded or Blended Crown

P012 - Pipe to Socket Weld



2" SCH160 Pipe 6" to Coupling

Specimen Details:

  • Material: Carbon Steel
  • Flaws: 3 "Real Flaws" per specimen.
  • Flaw Tolerance: +/- 0.150" (4mm)
  • Document Package Includes: Certificate of Conformance, CAD Drawings & Test Sheets
  • Free Carrying Case with purchase of 3+ specimens
  • Blank & Custom specimens available upon request
  • Applicable for ISO9712, EN473, PCN and TC-1A

There is a $5.00 handling fee on FedEx shipments from FlawTech.

Description Part # Saved Price Select Option Add to
FlawTech P001 Cast Fitting, 2" OD w/ 1.3" OD Reducer x 5" long FS-FTK-P001 $530.00
FlawTech P002 - Machined Spindle, 1.75" OD x 8" long FS-FTK-P002 $530.00
FlawTech P003 - Bolt & Nut, 1.25" OD x 6" long FS-FTK-P003 $530.00
FlawTech P004 - Forged Hook, 6" long w/ ~2" eye FS-FTK-P004 $530.00
FlawTech P005 - Forged Shackle & Pin, 4.25" w/ 0.75" pin FS-FTK-P005 $530.00
FlawTech P006 - Formed Plate, 0.25" x 4" FS-FTK-P006 $530.00
FlawTech P007 - Welded Plate, 0.25" x 8" x 12" FS-FTK-P007 $530.00
FlawTech P008 - Welded Pipe, 4.5" OD x 0.25" x 8" FS-FTK-P008 $530.00
FlawTech P009 - Forged Pipe Flange, 6" OD x 0.75" T FS-FTK-P009 $530.00
FlawTech P010 - Machined Gear, 4.6" OD x 1.5" bore FS-FTK-P010 $530.00
FlawTech P011 - Welded Tee, 0.25" x 8" x 8" x 4" FS-FTK-P011 $530.00
FlawTech P012 - Pipe to Socket Weld, 2" Sch160 Pipe to Coupling FS-FTK-P012 $530.00
