FlawTech Composite Specimens

FlawTech Composite Specimens







22 Ply - 11 Step Block w/ Teflon Voids

Specifications

  • Material: Carbon Fiber
  • 11 Step Block with Teflon Voids
    • 10 - 1" wide steps and 1-2" wide steps
    • Steps at: 0.25", 0.50", 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5", 2.75"
    • Step 1 has one .5" x .5" Teflon inserts
    • Step 2-11 have both a .25" x .25" and .5" x .5" inserts
  • Flaws: Total of 21 Teflon Inserts
  • Specimens will be identified with a unique serial number
  • Documentation: C of C, "As Built" CAD drawings and Test Sheets
  • Dimensions: 2.75" x 3" x 12"
  • Weight: 3 lbs.

Cored - Disbond & Delamination Block

Specifications

  • Material: Carbon Fiber with Foam Core
    • 0.10" Carbon Fiber Laminate each side
    • Foam Core
  • Flaws: Core Dis-bond and Delamination
  • Specimens will be identified with a unique serial number
  • Documentation: C of C, "As Built" CAD drawings and Test Sheets
  • Dimensions: 6" x 6" x 1.2"
  • Weight: .5 lbs.

Cored - Impact Damage Block

Specifications

  • Material: Carbon Fiber Laminate with Foam Core
  • 0.25" Carbon Fiber Laminate each side
  • 0.75" Foam Core
  • Flaws: Impact Damage
  • Specimens will be identified with a unique serial number
  • Documentation: C of C, "As Built" CAD drawings and Test Sheets
  • Dimensions: 3" x 6" x 1.3"T
  • Weight: .5 lbs.

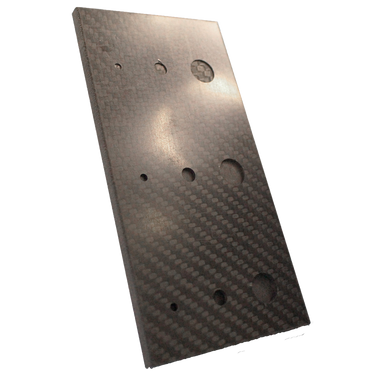

Monolithic - Flat Bottom 9 Hole Block

Specifications

  • Material: Carbon Fiber
  • 9 Flat Bottom Holes (FBH)
    • 3 - 0.125" Diameter @ 0.025", 0.063" and 0.125" Depth
    • 3 - 0.25" Diameter @ 0.025", 0.063" and 0.125" Depth
    • 3 - 0.50" Diameter @ 0.025", 0.063" and 0.125" Depth
  • Flaws: Total of 9 FBHs
  • Specimens will be identified with a unique serial number
  • Documentation: C of C, "As Built" CAD drawings and Test Sheets
  • Dimensions: 3" x 6" x 0.25"T
  • Weight: .5 lbs.

Monolithic - Impact Damage w/Fiber Break Block

Specifications

  • Material: Carbon Fiber
  • Solid Carbon Fiber Laminate
  • Flaws: Impact Damage and Fiber Break
  • Specimens will be identified with a unique serial number
  • Documentation: C of C, "As Built" CAD drawings and Test Sheets
  • Dimensions: 3" x 6" x 0.25" T
  • Weight: .5 lbs.

There is a $5.00 handling fee on FedEx shipments from FlawTech.

Description Part # Saved Price Select Option Add to
FlawTech 22 Ply - 11 Step Block w/ Teflon Voids FS-FTK-COM11 $1,250.00
FlawTech Cored - Disbond & Delamination Block FS-FTK-COMCDD $875.00
FlawTech Cored - Impact Damage Block FS-FTK-COMCID $895.00
FlawTech Monolithic - Flat Bottom 9 Hole Block FS-FTK-COMFBH $1,125.00
FlawTech Monolithic - Impact Damage w/ Fiber Break Block FS-FTK-COMMID $950.00
