TMM has many years of experience designing and building conveyorized demagnetizing systems. Each system can be customized to your specific needs and equipped with conventional 50/60 Hz, 6,000 or 8,000 ampere-turn coils.


Electromagnets + Modular Belt + Motor Driven Conveyor Solution


tmm-electromagnet-modular-belt-motor-driven-conveyor-solution

This demagnetizer can be used in combination with a modular belt conveyor for components packed in boxes or on pallets.

  • Aluminum chassis
  • Motor driven modular belt for transporting pieces
  • Adjustable conveyor speed
  • Automatic start and stop by optical sensors (optional)
  • Timer for operation
  • 600mm (24") in length covered tunnel after coil to avoid removing components and incomplete demagnetization.
  • Adjustable ampere-turns (optional)
  • Main switch
  • On - off buttons and emergency stop
  • Ventilation fan for cooling
  • Tower lights (stand by, working, fault signalization)
  • Custom made sizes up to 350x200mm (14"x8") surface
  • Supply voltage 230V, 50/60 Hz
PVC Belt + Motor Driven Conveyor Solution

tmm-pvc-belt-motor-driven-conveyor-solution


This demagnetizer uses a motor driven PVC belt conveyor.

  • Steel chassis
  • Motor driven PVC belt for transporting pieces
  • Adjustable conveyor speed
  • Automatic start and stop by optical sensors (optional)
  • Timer for operation
  • 600mm (24") in length covered tunnel after coil to avoid removing components and incomplete demagnetization.
  • Adjsutable ampere-turns (optional)
  • Main switch
  • On - off buttons and emergency stop
  • Ventilation fan for cooling
  • Tower lights (stand by, working, fault signalization)
  • Custom made sizes up to 500x500mm (20"x20") aperture
  • Supply voltage 230V, 50/60 Hz




Coil + Modular Belt + Motor Driven Conveyor Solution

tmm-modular-belt-motor-driven-conveyor-solution

This demagnetizer uses a motor driven modular belt conveyor.
  • Aluminum chassis
  • Motor driven modular belt for transporting pieces.
  • Adjustable conveyor speed
  • Automatic start and stop by optical sensors
  • Timer for operation
  • 600mm (24") in length covered tunnel after coil to avoid removing components and incomplete demagnetization.
  • Adjustable ampere-turns (optional)
  • Main switch
  • On - off buttons and emergency stop
  • Ventilation fan for cooling
  • Tower lights (stand by, working, fault signalization)
  • Custom made sizes up to 400x400mm (16"x16") aperture
  • Supply voltage 230V, 50/60 Hz
Electromagnet Inline Solution

tmm-electromagnet-inline-solution


This demagnetizer can be installed to an existing conveyor system. Components pass between the electromagnets.

  • Aluminum chassis
  • Adjustable distance between electromagnets
  • Main switch
  • On - off buttons
  • Tower lights (stand by, working, fault signalization)
  • Supply Voltage 230V, 50/60 Hz

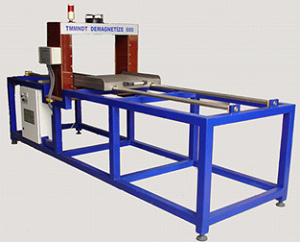

Manual Stainless Steel Trolley Solution

tmm-manual-stainless-steel-trolley-solution

This demagnetizer employs a manual trolley made of stainless steel on which components are taken from one end to the other. The trolley is supported on sturdy wheels.
  • Main switch
  • On - off buttons
  • Ventilation fan for cooling
  • Tower lights (stand by, working, fault signalization)
  • Custom made sizes up to 600x600mm (24"x24") aperture
  • Supply voltage 230V, 50/60 Hz
  • Adjustable ampere-turns (optional)
  • Timer for operation
  • Automatic start by an optical sensor (optional)
Manual Kestamid Trolley Solution

tmm-manual-kestamid-trolley-solution
This demagnetizer employs a manual trolley made of non-magnetic material on which components are taken from one end to the other. It is suitable for small components.
  • Main switch
  • On - off buttons
  • Ventilation fan for cooling
  • Custom made sizes up to 300x300mm (12"x12") aperture
  • Supply voltage 230V, 50/60 Hz




Special Solution for Cylinder Liners

tmm-special-solution-for-cylinder-liners

Demagnetization tunnel is suitable for the demagnetization of cylinder liners / cylindrical hollow parts that have undesirable residual magnetism. It is a compact unit consisting of a coil with Ø240mm (9.6") aperture and chassis with gravity roller conveyor and feeding mechanism.

  • Semi-automatic
  • Adjustable ampere-turn up to 9000 A-turns
  • PLC controlled
  • User-friendly touch screen operator panel
  • Step motor driven lifting mechanism
  • Pneumatic controlled feeling separators
  • Supply voltage 230V, 50/60 Hz
  • Fault messages on operator panel

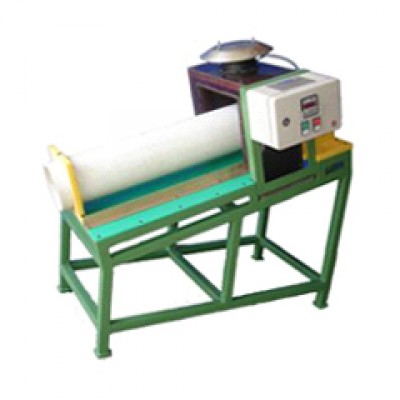

Chute Type Demagnetizer

tmm-conveyor-solutions-1

This demagnetizer has an aperture up to 300x300mm (12"x12"). A plastic chute passes through the coil. Components slide down this chute with gravitational force. It is suitable for small components.

  • Main switch
  • On - off buttons
  • Ventilation fan for cooling
  • Custom made sizes
  • Supply voltage 230V, 50/60 Hz

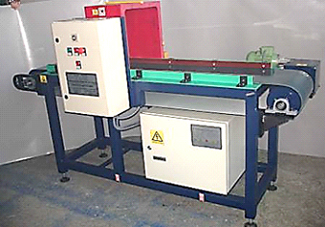

Transformer + Coil + PVC Belt + Motor Driven Conveyor Solution
tmm-conveyor-solutions-2

This demagnetizer uses a motor driven PVC belt conveyor. The coil is fed by a transfomer. It is a heavy duty system.

  • Steel chassis
  • Waterproof coil isolation
  • Coil winding from copper bar
  • Motor driven PVC belt for transporting pieces
  • Adjustable conveyor speed
  • Automatic start and stop by optical sensors (optional)
  • Timer for operation
  • Adjustable ampere-turns (optional)
  • Main switch
  • On - off buttons and emergency stop
  • No need for ventilation
  • Tower lights (stand by, working, fault signalization)
  • Custom made sizes up to 600x600mm (24"x24") aperture
  • Supply voltage 400V, 50/60 Hz

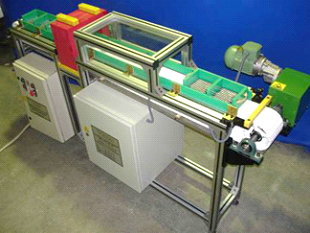

Transformer + PVC Belt + Motor Driven Conveyor Solution
tmm-conveyor-solutions-3

This demagnetizer uses a motor driven modular belt conveyor. The coil is fed by a transformer. It is suitable for small parts.

  • Aluminum chassis
  • Waterproof coil isolation
  • Coil winding from copper bar
  • Motor driven modular belt for transporting pieces
  • Adjustable conveyor speed
  • Automatic start and stop by optical sensors (optional)
  • Timer for operation
  • 600mm (24") in length covered tunnel after coil to avoid removing components and incomplete demagnetization.
  • Adjustable ampere-turns (optional)
  • Main switch
  • On - off buttons and emergency stop
  • No need for ventilation
  • Custom made sizes up to 200x200mm (8"x8") aperture
  • supply voltage 400V, 50/60 Hz

Motorized Coil Solution

tmm-conveyor-solutions-4


This demagnetizer uses a motorized coil. Component is placed on a wooden platform and the coil travels along the component. It is suitable for heavy and long / big parts such as aircraft landing components.

  • Semi-automatic
  • Adjustable ampere-turn up to 9000 A-turns
  • Control panel
  • PLC
  • User-friendly touch screen operator panel
  • Motor driven coil by gear-rack mechanism
  • Heavy duty platform
  • Supply voltage 400V, 50/60 Hz
  • Fault message on operator panel

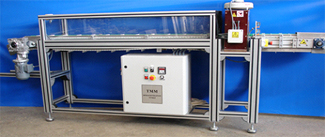

Modular Belt + Motor Driven Conveyor Solution

tmm-conveyor-solutions-5


This demagnetizer uses a motor driven modular belt conveyor. The modular belt has flights and side guards to prevent falling off and slipping back by reason of magnetic field. It is suitable for small components such as bolts, pins, etc..

  • Aluminum chassis
  • Motor driven modular belt for transporting pieces
  • Adjustable conveyor speed
  • Automatic start and stop by optical sensors
  • Timer for operation
  • 600mm (24") in length covered tunnel after coil to avoid removing components and incomplete demagnetization.
  • Adjustable ampere-turns (optional)
  • Main switch
  • On - off buttons and emergency stop
  • Ventilation fan for cooling
  • Tower lights (stand by, working, fault signal)
  • Custom made sizes up to 800x800 mm (32"x32") aperture
  • Supply voltage 230V, 50/60 Hz
