Time TR200 Plus Advanced Surface Roughness Tester

Time TR200 Plus Advanced Surface Roughness Tester

Time TR200 Plus Advanced Surface Roughness Tester

The TR200 Plus replaces the TR-110.

Features:


  • Measures metal and non-metal processing parts
  • Measures flat, outer cylinder and sloping surface
  • Electronic, digital, OLED display
  • 20 different roughness parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rpc, Rk, Rpk, Rvk, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rs, Rmax and Mr1/Mr2.
  • Roughness profile graphic display
  • Rmr curve (material ratio, C%) display
  • Selectable languages: English, German, French, Italian, Spanish and Dutch
  • This unit can be used together with a measuring platform.
  • Applicable in production site, laboratory and workshop in factor.
  • Conform to ISO standards, compatible with DIN, ANSI and JIS standards
  • Measures in both Metric (µm) and Imperial units (uinch)
  • Built-in lithium ion rechargeable battery; 20 hours of continuous working time.
  • Large capacity data memory, can store 100 groups of original data and wave profiles.
  • Real-time clock settings and display, convenient data recording and storage.
  • Automatic dormancy, automatic shutdown and power saving functions
  • Data output: RS-232 to printer TA-230 or PC
  • Optional transducers for curved surfaces, bores, inside pipe and groove, measuring platform and extension rod and other accessories.



Specifications:

Roughness Parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rpc, Rk, Rpk, Rvk, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rs, Rmax & Mr1/Mr2.
Standards: Conforms to ISO/DIN/JIS/ANSI
Assessed Profiles: Roughness profile, Material ratio profile (Rmr curve)
Measuring Units: Both Metric (µm) and Imperial (Uinch)
Measuring Range: The Z axis (Vertical): 160 µm
Ra: 0.01 - 10 µm (400 uinch), Rq: 0.01 - 40 µm
Rz, Ry, Rp, Rt, R3z: 0.02 - 160 µm
The Max./Min. driving tip: 0.7" (17.5mm) / 0.03" (0.75mm)
Display Resolution: 0.001 µm / 0.04 uinch
Filter: RC, PC-RC, Gauss, D-P
Cut-off length (lr): 0.01" (0.25mm), 0.03" (0.8mm), 0.1" (2.5mm)
Internal storage capacity: 100 groups of original data
Evaluation length (In): Ln= lr x n n=1-5
Pick up transducer: Inductive, Diamond stylus with Radius 5 µm
Tolerance: ≤ ± 10%
Repeatability: ≤ 6%
Display Features: OLED display, transducer stylus position indicator, battery level indication, Measured parameters and profile showing, Rmr (T-P) curve showing
Output: USB
Power: Li-ion rechargeable battery. More than 20 working hours per full charging
Dimensions: 5.6" x 2.2" x 1.7" (143 x 55 x 42 mm)
Weight: 14 oz. (400 g)


Software:

dataview of surface roughness dataview of surface roughness data management



Click on the images in the table above to see larger image.


Standard accessories:


  • TR200 Plus Main Unit
  • TS100+ Pick up Transducer
  • Roughness Test Plate Ra
  • Steel protective Support for stand-alone use
  • Battery Charger 220V / 50 Hz
  • Software with USB Cable
  • Manual
  • Calibration Certificate
  • Carrying Case
  • Warranty Card

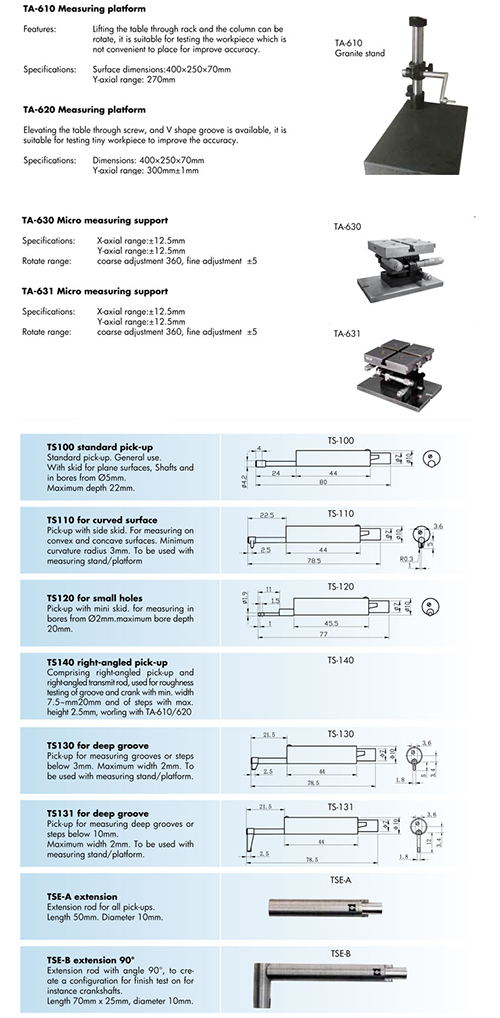

Optional accessories


  • TS110+ pick-up for curved surfaces
  • TS120+ pick-up for ID surfaces
  • TS130+ pick-up for groove depths of 0.12" / 3mm
  • TS131+ pick-up for groove depths of 0.4" / 10mm
  • TS140+ right-angled pick-up

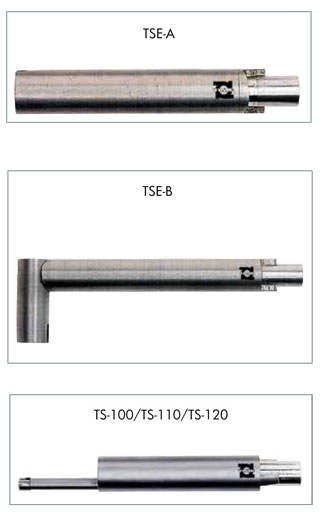

  • TSE-A extension rod
  • TSE-B 90° extension rod
  • TA610 measuring stand
  • Steel L Shaped adapter for connection for T610 stand
  • Roughness Standard
  • Roughness Standard for TS110 probe



TR-200-accessories

TR-200-pick-ups

TA610-measuring table

TA630-leveling-table

Product Literature

Description Part # Saved Price Select Option Add to
Time TR200 Plus Advanced Surface Roughness Tester, Includes TS100+ Probe, Test Plate, Steel Support, Charger, Software, Manual, Carrying Case, Warranty Card and Calibration Certificate SR-TT-TR200-PLUS $1,850.00
TS100+ Probe SR-TT-TS100 $795.00
TS110+ Curved Surface Probe SR-TT-TS110 $900.00
TS120+ ID Surface Probe SR-TT-TS120 $900.00
TS130+ (Groove Depth for 3mm) Probe SR-TT-TS130 $1,195.00
TS131+ (Groove Depth for 10mm) Probe SR-TT-TS131 $1,250.00
TS140+ Right Angle Probe SR-TT-TS140 $1,295.00
TSE Extension Rod SR-TT-TSE $300.00
TSE-B 90 Degree Extension Rod SR-TT-TSE-B $310.00
TA610 Measuring Stand for Small Parts SR-TT-TA610 $850.00
L-Shaped Adapter for the TA610 Stand SR-TT-TA610-L $95.00
Regular Roughness Standard SR-TT-RRS $265.00
Regular Roughness Standard for TS110 Probe SR-TT-TS110-RRS $295.00
Battery Charger SR-TT-BATT Request Pricing
Carrying Case SR-TT-CASE $89.00
