Echo Ultrasonics EchoMix Powder Couplant

Echo Ultrasonics EchoMix Powder Couplant

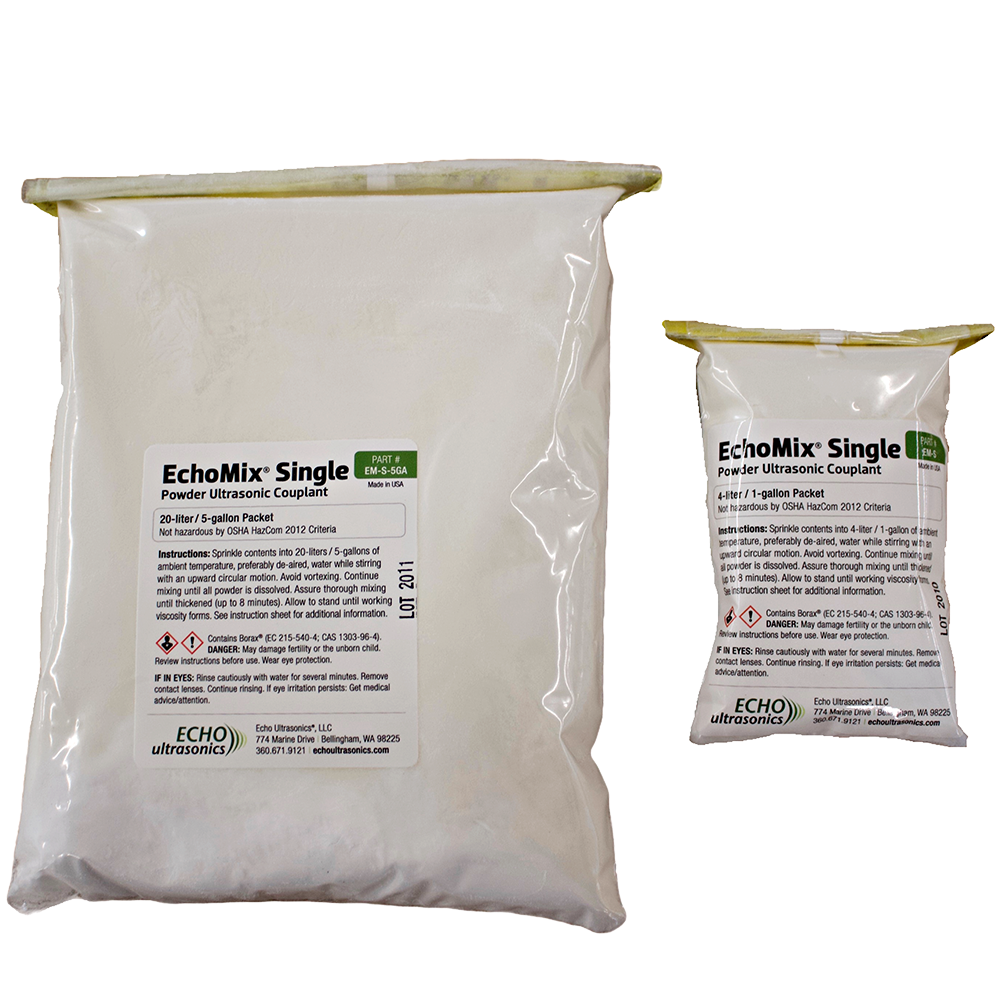

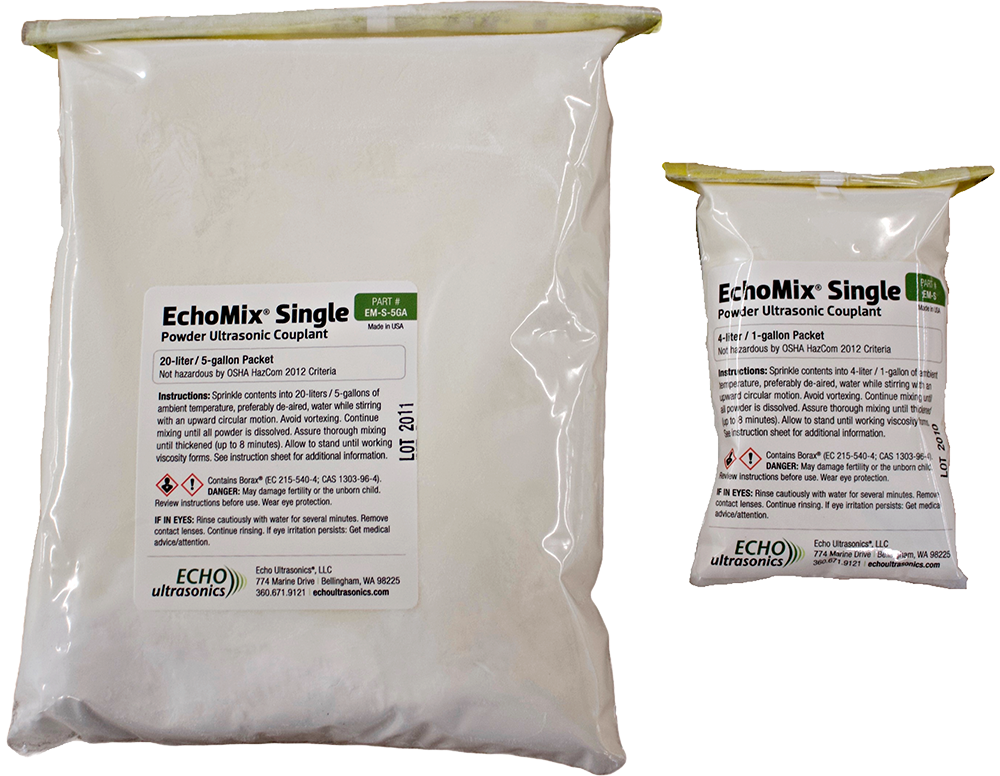

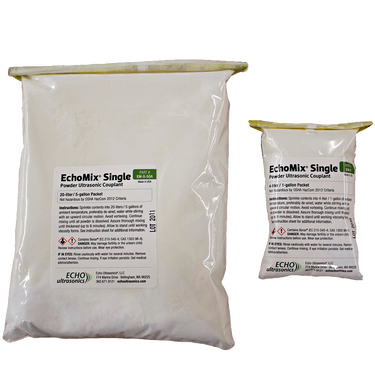

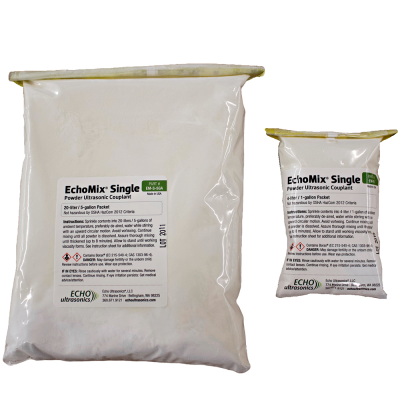

EchoMix is a dry powder, ambient temperature, couplant concentrate supplied in convenient premeasured packets (1 & 5 gallon).

EchoMix, EchoMix Clear & EchoMix Single Powder Couplant

EchoMix, EchoMix Clear and EchoMix Single are easily mixed in ambient water in five minutes, providing a strong, continuous coupling film that adheres well to vertical and overhead surfaces.

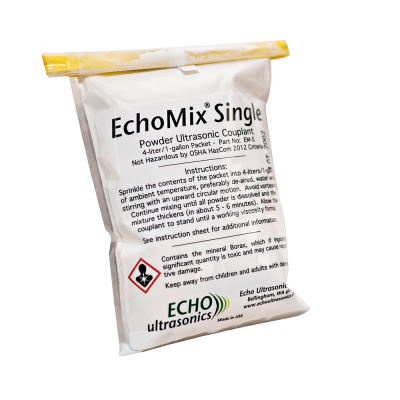

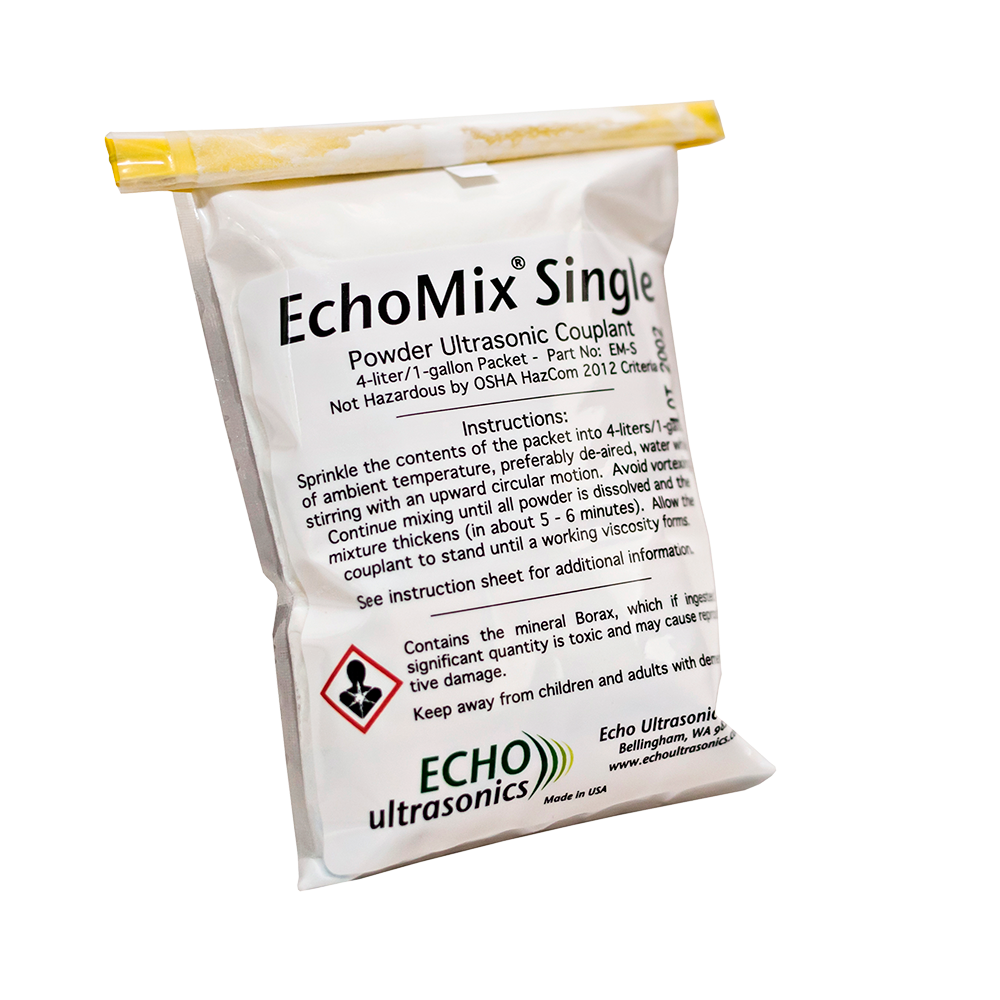

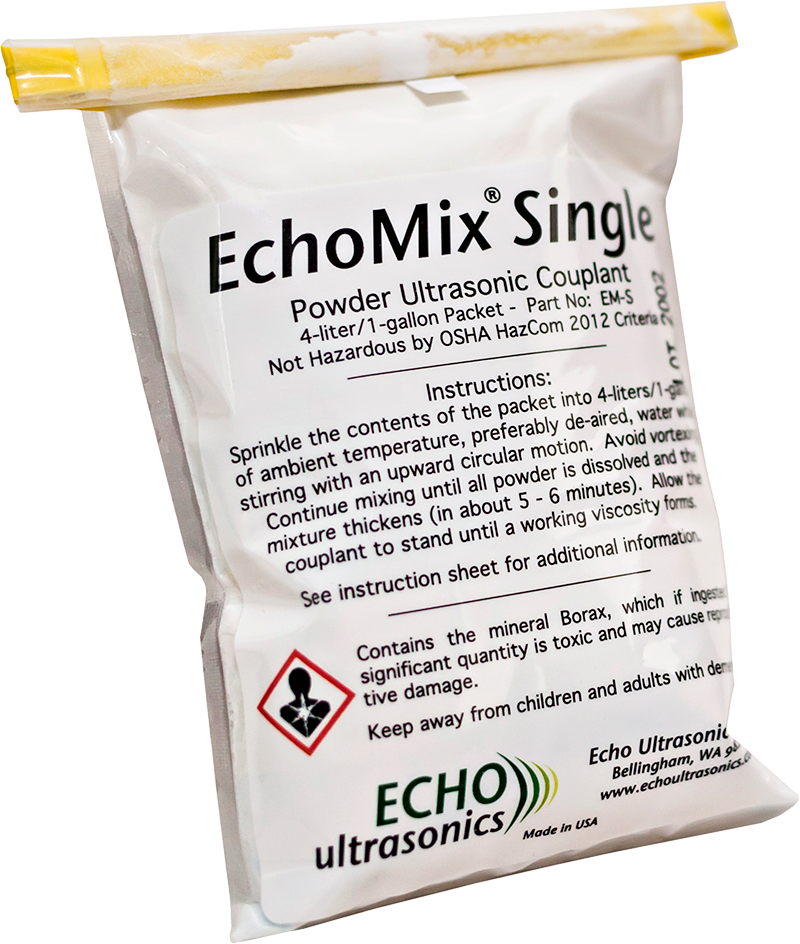

EchoMix Single mix packet, one step mixing.

free sample available for your evaluation

Product Description Product Specifications (after mixing)

Provides a strong, continuous coupling film, reduces transducer wear and adheres well to vertical and overhead surfaces without dripping.

Reduced surface tension provides good wetting characteristics

Salt resistant formulation. No loss in viscosity on corroded surfaces, marine parts or on boilers with salt cake.

Contains no formaldehyde. No strong odor or eye irritant from off-gassing.

Low environmental impact. No phosphates.

Compact for shipping and storage.

Easy mixing:
EchoMix & EchoMix Clear: Easy mixing, fast gel time in ambient water (5 minutes to final product)
EchoMix Single: Easy mixing, single packet mixes into ambient temperature water in one step.

Corrosion inhibition: Contains mild short term ferrous corrosion inhibitors.

Viscosity:
EchoMix & EchoMix Clear (1 gallon mixture): 23,000 CPS, Brookfield #4 Spindle, 6 rpm
EchoMix Single (4 liter mixture): 23,000 CPS, Brookfield #4 Spindle, 6 rpm.

pH:
EchoMix & EchoMix Clear: 9
EchoMix Single: 12

Total Halogens: Less than 25 ppm

Sulfar: Less than 25 ppm

Operating Temperature: 32° to 120°F (0° to 50°C)

Packaging:
EchoMix: 1 and 5 gallon easy to open and easy to use powder packets.
EchoMix Single: Easy to open and easy to use single powder packet that when mixed with water yields 1 gallon / 4 liters.
EchoMix Clear: 1-gallon easy to open and to use powder packet.

    Working With EchoMix:

    • Echomix and EchoMix Clear are plant-based polymers that provide the viscosity needed and a strong coupling film.
    • Echomix and EchoMix Clear contain minerals, including Sodium Molybdate, which quickly increases the pH and causes the polymer to thicken. EchoMix, EchoMix Clear & EchoMix Single also provide ferrous corrosion inhibition. The blue color is a visual marker to insure uniform distribution of the corrosion inhibitor by encouraging thorough mixing.
    • Removal: Remove with a dry rag, water and brush or pressure washer.
    • Air Bubbles: All powder couplants will form small air bubbles after mixing if water is not de-aired. These small bubbles usually do not negatively affect the use of the couplant and they will dissipate in 3-4 days. If air bubble free couplant is desired, use hot water and allow to stand overnight, then proceed with adding the powder couplant.

      Compare:

        • UTX, UTX-FE: EchoMix produces a stronger continuous coupling film, adheres better to vertical and overhead surfaces and does not contain formaldehyde.
        • EchoMix complies with state and federal preservative (pesticide) and environmental regulations.
        • EchoMix contains a better ferrous corrosion inhibitor.

        Note: Minimum order for Echo Couplant is $75. For orders that do not meet our minimum, there will be a $25 small order processing fee.

        Note: EchoMix Clear has been discontinued as stock packaging but is available as custom packaging.

          EchoMix Powdered Ultrasonic Couplant Mixing Instructions

          Echo Ultrasonics EchoMix Mixing Instructions

          Description Part # Saved Price Select Option Add to
          Echo Ultrasonics Carton of (5) EchoMix Single - 1 gallon / 4 liter packet, 1 part UT-EU-EM-S-5
          		$146.00
          Echo Ultrasonics Carton of (10) EchoMix Single - 1 Gallon / 4 liter packets UT-EU-EM-S-10
          		$290.00
          Echo Ultrasonics Carton of (25) EchoMix Single - 1 Gallon / 4 liter packets UT-EU-EM-S-25
          		$725.00
          Echo Ultrasonics Carton of (50) EchoMix Single - 1 Gallon / 4 liter packets UT-EU-EM-S-50
          		$1,397.00
          Echo Ultrasonics EchoMix Single Carton of (100) 1 gallon / 4 liter packets UT-EU-EM-S-100
          		$2,793.00
          Echo Ultrasonics EchoMix Single - 5 gal / 20 liter packet UT-EU-EM-S-5GA
          		$113.00
          Echo Ultrasonics Carton of (5) EchoMix Single - 5 gal / 20 liter packet UT-EU-EM-S-5GA-5
          		$559.00
          Echo Ultrasonics 8 oz. refillable bottle with dispensing cap (available only with couplant orders) UT-EU-02-068BT
          		$5.00
