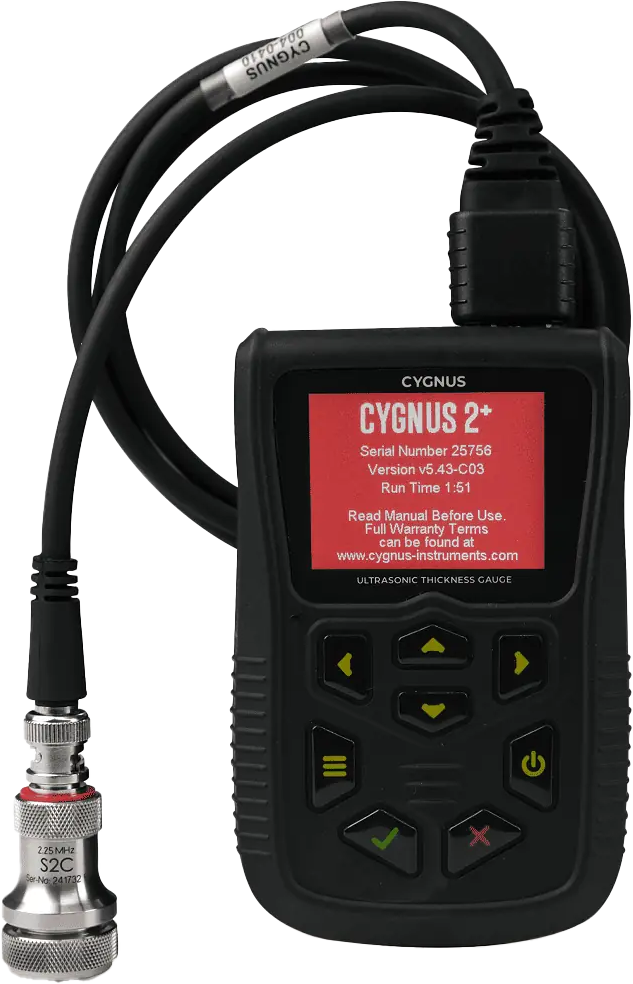

The Cygnus 2+ Hands-Free is a rugged, flexible thickness gauge designed for truly hands-free operation. With its end-mounted display and three distinct measurement modes, it suits challenging applications — from severely corroded metal surfaces to plastics and engineering materials. Whether you’re working on ship hulls, rope access scenarios, or industrial plant assets, this meter is built to deliver reliable ultrasonic thickness measurement.
Three measuring modes: Multiple-Echo, Echo-Echo, and Single-Echo — covering coatings, corrosion, and a wide range of materials
Deep Coat function allows accurate measurements beneath coatings up to 20 mm (0.8″) thick
Measurement Stability Indicator (MSI) ensures steady, verified readings in Echo-Echo and Single-Echo modes
Hands-free mounting options — wearable on the wrist, waist belt, or harness — with an end-mounted display for immediate visibility
Rugged and reliable: sealed to IP67 for dust and water protection and tested to MIL-STD-810G for shock and impact resistance
Transducer flexibility: compatible with both Single-Crystal and Twin-Crystal probes to match different materials and inspection needs
Upgradeable design: can be field-upgraded to higher models such as the Cygnus 4+ or 6+ for expanded functionality
Ideal for rope access and climbing inspections, allowing safe, hands-free operation in difficult or elevated locations

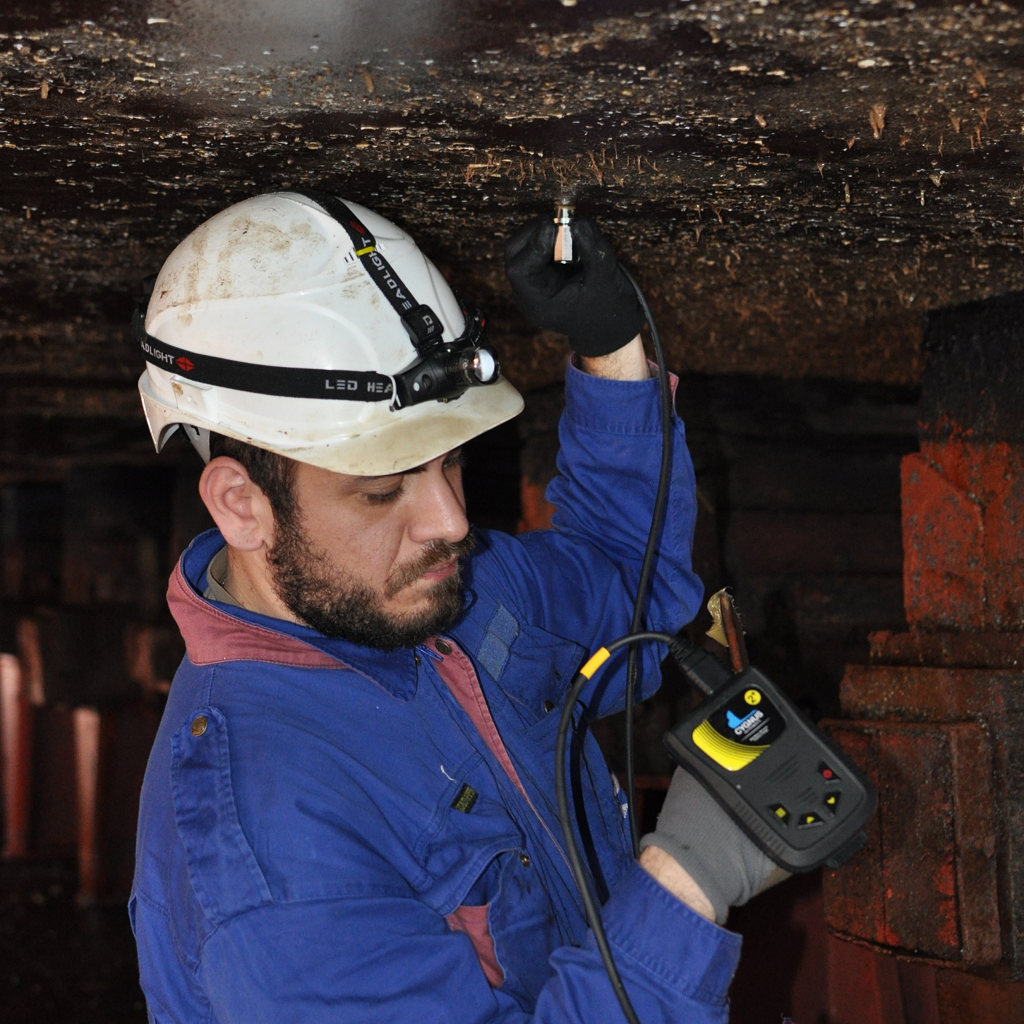

Used for hull thickness and UTM inspections on ships, offshore platforms, and other marine structures
Suited for civil engineering and structural integrity assessments on bridges, tanks, and industrial assets
Accurately measures through coatings up to 20 mm (0.8″) without removing paint or protective layers
Performs reliably on heavily corroded metals with front or back wall pitting and irregular geometries
Effective on attenuative or challenging materials, maintaining stable readings even in harsh environments
| Cygnus 2+ Ultrasonic Thickness Meter Technical Specifications | |
|---|---|
| Measuring Modes: | Multiple-Echo: uses 3 echoes to ignore coatings up to 0.8 inch (20 mm) thick Echo-Echo: uses 2 echoes to ignore coatings up to 0.04 inch (1 mm) thick Single-Echo: uses 1 echo |
| Materials: | Velocities from 0.0390 – 0.3543 in/µs (1,000 – 9,000 m/s) |
| Accuracy: | ±0.002″ (±0.05 mm) in Multiple-Echo mode when calibrated and measuring the same material as calibrated on ±0.004″ (±0.1 mm) or 0.1% of thickness (whichever is greater) in Single-Echo and Echo-Echo modes when calibrated and measuring the same material |
| Resolution: | Multiple-Echo mode – 0.005″ (0.1 mm) or 0.002″ (0.05 mm) Single-Echo and Echo-Echo modes – 0.001″ (0.01 mm) or 0.005″ (0.1 mm) |
| Probe Options: | Single crystal probes and Twin crystal probes |
| Measurement Range in Steel: | 0.031 – 10 inch (0.8 – 250 mm), depending on selected probe, configuration, material, and temperature |
| Connector: | 2 × Lemo 00 |
| Power: | 3 × AA / R6 batteries |
| Battery Life: | Approximately 10 hours of continuous measurement |
| Electronics: | Dual channel pulser |
| Display: | End-mounted rotatable LCD: 1.01″ × 0.25″ (25.58 × 6.38 mm) for measurements 2.4″ QVGA LCD: 1.85″ × 1.46″ (47 × 37 mm) for gauge setup only |
| Size: | 3.3 × 5.1 × 1.4 inch (84 × 130 × 35 mm) |
| Weight: | 10.5 oz (300 g) including batteries |
| Operating Temperature: | 14°F to 122°F (−10°C to +50°C) |
| Environmental Rating: |
IP67 MIL-STD-810G Method 501.6 (high temperature +131°F / +55°C) MIL-STD-810G Method 502.6 (low temperature −4°F / −20°C) MIL-STD-810G Method 507.6 (humidity 95%) MIL-STD-810G Method 512.6 (immersion 3.3 ft / 1 m for 30 minutes) |
| Shock and Impact: |
MIL-STD-810G Method 514.7 (vibration) MIL-STD-810G Method 516.7 (shock 20 g) MIL-STD-810G Method 516.7 (transit drop 4 ft / 1.22 m) |
| Standards: | Designed for EN 15317 |
| Compliance: | CE, UKCA, RoHS |
| Warranty: | 3 years on the gauge and 6 months on the probe |
