Doppler Delay Line Probes

Doppler Delay Line Probes

For precise measurements of thin materials, delamination detection of composites and other high resolution applications.

Features

Applications

  • Replaceable Delay Lines
  • High Bandwidth and Narrow Pulse
  • Excellent near surface resolution
  • Higher Frequency increases resolution of detection
  • Delay line acoustic impedance improves transmission into composites and plastics
  • Precise Thickness Measurements
  • Near Surface Flaw Detection
  • Ultra-Thin Workpiece Measurements

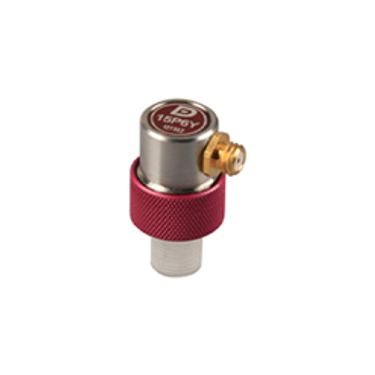

Delay Line Probes

  • Delay Lines can be purchased separately
  • Default length of Delay Line:
    • 0.125" (3mm) diameter Probe with 0.22" (5.5mm) Delay Line Length
    • 0.25"(6mm) and 0.5" (13mm) diameter Probes with 0.5" (12.7mm) Delay Line Length

Cable

  • Microdot (L5) Side Mounting Connector



Technical Specifications

Probe Specification

Doppler Probe Specifications
Frequency Diameter Models
MHZ mm in PH
2.25 6 0.25 DL-2.25P6-H
13 0.50 DL-2.25P13-H
3.5 6 0.25 DL-3.5P6-H
5 5 0.20 DL-5P5-H
6 0.25 DL-5P6-H
13 0.50 DL-5P13-H
10 3 0.125 DL-10P3-H
5 0.20 DL-10P5-H
6 0.25 DL-10P6-H
13 0.50 DL-10P13-H
15 5 0.20 DL-15P5-H
6 0.25 DL-15P6-H
20 3 0.125 DL-20P3-H
Delay Line Specification

Doppler Delay Line Specifications
Models Length Specification
mm in mm in
DL3-5.5 5.5 0.22 3 0.125
DL6-9.5 9.5 0.37 5 0.20
6 0.25
DL6-12.7 12.7 0.50 5 0.20
6 0.25
DL-13-9.5 9.5 0.37 13 0.50
DL13-12.7 12.7 0.50 13 0.50
Description Part # Saved Price Select Option Add to
DL-2.25P6-H, 2.25 MHz 6mm (0.25")Diameter Delay Line Probe UT-DP-DL-2.25P6-H
Request Pricing
DL-2.25P13-H, 2.25 MHz 13mm (0.50") Diameter Delay Line Probe UT-DP-DL-2.25P13-H
Request Pricing
DL-3.5P6-H, 3.5 MHz 6mm (0.25") Diameter Delay Line Probe UT-DP-DL-3.5P6-H
Request Pricing
DL-5P5-H, 5 MHz 5mm(0.20") Diameter Delay Line Probe UT-DP-DL-5P5-H
Request Pricing
DL-5P6-H, 5 MHz 6mm (0.25") Diameter Delay Line Probe UT-DP-DL-5P6-H
Request Pricing
DL-5P13-H, 5 MHz 13mm (0.50") Diameter Delay Line Probe UT-DP-DL-5P13-H
Request Pricing
DL-10P3-H, 10 MHz 3mm (0.125") Diameter Delay Line Probe UT-DP-DL-10P3-H
Request Pricing
DL-10P5-H, 10 MHz 5mm (0.20") Diameter Delay Line Probe UT-DP-DL-10P5-H
Request Pricing
DL-10P6-H, 10 MHz 6mm (0.25") Diameter Delay Line Probe UT-DP-DL-10P6-H
Request Pricing
DL-10P13-H, 10 MHz 13mm (0.50") Diameter Delay Line Probe UT-DP-DL-10P13-H
Request Pricing
DL15P5-H, 15 MHz 5mm (0.20") Diameter Delay Line Probe UT-DP-DL15P5-H
Request Pricing
DL15P6-H, 15 MHz 6mm (0.25") Diameter Delay Line Probe UT-DP-DL15P6-H
Request Pricing
DL20P3-H, 20 MHz 3mm (0.125") Diameter Delay Line Probe UT-DP-DL20P3-H
Request Pricing
