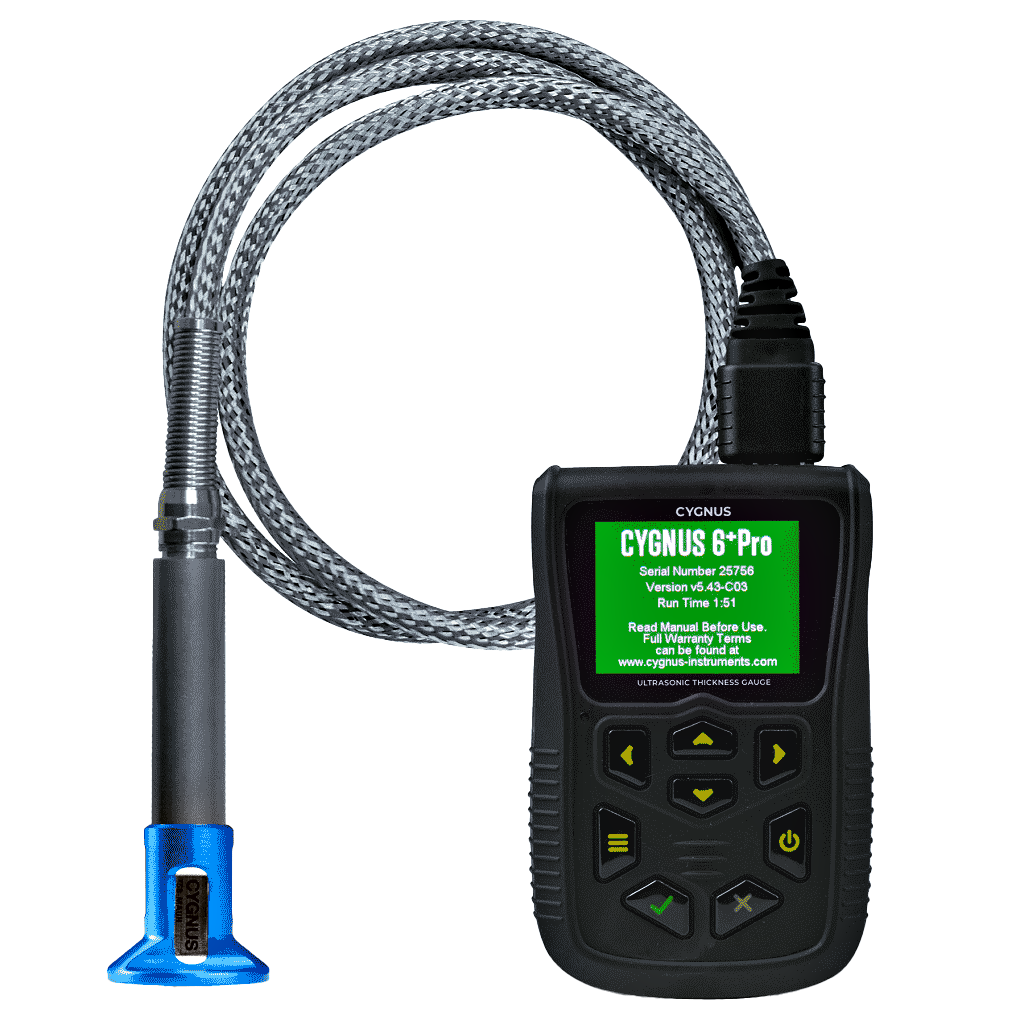

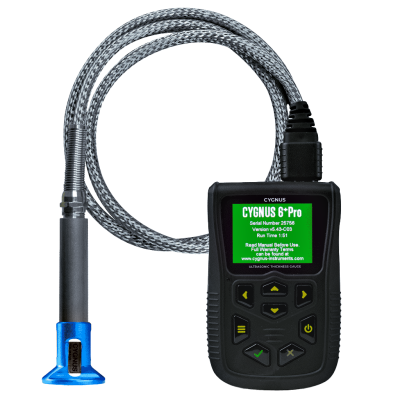

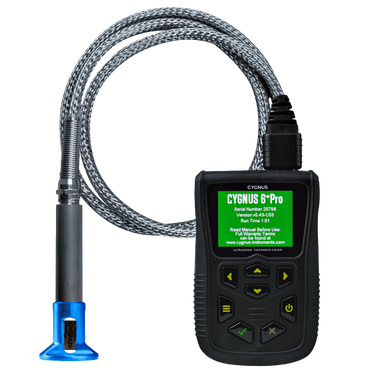

The Cygnus 6+ Pro Ultrasonic Thickness Gauge is the top-tier model in the Cygnus handheld range, combining advanced ultrasonic functionality with unmatched durability and precision. Designed for professional inspectors, it features Multiple-Echo, Echo-Echo, and Single-Echo measurement modes for thru-coating and corroded metal applications. The 6+ Pro offers dual LCDs (front and end-mounted), A-Scan and B-Scan displays, temperature compensation, and Bluetooth data transfer. Its comprehensive data logging system supports linear, 2D grid, and radial logging for complex inspection surveys. Built to MIL-STD-810G and sealed to IP67, the Cygnus 6+ Pro is engineered for demanding oil and gas, marine, energy, and process environments — even at high temperatures up to 572°F (300°C) when used with the optional high-temperature probe.
Multiple-Echo mode for accurate thru-coating measurements without removing paint or protective layers
Echo-Echo and Single-Echo modes for corroded, uncoated, or composite materials
Deep Coat function measures through coatings up to 0.8 inch (20 mm) thick
Temperature Compensation enables accurate high-temperature readings up to 572°F (300°C)

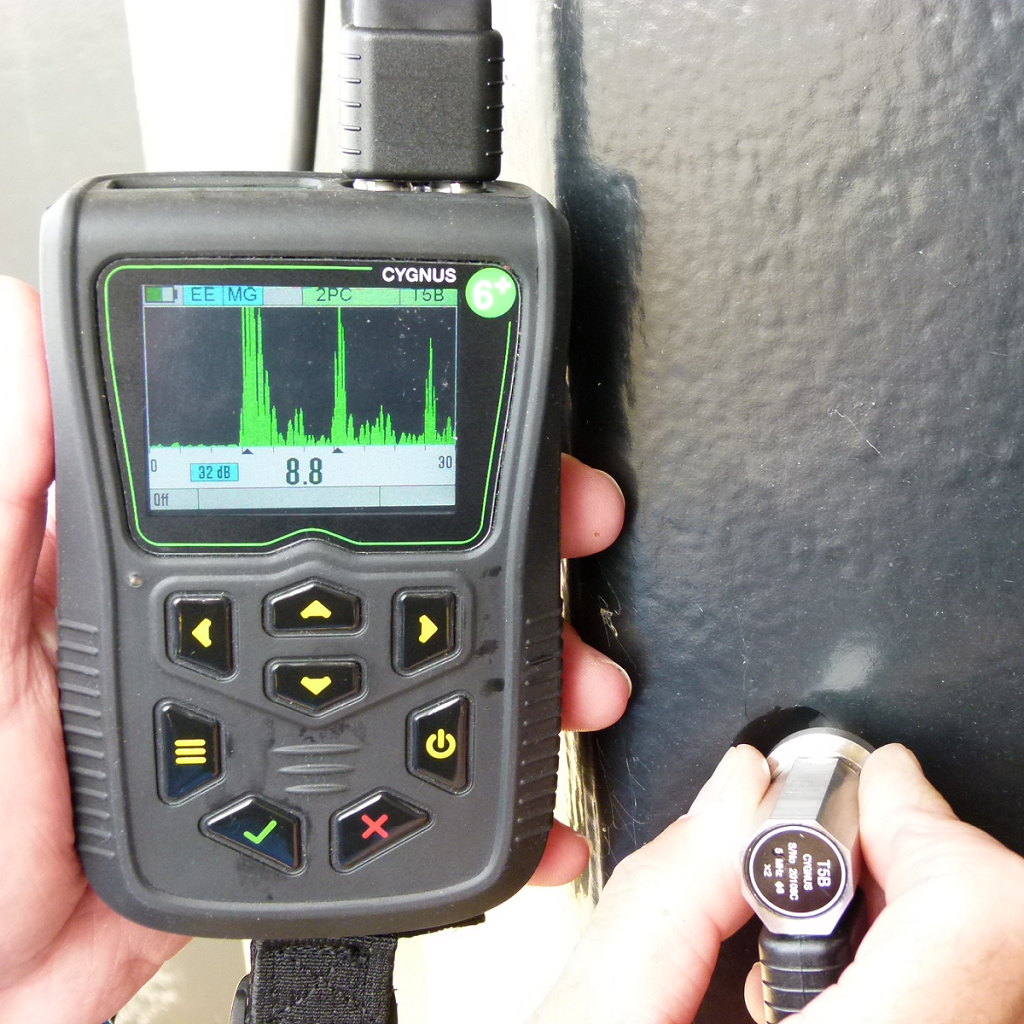

Live A-Scan and Rolling B-Scan displays for real-time verification
Comprehensive data logging with linear, grid, and radial templates
Dual LCD displays with sunlight-readable grayscale visibility
Bluetooth data transfer via CygLink software
Rugged IP67 housing, MIL-STD-810G tested, safe for Class I, Div 2 areas
High-temperature in-service thickness measurement for oil refineries and process plants without shutdown or isolation

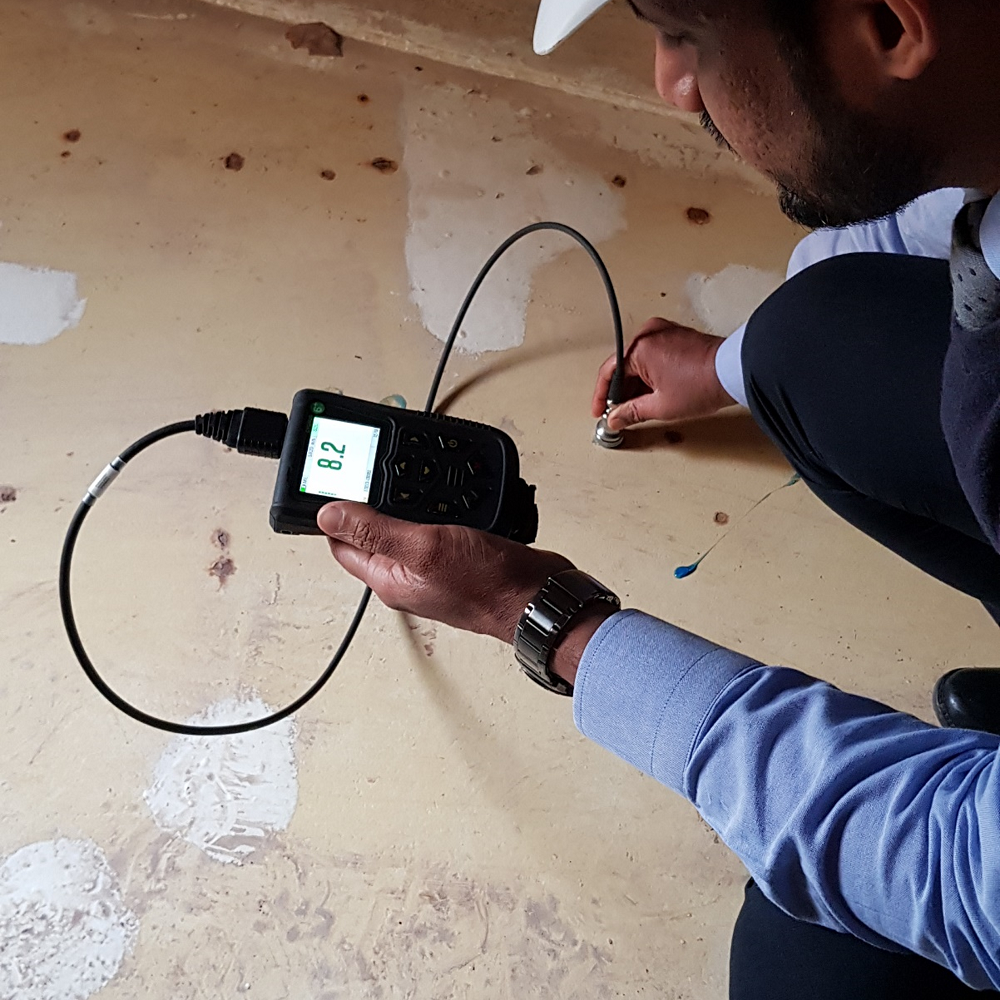

Marine and offshore surveys for hull, ballast tank, and superstructure inspection through protective coatings
Pipeline and tube corrosion monitoring in energy, chemical, and industrial facilities
Plant maintenance and civil engineering applications where precision and traceability are critical
Heavy industry inspection where documentation and data logging are required for compliance and recordkeeping
Ideal for use in hazardous or explosive atmospheres (Class I, Division 2 areas)
| Cygnus 6+ Pro Ultrasonic Thickness Gauge Technical Specifications | |
|---|---|
| Measuring Modes: | Multiple-Echo – uses 3 echoes to ignore coatings up to 0.8 inch (20 mm) thick | Echo-Echo – uses 2 echoes to ignore coatings up to 0.04 inch (1 mm) | Single-Echo – uses 1 echo |
| Materials: | Velocities from 0.0390 – 0.3543 in/μs (1,000 – 9,000 m/s) |
| Accuracy: | ±0.002 inch (±0.05 mm) in Multiple-Echo mode | ±0.004 inch (±0.1 mm) or 0.1% of thickness in Single-Echo and Echo-Echo modes |
| Resolution: | Multiple-Echo – 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm) | Single-Echo / Echo-Echo – 0.005 inch (0.1 mm) or 0.001 inch (0.01 mm) |
| Transducer Options: | Single crystal, Twin crystal, and High temperature transducers |
| Measurement Range in Steel: | 0.031 – 10 inch (0.8 – 250 mm), depending on transducer and configuration |
| Connector: | 2 × Lemo 00 |
| Power: | 3 × AA / R6 batteries |
| Battery Life: | Approx. 10 hours continuous measurement |
| Electronics: | Dual channel pulser |
| Display: | Front LCD 2.4 inch QVGA (1.85 × 1.46 inch / 47 × 37 mm); End-mounted LCD 1.01 × 0.25 inch (25.58 × 6.38 mm) |
| Size: | 3.3 × 5.1 × 1.4 inch (84 × 130 × 35 mm) |
| Weight: | 10.5 oz (300 g) including batteries |
| Operating Temperature: | 14°F to 122°F (–10°C to +50°C) |
| Data Logging: | 5,000 measurements and A-scans per record; max 100 records (soft limit); supports linear, grid, and radial patterns |
| Computer Software: | CygLink – remote logging, A-scan viewing, survey and PDF report generation, statistical and graphical analysis |
| Environmental Rating: |
IP67 | Safe operation in Class I, Division 2, Group D locations per NFPA 70 Article 500 MIL-STD-810G Method 501.6 (high temperature +131°F / +55°C) MIL-STD-810G Method 502.6 (low temperature –4°F / –20°C) MIL-STD-810G Method 507.6 (humidity 95%) MIL-STD-810G Method 512.6 (immersion 3.3 ft / 1 m for 30 minutes) |
| Shock and Impact: |
MIL-STD-810G Method 514.7 (vibration) MIL-STD-810G Method 516.7 (shock 20 g) MIL-STD-810G Method 516.7 (transit drop 4 ft / 1.22 m) |
| Standards: | Designed for EN 15317 |
| Compliance: | CE, UKCA, RoHS |
| Warranty: | 3 years on gauge and 6 months on probes |
