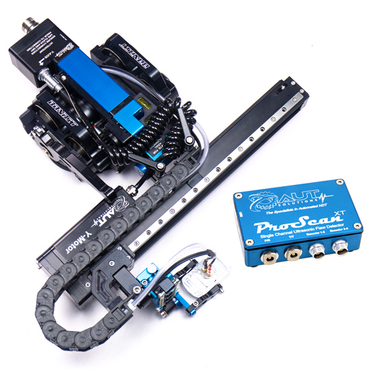

AUT Tank & Pipe Corrosion Scanning & Mapping Kit

Powerful & Portable

This fully integrated system combines the power of the ProScanXT Flaw Detector and Bandit Dual Axis Automated Scanner with a fully featured Corrosion Mapping Kit and Corrosion Mapping Acquisition Turn-Key Solution. The Bandit can raster scan up to 30″ per second and is capable of scanning from 2″ diameter pipe to flat surfaces, and 6” diameter in the axial direction. It's modular design means switching arms or motors takes only a few minutes and can be done in the field. The ProScanXT offers a USB-powered single-channel high-speed acquisition system with advanced ultrasonic tooling and visualizations. Powerful software includes A-scan, B-scan, C-scan, 3D and new 4D displays specifically designed for Corrosion Mapping.

Features

Bandit Scanner

• Dual Axis, Automated Corrosion Mapping
• Fast - X: 6”/sec – Y: 30”/sec
• Modular Design - Easy to change configurations or parts
• Lightweight - 10.5 lbs.
• Low profile - 3.125″ H
• Portable - Complete system, including the compact motor controller and umbilical, is easily transported using only 1 case
• Practical - Circumferential O.D. Scans: 2″+
• Strong Magnetic Wheels allow vertical climbing
• Advanced flexible drive for Axial scanning from 6″+
• Rugged - Easy placement and removal with magnet release lever
• Temp - Can be used at 300 °F or higher (Temperatures greater than 300 °F require duty cycling)

ProScanXT Flaw Detector

• Single-Channel Ultrasonic Flaw Detector with 2 Axis Encoding
• A-scan, B-scan, C-scan, 3D & 4D displays
• Full Project Stitching – Can run smaller scan sizes for increased productivity then stitch scans for complete inspection view
• DAC Implementation
• Reporting – Data Export with Grid Control
• Statistics – Find minimum thickness fast
• Data Skewing for angle beam transducers and HIC inspection
• High end performance while remaining user-friendly and cost effective
• Analysis
  • Statistics, finds min. thickness with one mouse click
  • Data exports to Excel with scan increment control
  • Screen capture
  • Image smoothing and hide NRI features
