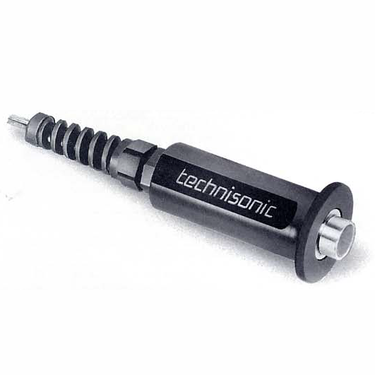

OverviewThe Removable Bell Housing Transducer (DRB) is offered in both ambient and high temperature styles which operate up to 550 °F. This transducer is designed to operate on all commercially available flaw detectors and can also be ordered for many digital thickness gauges. A removable bell housing is provided for operator comfort.
Cable must be ordered separately. Please be sure to order Bell Housing Cables, which include a strain relief.
Technisonic offers a complete line of Dual Element Transducers suitable for inspection of materials at ambient or high temperature. These transducers are designed for the detection of near surface discontinuities or thin wall sections. Each transducer is actually two transducers constructed within a single stainless steel housing, electrically and acoustically isolated from each other. Each half is angled toward the other with one side acting as the transmitter and the other the receiver. This produces a better signal/noise ratio than can be achieved by single element transducers.
| Frequency | Ambient Temperature | High Temperature |
| 2.25 MHz | DRB-0203-GP | DRBHT-0203-GP |
| 5.0 MHz | DRB-0503-GP | DRBHT-0503-GP |
| Element Dimensions | .375" |
| Frequency (MHz) | 2.25, 5.0 |
| Contact Time |
10 Seconds @ 500 °F then cool to ambient temperature |
| Element | A | B | C | D |
| .375" | .52" | .25" | 1.35" | 2.40" |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
|
Technisonic Probe with Removable Bell Housing, 2.25 MHz x 3/8" diameter (specify type)
Model #
|
UT-TS-DRB-0203-GP-Master |
|
$525.00 | ||
|
Technisonic Probe with Removable Bell Housing, 5.0 MHz x 3/8" diameter (specify type)
Model #
|
UT-TS-DRB-0503-GP-Master |
|
$525.00 | ||
| Technisonic Dual Microdot - BNC Ultrasonic Cable, RG-174 (6 ft) | UT-TS-DMB-6 |
|
$77.00 | ||
