Technisonic Fingertip Removable Quick Change Probe

Technisonic Fingertip Removable Quick Change Probe

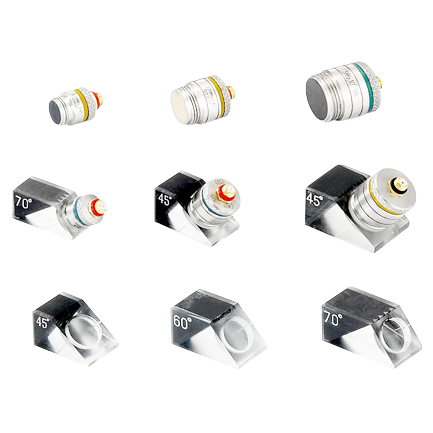

Threaded Transducer that Screws Directly into Technisonic Wedges (WFQ), Making Wedge Changes Fast and Easy

 Overview

Technisonic offers Fingertip Removable Angle Beam Quick Change Transducers (ABFQ) which feature a threaded transducer body that screws directly into Quick Change Wedges, making wedge changes fast and easy. This design insures positive coupling between the transducer and wedge. Their chief application is the inspection of welds for flaws with suitable orientation and are useable on all commercially available flaw detectors. Their small size is ideal for inspection in limited access areas, on curved surfaces or for reducing the approach distance to the test area.

Available in two series: General Purpose (GP) and Composite (CMP). Supplied with a microdot connector and features color coded labels to easily identify the frequency of the transducer.





General Purpose Series (GP)

Offers the best combination of sensitivity and resolution for the majority of contact flaw detection applications and recommended for the majority of pulse-echo applications. Typically having two to three full ring cycles, these transducers are tuned to provide the best balance between gain and resolution for general purpose testing, with a bandwidth of 30% to 60% at -6 dB.

Composite Series (CMP)

This series features a piezocomposite element which results in transducers with greater sensitivity, increased signal-to-noise ratio, deeper penetration and better resolution, when used with Technisonic Wedges (WFQ), in highly attenuative materials and hard-to-penetrate materials such as austenitics, composites, plastics, etc. Typical bandwidths range from 50% to 100% at -6 dB.

Quick Change Wedges

Technisonic Quick Change Wedges are designed to get maximum sound energy into the test material while dissipating internal reflections into a highly attenuative material that is built into every Quick Change Wedge. Purchase Technisonic wedges below or click the button to view all Technisonic wedges.

 Technisonic Wedges

Technical Specifications

Quick Change Wedge (WFQ) Dimensions

Angle A B C
.250" Element Diameter
45° .45" .42" .80"
60° .45" .47" .90"
70° .45" .48" 1.00"
90° .45" .50" .95"
.375" Element Diameter
45° .60" .51" .97"
60° .60" .57" 1.14"
70° .60" .60" 1.25"
90° .60" .70" 1.15"
.500" Element Diameter
45° .75" .58" 1.15"
60° .75" .68" 1.35"
70° .75" .71" 1.45"
90° .75" .75" 1.39"

Purchasing Details

General Purpose Fingertip Removable Angle Beam Quick Change Probes (ABFQ)

Frequency Element Diameter
  .250" .375" .500"
1.0 MHz - - ABFQ-0104-GP
2.25 MHz ABFQ-0202-GP ABFQ-0203-GP ABFQ-0204-GP
3.5 MHz ABFQ-0302-GP ABFQ-0303-GP ABFQ-0304-GP
5.0 MHz ABFQ-0502-GP ABFQ-0503-GP ABFQ-0504-GP
10.0 MHz ABFQ-1002-GP ABFQ-1003-GP ABFQ-1004-GP
Composite Series Fingertip Removable Angle Beam Quick Change Probes (ABFQ)

Frequency Element Diameter
  .250" .375" .500"
1.0 MHz - - ABFQ-0104-CMP
1.5 MHz - ABFQ-1.503-CMP ABFQ-1.504-CMP
2.25 MHz ABFQ-0202-CMP ABFQ-0203-CMP ABFQ-0204-CMP
3.5 MHz ABFQ-0302-CMP ABFQ-0303-CMP ABFQ-0304-CMP
5.0 MHz ABFQ-0502-CMP ABFQ-0503-CMP ABFQ-0504-CMP
Quick Change Wedges (WFQ)

Element Diameter Effective Angle in Steel*
  45° 60° 70° 90°
.250" WFQ-02-45 WFQ-02-60 WFQ-02-70 WFQ-02-90
.375" WFQ-03-45 WFQ-03-60 WFQ-03-70 WFQ-03-90
.500" WFQ-04-45 WFQ-04-60 WFQ-04-70 WFQ-04-90

*Refracted Angle as Measured @ 5 MHz

  • Special angles or curved wedges available upon request
  • Wedges with short exit points (WFQSE) available on request
  • High temperature wedges available upon request
Description Part # Saved Price Select Option Add to

Probes
Technisonic General Purpose Fingertip Removable Quick Change Probe, 1 MHz x 1/2", MD-Top UT-TS-ABFQ-0104-GP
$380.00
Technisonic Composite Fingertip Removable Quick Change Probe, 1 MHz x 1/2", MD-Top UT-TS-ABFQ-0104-CMP
$395.00
Technisonic General Purpose Fingertip Removable Quick Change Probe, 2.25 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-0200-GP-Master
$375.00
Technisonic Composite Fingertip Removable Quick Change Probe, 2.25 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-0200-CMP-Master
$395.00
Technisonic General Purpose Fingertip Removable Quick Change Probe, 3.5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-0300-GP-Master
$370.00
Technisonic Composite Fingertip Removable Quick Change Probe, 3.5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-0300-CMP-Master
$395.00
Technisonic General Purpose Fingertip Removable Quick Change Probe, 5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-0500-GP-Master
$370.00
Technisonic Composite Fingertip Removable Quick Change Probe, 5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-0500-CMP-Master
$395.00
Technisonic General Purpose Fingertip Removable Quick Change Probe, 10 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFQ-1000-GP-Master
$415.00

Wedges
Technisonic Quick Change Fingertip Wedge, 30 Degree (specify diameter)
Model #
UT-TS-WFQ-00-30-Master
$53.00
Technisonic Quick Change Fingertip Wedge, 45 Degree (specify diameter)
Model #
UT-TS-WFQ-00-45-Master
$53.00
Technisonic Quick Change Fingertip Wedge, 60 Degree (specify diameter)
Model #
UT-TS-WFQ-00-60-Master
$53.00
Technisonic, Quick Change Fingertip Wedge, 70 Degree (specify diameter)
Model #
UT-TS-WFQ-00-70-Master
$53.00
Technisonic Quick Change Fingertip Wedge, 90 Degree (specify diameter)
Model #
UT-TS-WFQSE-00-90-Master
$84.00
