Technisonic Fingertip Removeable Angle Beam Probe

Technisonic Fingertip Removeable Angle Beam Probe

Features a Captive Screw Design. Designed for Limited Areas, Curved Surfaces and Reducing Approach Distance

 Durable, Captive Screw Design

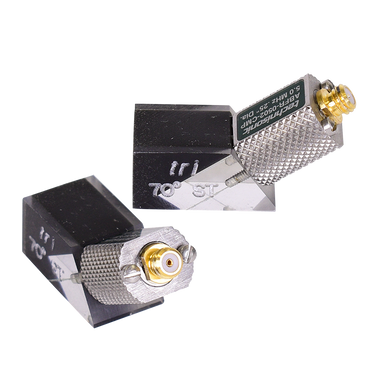

Technisonic offers Fingertip Removable Angle Beam Transducers (ABFR) that feature a captive screw design, eliminating the problem of lost screws. They are designed for the inspection of limited access areas, on curved surfaces and for reducing the approach distance to the rest area. Their chief application is for weld inspection or flaw detection of suitably oriented flaws, and are useable on all commercially available flaw detectors. Stainless steel housings provide rugged dependability, and they also feature an acoustically matched epoxy lens to insure optimum performance. A knurled surface provides a very comfortable non-slip grip.

Available in two series: General Purpose (GP) and Composite (CMP). Supplied with a microdot connector and features color coded labels to easily identify the frequency of the transducer.

Fingertip Removable Angle Beam Transducers have a 1-64 screw size.



General Purpose Series (GP)

Offers the best combination of sensitivity and resolution for the majority of contact flaw detection applications and recommended for the majority of pulse-echo applications. Typically having two to three full ring cycles, these transducers are tuned to provide the best balance between gain and resolution for general purpose testing, with a bandwidth of 30% to 60% at -6 dB.

Composite Series (CMP)

This series features a piezocomposite element which results in transducers with greater sensitivity, increased signal-to-noise ratio, deeper penetration and better resolution, when used with Technisonic Wedges (WFQ), in highly attenuative materials and hard-to-penetrate materials such as austenitics, composites, plastics, etc. Typical bandwidths range from 50% to 100% at -6 dB.



Fingertip Removable Wedges

Technisonic Removable Wedges are designed to get maximum sound energy into the test material while dissipating internal reflections into a highly attenuative material that is built into every wedge. Purchase Technisonic wedges below or click the button to view all Technisonic wedges.

Technisonic Wedges

Technical Specifications

Fingertip Removable Wedge (WF) Dimensions

Angle A B C
.250" Element Diameter
45° .50" .27" .60"
60° .50" .32" .69"
70° .50" .33" .75"
90° .50" .50" .90"
.500" Element Diameter
45° .75" .45" .95"
60° .75" .50" 1.05"
70° .75" .53" 1.17"
90° .75" .76" 1.56"

Purchasing Details

GP Fingertip Removable Angle Beam Probe (ABFR)

Frequency Element Diameter
  .250" .500"
1.0 MHz - ABFR-0104-GP
2.25 MHz ABFR-0202-GP ABFR-0204-GP
3.5 MHz ABFR-0302-GP ABFR-0304-GP
5.0 MHz ABFR-0502-GP ABFR-0504-GP
10.0 MHz ABFR-1002-GP ABFR-1004-GP
CMP Fingertip Removable Angle Beam Probe (ABFR)

Frequency Element Diameter
  .250" .500"
1.0 MHz - ABFR-0104-CMP
2.25 MHz ABFR-0202-CMP ABFR-0204-CMP
3.5 MHz ABFR-0302-CMP ABFR-0304-CMP
5.0 MHz ABFR-0502-CMP ABFR-0504-CMP
Fingertip Removable Wedge (WF), Standard and High Temp

Element Diameter Effective Angle in Steel*
Fingertip Wedges
  45° 60° 70° 90°
.250" WF-02-45 WF-02-60 WF-02-70 WF-02-90
.500" WF-04-45 WF-04-60 WF-04-70 WF-04-90
High Temperature Fingertip Wedges, 550° F
.250" WFHT-02-45 WFHT-02-60 WFHT-02-70 -
.500" WFHT-04-45 WFHT-04-60 WFHT-04-70 -

*Refracted angle as measured @ 5 MHz

  • Special angles or curved wedges available upon request
  • Cooling Cycle: Allow transducer to cool to ambient temperature after 10 seconds of contact time @ 350° F
Description Part # Saved Price Select Option Add to

Probes
Technisonic General Purpose Fingertip Removable Angle Beam Probe, 1 MHz x 1/2" Diameter, MD-Top UT-TS-ABFR-0104-GP
$425.00
Technisonic Composite Fingertip Removable Angle Beam Probe, 1 MHz x 1/2" Diameter, MD-Top UT-TS-ABFR-0104-CMP
$440.00
Technisonic General Purpose Fingertip Removable Angle Beam Probe, 2.25 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-0200-GP-Master
$415.00
Technisonc Composite Fingertip Removable Angle Beam Probe, 2.25 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-0200-CMP-Master
$440.00
Technisonic General Purpose Fingertip Removable Angle Beam Probe, 3.5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-0300-GP-Master
$415.00
Technisonic Composite Fingertip Removable Angle Beam Probe, 3.5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-0300-CMP-Master
$440.00
Technisonic General Purpose Fingertip Removable Angle Beam Probe, 5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-0500-GP-Master
$415.00
Technisonic Composite Fingertip Removable Angle Beam Probe, 5 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-0500-CMP-Master
$440.00
Technisonic General Purpose Fingertip Removable Angle Beam Probe, 10 MHz, MD-Top (specify diameter)
Model #
UT-TS-ABFR-1000-GP-Master
$450.00

Wedges
Technisonic Fingertip Removable Wedge, 30 Degree (specify diameter)
Model #
UT-TS-WF-00-30-Master
$59.00
Technisonic Fingertip Removable Wedge, 45 Degree (specify diameter)
Model #
UT-TS-WF-00-45-Master
$59.00
Technisonic Fingertip Removable Wedge, 60 Degree (specify diameter)
Model #
UT-TS-WF-00-60-Master
$59.00
Technisonic Fingertip Removable Wedge, 70 Degree (specify diameter)
Model #
UT-TS-WF-00-70-Master
$59.00
Technisonic Fingertip Removable Wedge, 90 Degree (specify diameter)
Model #
UT-TS-WFSE-00-90-Master
$84.00
