Technisonic Fingertip Potted Angle Beam Probes

Technisonic Fingertip Potted Angle Beam Probes

Small Size, Excellent Signal/Noise Ratios

 Integral Wedge Design

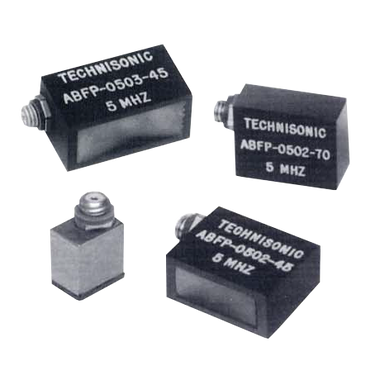

Technisonic's Fingertip Potted Angle Beam Transducers (ABFP) are best suited for the inspection of limited access areas with all commercially available flaw detectors. The integral wedge design ensures excellent signal/noise ratios and their small size allows testing of slightly curved or irregularly shaped surfaces.

Rear mounted microdot connectors are standard but top mounted microdots are available.



Microminiature Angle Beam Probes (MMAB)

Technisonic's Microminiature Angle Beam Probes (MMAB) are ideal for testing situations where access to the area of interest is extremely limited. A top mounted microdot connector is normally supplied but rear mounted connectors are available on special order.

Technical Specifications

Fingertip Potted Angle Beam Probe (ABFP) Dimensions

Element Size A B C
.25" sq. .36" .60" .74"
.37" sq .49" .60" 1.00"
Microminiature Angle Beam Transducers (MMAB) Dimensions

A B C
.25" .37" .37"

Purchasing Details

Fingertip Potted Angle Beam Probe (ABFP)

Frequency Effective Angle in Steel
Element Dimensions: .250" x .250"
  45° 60° 70° 90°
2.25 MHz ABFP-0202-45 ABFP-0202-60 ABFP-0202-70 ABFP-0202-90
5.0 MHz ABFP-0502-45 ABFP-0502-60 ABFP-0502-70 ABFP-0502-90
10.0 MHz ABFP-1002-45 ABFP-1002-60 ABFP-1002-70 ABFP-1002-90
Element Dimensions: .375" x .375"
2.25 MHz ABFP-0203-45 ABFP-0203-60 ABFP-0203-70 ABFP-0203-90
5.0 MHz ABFP-0503-45 ABFP-0503-60 ABFP-0503-70 ABFP-0503-90
10.0 MHz ABFP-1003-45 ABFP-1003-60 ABFP-1003-70 ABFP-1003-90



ABFP Series is available with composite element on request

Microminiature Angle Beam Transducers (MMAB)

Frequency Effective Angle in Steel
Element Dimensions: .187" x .187"
  45° 60° 70° 90°
5.0 MHz MMAB-0501-45 MMAB-0501-60 MMAB-0501-70 MMAB-0501-90
10.0 MHz MMAB-1001-45 MMAB-1001-60 MMAB-1001-70 MMAB-1001-90
Description Part # Saved Price Select Option Add to

FingerTip Potted Angle Beam Probes
Technisonic Fingertip Potted Angle Beam Probe, 2.25 MHz x 1/4" x 1/4" (specify angle)
Model #
UT-TS-ABFP-0202-Master
$390.00
Technisonic Fingertip Potted Angle Beam Probe, 2.25 MHz x 3/8" x 3/8" (specify angle)
Model #
UT-TS-ABFP-0203-Master
$420.00
Technisonic Fingertip Potted Angle Beam Probe, 5 MHz x 1/4" x 1/4" (specify angle)
Model #
UT-TS-ABFP-0502-Master
$390.00
Technisonic Fingertip Potted Angle Beam Probe, 5 MHz x 3/8" x 3/8" (specify angle)
Model #
UT-TS-ABFP-0503-Master
$420.00
Technisonic Fingertip Potted Angle Beam Probe, 10 MHz x 1/4" x 1/4" (specify angle)
Model #
UT-TS-ABFP-1002-Master
$425.00
Technisonic Fingertip Potted Angle Beam Probe, 10 MHz x 3/8" x 3/8" (specify angle)
Model #
UT-TS-ABFP-1003-Master
$460.00

Miniature Angle Beam Probes
Technisonic Miniature Angle Beam Probe, 5 MHz x 3/16" x 3/16" (specify angle)
Model #
UT-TS-MMAB-0501-Master
$385.00
Technisonic Miniature Angle Beam Probe, 10 MHz x 3/16" x 3/16" (specify angle)
Model #
UT-TS-MMAB-1001-Master
$425.00
