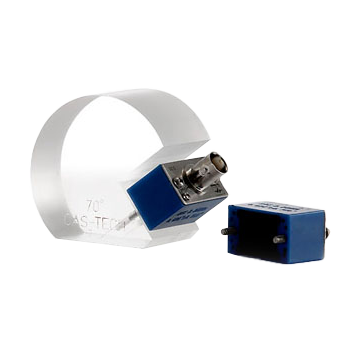

Meets AWS StandardsThe AWS Structural Welding Code Transducers are standard Angle Beam transducers (ABS) that meet or exceed all the requirements of the AWS Building & Bridge Inspection Codes when used with Technisonic AWS Wedges. Compatible with all commercially available flaw detectors and constructed within a stainless steel housing for durability and rugged dependability. An acoustically matched epoxy lens insures optimum performance and color coded labels make them easy to identify. When coupled to a Technisonic AWS Snail Wedge, these transducers provide excellent gain and signal/noise ratios.
Supplied with a BNC connector, other connectors are available on special order.
Angle Beam Transducers and Wedges have a 6-32 Screw Size, unless 4-40 is specifically requested.
| A | B | C | D |
| .87" | 1.25" | .75" | 1.00" |
| Frequency | Element Size | ||
| .625" x .625" | .625" x .750" | .750" x 750" | |
| 2.25 MHz | ABS-020505-AWS | ABS-020506-AWS | ABS-020606-AWS |
| Transducer Size | Effective Angle (Steel) | ||
| 45° | 60° | 70° | |
| .625" x .625" | WSN-AWS-45 | WSN-AWS-60 | WSN-AWS-70 |
| .625" x .750" | WSN-AWS-45 | WSN-AWS-60 | WSN-AWS-70 |
| .750" x .750" | WSN-AWS-45 | WSN-AWS-60 | WSN-AWS-70 |
