Spectro-UV Tritan 450 Series Blue Light LED Lamps

Spectro-UV Tritan 450 Series Blue Light LED Lamps

Lamp with Three Cool-Running, Ultra-High Flux 450 nm Blue Light LEDs with a Broad-Beam Configuration

Previously a Spectroline / Spectronics Product

 Wide Coverage, Compact Design

The perfect NDT Lamp when UV-A emissions are a concern! Features three cool-running, ultra-high flux 450 nm blue light LEDs with a broad-beam configuration. This powerful lamp provides a wider coverage area than conventional inspection lamps, while its compact head design allows access into areas inaccessible to larger inspection lamps. Ideal for most non-destructive testing applications.





Features

  • Nominal steady-state intensity of 9,500 μW/cm2 at 15 in (38 cm)
  • Large 5 in (13 cm) diameter coverage area at 15 in (38 cm), with a minimum intensity of 2,000 μW/cm2
  • Rubber bumper with patented thin-film dichroic lens filters out long-wave visible light
  • Electronic Intensity Stabilizer ensures consistent LED performance
  • Built-in fans keep LEDs cool to maintain optimum light output during extended use
  • Instant-on operation. Lamp reaches full intensity immediately
  • Rugged, ergonomic, angled lamp body provides safe, fatigue-free handling
  • Choice of standard 8 ft (2.4 m) or extra-long 20 ft (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional in-line power supply or industrial power supply with cord sets (sold seperately).
  • All power supplies in 120V, 230V, 240V or 100V models.
  • Includes yellow contrasting spectacles and soft carrying case
  • 'M' battery powered mobile version available

Technical Specifications

Tritan 450 Specifications

Spectro-UV Tritan 450 Technical Specifications
Nominal Steady-State Blue Light Intensity at 15" 9,500 μW/cm2
Blue Light Coverage Area at 15" at min 2,000 5 in (13 cm) Diameter
Light Source (3) Blue light LEDs
Lamp Style Pistol Grip
Lamp Head Diameter 3.25 in (8.25 cm)
Length 8 in (20.3 cm)
Weight 1 lb (454 g) with battery
Power Requirements TRI-450B: 100-120VAC
TRI-450MB: 100-120VAC/12VDC
(Also available in 230V & 240V versions)
Battery Pack

Type: 12V, NiMH (rechargeable)

Run time: 3.5 hours continuous
Charge time: 2 hours

Code Compliance

Tritan 450 Code Compliance

All Models Meet:

  • CEN/TR 16638

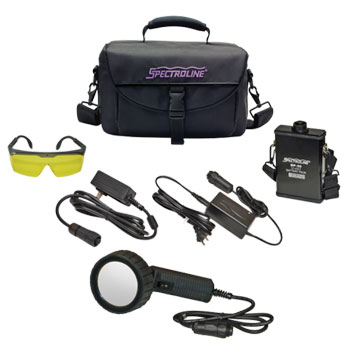

Kit Includes

Tritan 450 Kit Includes

  • Heavy-Duty 8 ft. AC Cord
  • FP-450 Dichroic Lens/Filter Protector
  • UVS-40 Spectacles
  • Soft Carrying Case

Product Literature

Description Part # Saved Price Select Option Add to
TRI-450B Includes: Three (3) 450nm Blue Light LEDs with Heavy-Duty 8 ft. AC Cord, FP-450 Dichroic Lens/Filter Protector, UVS-40 Spectacles and Soft Carrying Case (120V/60Hz) UV-SP-TRI-450B Request Pricing
TRI-450B/20 Includes: TRI-450B with Heavy-Duty 20 Foot AC Cord UV-SP-TRI-450B-20 Request Pricing
TRI-450MB Includes: TRI-450B with BP-30 Metal-Encased Rechargeable NiMH Battery Pack, BR-150A Smart AC Charger, PSA-250A AC/DC Adapter, FP-450 Dichroic Lens/Filter Protector, UVS-40 Fluorescence-Enhancing Yellow Spectacles, Soft Carrying Case(120V/60 UV-SP-TRI-450MB Request Pricing
