Spectronics PowerMAX 365 Series LED UV-A Panel Flood Lamp

This product has been discontinued. Click on the link for its replacement - Edge 13 LED UV-A Overhead Lamp

PowerMAX 365 Series flood lamps feature a panel of 16 powerful UV-A (365 nm) LEDs, specifically engineered for non-destructive testing applications. These versatile, stationary light sources can be installed overhead or in-line and can be connected together to provide an even wider coverage area.

The PowerMAX 365 Series lamps are available in five models to meet your specific inspection needs: High-Intensity and Standard Intensity versions, each with or without a UV filter. The three high intensity lamps produce a nominal steady-state UV-A intensity ranging from 6,500 to 8,000 µW/cm2 at 380 mm (15 in.), while the two standard intensity models produce a UV-A intensity ranging from 4,500 to 5,000 µW/cm2 (maximum). All five models have a large coverage area of 380mm x 150mm (15" x 6"), with a minimum UV-A intensity ranging from 1,200 to 2,000 µW/cm2.

Ideal for NDT Inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection, and many other applications requiring maximum uniformity of UV-A coverage over a large area. Each lamp meets ASTM international UV-A intensity and wavelength specifications for FPI and MPI. A certificate of compliance is supplied with each unit.

Features:

  • Low visible light emission - less than 2 ft. candles (22 lux)
  • Easily mountable for overhead inspection or in-line applications.
  • Built-in fans keep LEDs cool to maintain optimum light output during extended use.
  • Customizable! Multiple lamp units can be connected together longitudinally or back-to-back, for a larger coverage area to meet your specific inspection requirements.
  • Both High and Standard Intensity versions available with either a clear glass filter or a black light filter.

High Intensity Models:

    PowerMAX 365 Series UV-A LED panel flood lamps are available in three high-intensity models that are specifically designed for NDT inspection applications requiring high UV-A output.

    The PM-1600UVH is equipped with a clear glass filter and provides a nominal steady state UV-A intensity of 8,000 µW/cm2 at 15 inches (38 cm).

    The PM-1600BLH is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady-state UV-A intensity of 6,500 µW/cm2 at 15 inches (38 cm).

    The PM-1600HC is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady-state UV-A intensity of 7,000 µW/cm2 at 15 inches (38 cm). Fully compliant to ASTM E3022 for LED UV-A lamps.

    UV-A Profile

    Spectronics PM1600UVH

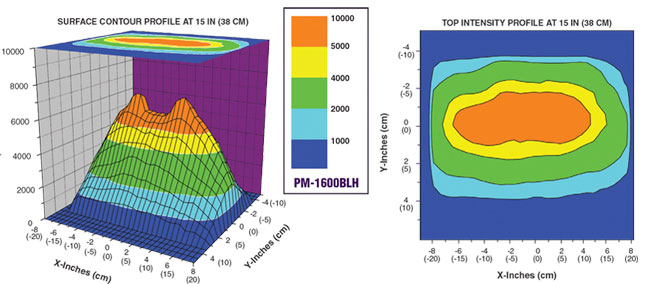

    spectronics pm1600blh

    pm-1600hc

    Standard Intensity Models

    PowerMAX 365 Series UV-A LED panel flood lamps are also available in two standard intensity models that are designed for NDT inspection applications requiring limited UV-A output. Both versions address aerospace industry concerns.

    The PM-1600UV is equipped with a clear glass filter and provides a nominal steady-state UV-A intensity of 4,500 µW/cm2 (maximum) at 15 inches (38 cm).

    The PM-1600SBLC is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady state UV-A intensity of less than 5,000 µW/cm2 at 15 inches (38 cm). It is built with themal cut-off circuitry which prevents the lamp from going out of compliance when internal temperatures exceed specifications. Certified to meet Rolls-Royce RRES 90061 Requirements.

    UV-A Profile

    pm1600uv

    pm-1600sblc-profile

    uv irradiance

    wavelengths with or without black light filter

    Easily Expandable

    connected longitudinallyconnected back to back

    For applications requiring extremely large coverage areas, the PowerMAX 365 can be quickly connected together longitudinally (left) or back-to-back (right) using customized, easy to install connecting plates and brackets.

    Dimensions: 5.5" x 13.75" x 6" (14cm x 35cm x 15cm) (W x L x H)

    Weight: 9 lbs. (4 kg)

    Power Requirement: AC Power (main AC power cord supplied with unit) (Available in 120V, 230V, 240V and 100V versions)

    Product Literature

    Description Part # Saved Price Add to
    PowerMAX365 PM-1600BLH, UV-A LED Panel Flood NDT Lamp,16 High-Intensity UV-A LEDs with BF-365PM UV-A Black Light Filter Assembly,127918 Particulate Air Filter, Heavy-Duty 8' AC Cord and UVS-30 Spectacles (100-120V/50-60Hz) UV-SP-PM1600BLH Request Pricing
    PowerMAX365 PM-1600HC, ASTM E3022 Code Compliant UV-A LED Panel Flood NDT Lamp,16 High-Intensity UV-A LEDs with BF-365PM UV-A Black Light Filter Assembly,127918 Particulate Air Filter, Heavy-Duty 8' AC Cord and UVS-30 Spectacles (100-120V/50-60Hz) UV-SP-PM1600HC Request Pricing
    PowerMAX365 PM-1600SBLC, RRES 90061 & ASTM E3022 Compliant UV-A LED Panel Flood Lamp,16 High-Intensity UV-A LEDs w/BF-365PM UV-A Black Light Filter Assembly,127918 Particulate Air Filter, Heavy-Duty 8'AC Cord & UVS-30 Spectacles(100-120V/50-60Hz) UV-SP-PM1600SBLC Request Pricing
    PowerMAX365 PM-1600UV, UV-A LED Panel Flood NDT Lamp,16 Standard UV-A LEDs with CF-100 Clear Glass Filter Assembly,127918 Particulate Air Filter, Heavy-Duty 8' AC Cord and UVS-30 Spectacles (100-120V/50-60Hz) UV-SP-PM1600UV Request Pricing
    PowerMAX365 PM-1600UVH, UV-A LED Panel Flood NDT Lamp,16 High-Intensity UV-A LEDs with CF-100 Clear Glass Filter Assembly,127918 Particulate Air Filter, Heavy-Duty 8' AC Cord and UVS-30 Spectacles(100-120V/50-60Hz) UV-SP-PM1600UVH Request Pricing
