SPECTRONICS OPTI-LUX 365


UV-A Inspection Flashlights

Affordable, Super-Compact, UV-A LED Flashlights Designed Specifically for NDT!

OPTI-LUX™ 365 Series inspection flashlights feature a powerful UV-A (365 nm) LED light source coupled with a rugged anodized lamp body. Lightweight and compact, they reduce user fatigue while providing an extremely uniform beam profile that surpasses those of more expensive lamps. Available in four models to suit your specific NDT needs: high-intensity or standard-intensity versions, each with or without an internal black light filter. All flashlights come with a certificate of compliance for both wavelength and output measurements.

Features:

  • Choice of nominal steady-state UV-A intensity of 10,000 μW/cm2 or maximum of 4,500 μW/cm² at 15 inches (38 cm)
  • Coverage area up to 2.5 inch (6.3 cm) diameter at 15 inches (38 cm), with minimum UV-A intensity of 2,000 μW/cm²
  • Anodized aluminum lamp body minimizes corrosion and stands up to years of heavy use
  • Instant-on operation; lamp reaches full intensity immediately!
  • Convenient on/off switch for easy, one-handed operation
  • 30,000-hour LED service life
  • Powered by one rechargeable lithium-ion battery with an extra battery included with the lamp. Each provides 4 hours of continuous inspection between charges.
  • Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI
  • Both high and standard-intensity versions are available with internal black light filter. Externally mounted black light filter with rubber bumper can be purchased as an accessory.
  • All models come with a certificate of compliance for both output and wavelength measurements

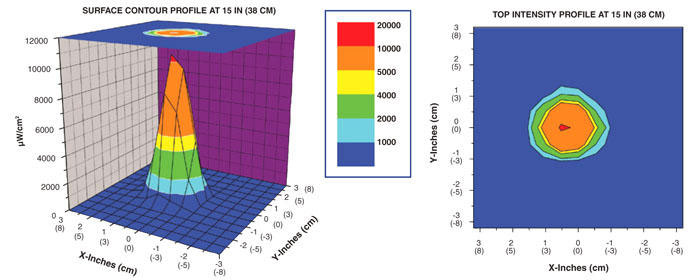

Two High-Intensity Models
OPTI-LUX™365 Series flashlights are available in two high-intensity models that are designed for NDT inspection applications requiring high UV-A output. The OLX-365 is equipped with a clear filter, while the OLX-365B comes
with an internal black light filter that reduces the output of wavelengths longer than 400 nm. Both versions provide a nominal steady-state UV-A intensity of 10,000 μW/cm²
at 15 inches (38 cm).

spectronics opti-lux

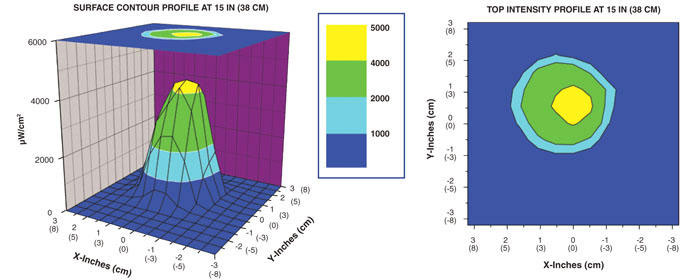

Two Standard-Intensity Models
OPTI-LUX™ 365 flashlights are also available in two standard-intensity models that are designed for inspection applications requiring limited UV-A output. The OLX-365FL is equipped with a clear filter, while the OLX-365BFL comes with an internal black light filter that reduces the output of wavelengths longer than 400 nm. These lamps also offer a larger coverage area compared to high-intensity models. Both versions provide a nominal steady-state UV-A intensity of 4,500 μW/cm² maximum at 15 inches (38 cm) to address aerospace industry concerns.


opt-lux

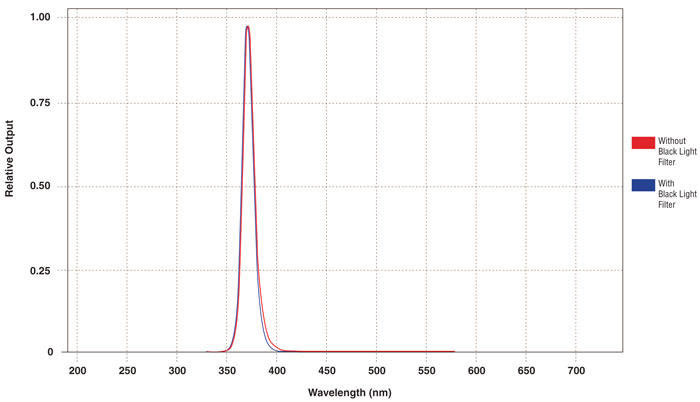

Normalized UV Irradiance

Typical wavelength output profile of OPTI-LUX 365
with and without internal black light filter, with peak at 365 nm.

Spectronics OPTI-LUX 365 image

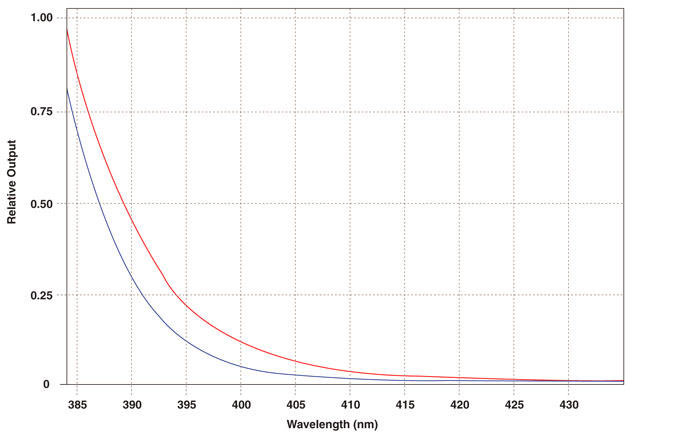

Select Wavelengths With and Without Internal Black Light Filter

As the wavelength of the OPTI-LUX 365 moves into the visible light range, the black light
filter significantly reduces the UV-A output of the lamp by as much as 50% at 400 nm.

Spectronics OPTI-LUX 365 image

Model

Nominal steadystate
UV-A (365 nm) intensity
at 15 inches (38 cm)?

Visible light
measurement

Diameter of UV-A
coverage area at
15 inches (38 cm)

OLX-365
High intensity,
with clear filter

10,000 μW/cm2

0.8 foot-candles
(8.6 lux)

2 inch (5.0 cm)

OLX-365B
High intensity,
with internal
black light filter

10,000 μW/cm2

0.4 foot-candles
(4.3 lux)

2 inch (5.0 cm)

OLX-365FL
Standard
intensity,
with clear filter

4,500 μW/cm2
maximum?

0.3 foot-candles
(3.2 lux)

2.5 inch (6.3 cm)

OLX-365BFL
Standard
intensity,
with internal
black light filter

4,500 μW/cm2
maximum?

0.2 foot-candles
(2.1 lux)

2.5 inch (6.3 cm)


Light Source:

UV-A LED

Lamp Style:

Cordless flashlight

Lamp Head Diameter:

1.25 in (3.2 cm)

Length:

5.9 in (15 cm)

Weight (w/battery):

4.6 oz (130 g)

Power Requirement:

One 3.7V 2200mA/Hr lithium-ion battery (rechargeable)

Run time:

4 hours (continuous)

Charge time:

8 hours

Charging cradle:

Two-battery capability with AC power cord.
Available in 120V, 230V, 240V and 100V versions.

?All UV-A intensity readings taken with Spectroline® AccuMAX™ Series meter, and
are factory set to the values shown
? To address aerospace industry concerns

Product Literature

Description Part # Saved Price Add to
OPTI-LUX Includes: High-Intensity, Super-Compact Rechargeable Flashlight with Internal Clear Filter, Battery Charging Cradle with AC/DC Cord Sets, Spare Lithium-ion Battery, Lanyard, Belt Holder, UV-Absorbing Spectacle and Small Carrying Case UV-SP-OLX-365 $560.00
OLX-365 (230V/50Hz with Euro Plug) (CE Approved) UV-SP-OLX-365/F $560.00
OLX-365B Includes: High Intensity, Super Compact Rechargeable Flashlight with Internal Black Light Filter, Battery Charging Cradle with AC/DC Cord Sets, Spare lithium-ion Battery, Lanyard, Belt Holder, UV-Absorbing Spectacles and Small Carrying Case UV-SP-OLX-365B $593.00
OLX-365B (230V/50Hz with Euro Plug) (CE Approved) UV-SP-OLX-365B/F $593.00
OLX-365FL Includes: Standard Intensity, Super Compact Rechargeable Flashlight with Internal Clear Filter, Battery Charging Cradle with AC/DC Cord Sets, Spare Lithium-Ion Battery, Lanyard, Belt Holder, UV-Absorbing Spectacles and Small Carrying Case UV-SP-OLX-365FL $560.00
OLX-365FL (230V/50Hz with Euro Plug) (CE Approved) UV-SP-OLX-365FL/F $560.00
OLX-365BFL Includes: Standard Intensity, Super Compact Rechargeable Flashlight with Internal Black Light Filter, Battery Charging Cradle with AC/DC Cord Sets, Spare Lithium-Ion Battery, Lanyard, Belt Holder, UV-Absorbing Spectacles, Small Carrying Ca UV-SP-OLX-365BFL $593.00
OLX-365BFL (230V/50Hz with Euro Plug) (CE Approved) UV-SP-OLX-365BFL/F $593.00
