Scan Tech CVm

Optically Encoded Hand Scanner

Scan Tech CVm

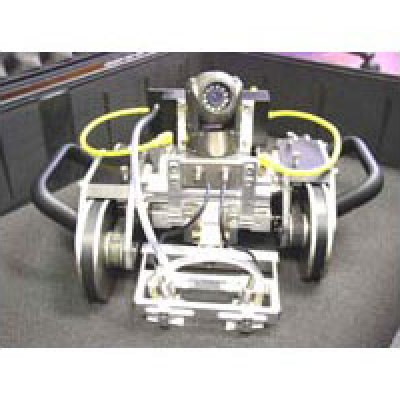

The ScanTech Instruments CVm remote visual inspection system, is a rugged light weight pan/tilt camera utilizing the proven C1 Spider drive train. Using joystick controls, the operator may concurrently drive the scanner and position the camera to points of interest.

Features:

- High Resolution Video

- Miniature Pan & Tilt

- Integrated Illumination

- Adjustable Contrast

- Hard Coated Aluminium

- Light Weight / Portable

- Industrial Applications

- Rugged Design

Specifications:

CAMERA:

- Type: Sony CCD chipset

- Focus: Manual

- Iris: Auto

- Sensitivity: .0003 lux

- Resolution: 420 lines

- Lens: 3.6mm micro

ILLUMINATION:

- Variable Intensity

- Mega Bright White LEDs

- 33,600mcd

- High Efficiency

- Low EMI

PAN & TILT:

- High Torque

- Rare Earth Motors

- All Metal Gears

- Range: 360° x 180°

- Ht: 3 5/8"

- Dia.: 1.97" (tilt up)

- Wt: 1.25 lbs

CONTROLLER:

- 110 / 120 VAC

- 12.5" x 12.25" x 5"

- 8 lbs.

Description	Part #	Saved	Price	Select Option	Add to
Scan Tech CVm	RV-SCT-CVM		Request Pricing
