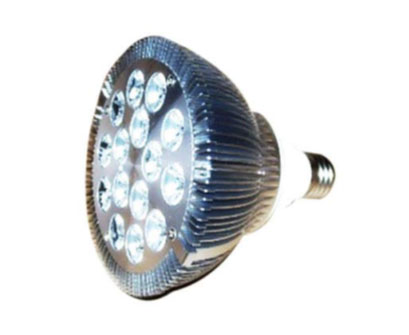

SI UV LED Bulb for 100W Mercury Vapor Lamps

SI UV LED Bulb for 100W Mercury Vapor Lamps

Replacement LED Black Light Bulb for Magnetic Particle Inspection

Features & Advantages

  • Reliable LED construction allows 35,000 hour operating life
  • 18 LEDs give smooth, wide dispersion angle
  • Better performance than mercury vapor lamps
  • Intensity is 4000 uW/cm2 at 15 inches (38cm)
  • No warm up time, instant on, instant off
  • Constant intensity throughout lamp life
  • Replaces Mercury Vapor Bulbs used by the Spectronics FC-100, Magnaflux ZB-100F and other similar models (Including: Osram Sylvania 68846, Magnaflux 507320, and Spectronics BLE-100S/M)
  • Fan-cooled lamps can be certified to ASTM-E-3022 by SI with the purchase of a replacement LED bulb (UV-SI-PAR38/15W/LED). See below for pricing.
  • NIST traceable certification and 1 Year warranty included
  • Compliance Meets ASTM 3022 and RRES90061 when used with appropriate filter glass and certified together with fan cooled power supply

Technical Specifications

Voltage

90 to 260 VAC, 50-60 Hz

Current Draw

0.5 Amps (@120 Volt input)

Bulb

100 Watts, Replacement Draws 50 Watts

Intensity

4,000 uW/cm2 at 15" (38cm)

Operating Temperature

32 - 104° F (0 - 40° C)

Weight

1.2 lbs (0.54 kg)

Compliance

Meets ASTM 3022 / RRES90061 when used with appropriate filter glass and certified together with fan cooled power supply

Product Literature

Description Part # Saved Price Select Option Add to
Replacement UV LED Bulb for 100W Mercury Vapor Lamps UV-SI-PAR38-15W-LED $375.00
