Ray-Check VersaTip

Ray-Check VersaTip

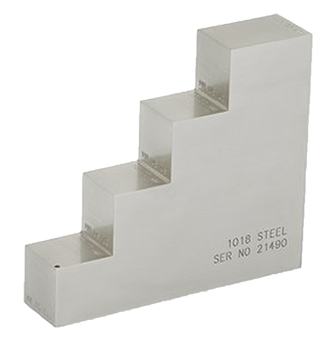

VersaTip Thickness Calibration Block

Thickness and linearity calibration

Inch Version:

This versatile block contains eight (8) steps. Set it down on one side and get the 1.0", 2.0", 3.0" and 4.0" steps. Then tip it over and get the 1.5", 2.5", 3.5" and 4.5" steps.

Metric Version:

Set this block down on one side and get the 25.0mm, 50.0mm, 75.0mm and 100.0mm steps. Then tip it over and you get the 37.5mm, 62.5mm, 87.5mm and 112.5mm steps.

Inch Step Face: 1.00" x 1.00"
Step thickness tolerance: ±0.002"
Metric Step Face: 25mm x 25mm
Step thickness tolerance: ±0.04mm

Standard Materials:

  • Carbon Steel 1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Hastelloy X
  • Inconel 600
  • Monel 400

Special Alloys: (Call for Price)

  • 4340 Steel
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • Hastelloy C278
  • 1018 Steel, Nickel Plated
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Aluminum
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium
  • Inconel 625

*All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.

(Dimensional Certification and Serialization is available at additional cost).

*If additional calibration is required, make sure to select (UT-RC-VTS-Cal) when adding items to the shopping cart.

Don't see what you're looking for? Please contact us.

Optional Hardwood Case is available.

      Description Part # Saved Price Select Option Add to
      VersaTip Calibration Block, 1018 Carbon Steel (0.5" Steps, 1.0"-4.5") UT-RC-VTS-1018 $755.00
      VersaTip Calibration Block, 7075 Aluminum (0.5" Steps, 1.0"-4.5") UT-RC-VTS-7075 $755.00
      VersaTip Calibration Block, 304 Stainless Steel (0.5" Steps, 1.0"-4.5") UT-RC-VTS-304 $1,240.00
      VersaTip Calibration Block, 6/4 Titanium (0.5" Steps, 1.0"-4.5") UT-RC-VTS-TI $1,555.00
      VersaTip Calibration Block, Hastelloy X (0.5" Steps, 1.0"-4.5") UT-RC-VTS-HX $1,555.00
      VersaTip Calibration Block, Inconel 600 (0.5" Steps, 1.0"-4.5") UT-RC-VTS-IN $1,555.00
      VersaTip Calibration Block, Monel 400 (0.5" Steps, 1.0"-4.5") UT-RC-VTS-ML $1,555.00
      VersaTip Calibration Block, Wood Case UT-RC-VTS-CASE $115.00
      VersaTip Calibration Block, Dimensional Certification and Serialization UT-RC-VTS-CAL $100.00
