Ray-Check Thin Step Block

Ray-Check Thin Step Block

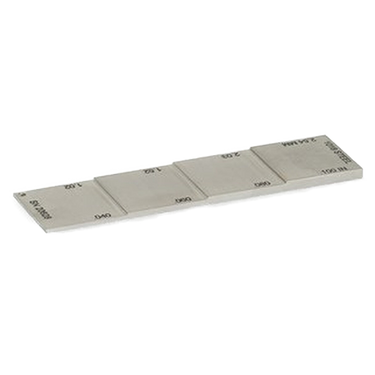

Ray-Check Thin Step Calibration Block for thickness and linearity calibration

Offered in 4-Step and 8-Step versions

  • The Thin 4-Step Calibration Block has steps of 0.040, 0.060, 0.080 and 0.100 inches.

  • The Thin 8-Step Calibration Block has steps of 0.030, 0.040, 0.050, 0.060, 0.070, 0.080, 0.090, and 0.100 inches.

  • Step Face - Inch Version: 3/4" x 3/4"


Standard Materials:

  • Carbon Steel A36/1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600
  • Monel 400
  • Hastelloy X

Special Materials: (Call for Price)

  • 4340 Steel
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Aluminum
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium
  • Inconel 600

*All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.

(Dimensional Certification and Serialization is available at additional cost).

    *If additional calibration is required, make sure to select (UT-RC-TS-CAL) when adding items to the shopping cart.

    Don't see what you're looking for? Please contact us.

    Optional Hardwood Case is available.

      Description Part # Saved Price Select Option Add to
      Thin 4-Step Calibration Block, 1018 Carbon Steel (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-CS $215.00
      Thin 4-Step Calibration Block, 7075 Aluminum (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-AL $215.00
      Thin 4-Step Calibration Block, 304 Stainless Steel (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-SS $380.00
      Thin 4-Step Calibration Block, Titanium 6/4 (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-TI $645.00
      Thin 4-Step Calibration Block, Hastelloy X (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-HX $645.00
      Thin 4- Step Calibration Block, Inconel 600 (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-IN600 $645.00
      Thin 4-Step Calibration Block, Monel 400 (0.040, 0.060, 0.080 and 0.100") UT-RC-4-TS-ML400 $645.00
      Thin 4-Step Calibration Block, Wood Case UT-RC-4-TS-CASE $40.00
      Thin 4-Step Calibration Block, Dimensional Certification and Serialization UT-RC-4-TS-CAL $50.00
      Thin 8-Step Calibration Block, 1018 Carbon Steel (.030 - 0.100") UT-RC-8-TS-CS $295.00
      Thin 8-Step Calibration Block, 7075 Aluminum (.030 - 0.100") UT-RC-8-TS-AL $295.00
      Thin 8-Step Calibration Block, 304 Stainless Steel (.030 - 0.100") UT-RC-8-TS-SS $525.00
      Thin 8-Step Calibration Block, Titanium 6/4 (.030 - 0.100") UT-RC-8-TS-TI $890.00
      Thin 8-Step Calibration Block, Hastelloy X (.030 - 0.100") UT-RC-8-TS-HX $890.00
      Thin 8-Step Calibration Block, Inconel 600 (.030 - 0.100") UT-RC-8-TS-IN600 $890.00
      Thin 8-Step Calibration Block, Monel 400 (.030 - 0.100") UT-RC-8-TS-ML400 $985.00
      Thin 8-Step Calibration Block (.030 - 0.100"), Wood Case UT-RC-8-TS-CASE $73.00
      Thin 8-Step Calibration Block (.030 - 0.100"), Dimensional Certification and Serialization UT-RC-8-TS-CAL $58.00
