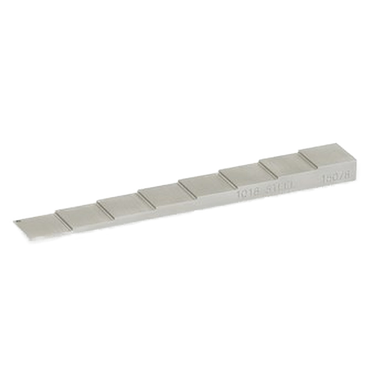

Ray-Check Metric 8-Step Block VW Type

Ray-Check Metric 8-Step Block VW Type

Metric 8-Step Calibration Block

Thickness and linearity calibration block

This block comes in thicknesses of 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm and 8.0mm.

Step Face: 15mm x 15mm

Materials:

  • 7075 Aluminum
  • 1018 Carbon Steel
  • 304 Stainless Steel
  • Titanium

Special Alloys:

  • 4340 Steel
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • Hastelloy C278
  • Hastelloy X
  • Monel 400
  • 1018 Steel, Nickel Plated
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Aluminum
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium
  • Inconel 600
  • Inconel 625

*All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.

(Dimensional Certification and Serialization is available at additional cost).

*If additional calibration is required, make sure to select (UT-RC-8S-Cal) when adding items to the shopping cart.


Don't see what you're looking for? Please contact us.

Optional Hardwood Case is available.

Description Part # Saved Price Select Option Add to
8-Step Metric Calibration Block, 1018 Carbon Steel (1.0 - 8.0 mm) UT-RC-8S1018-M $380.00
8-Step Metric Calibration Block, 7075 Aluminum (1.0 - 8.0 mm) UT-RC-8S7075-M $380.00
8-Step Metric Calibration Block, 304 Stainless Steel (1.0 - 8.0 mm) UT-RC-8S304-M $593.00
8-Step Metric Calibration Block, Titanium 6/4 (1.0 - 8.0 mm) UT-RC-8STI-M $755.00
8-Step Metric Calibration Block, Hastelloy X (1.0 - 8.0 mm) UT-RC-8S-HX-M $755.00
8-Step Metric Calibration Block, Inconel 600 (1.0 - 8.0 mm) UT-RC-8SIN600-M $755.00
Thin 8-Step Calibration Block, Monel 400 (.030 - 0.100") UT-RC-8-TS-ML400 $985.00
8-Step Metric Calibration Block (1.0 - 8.0 mm), Wood Case UT-RC-8S-M-CASE $73.00
8-Step Metric Calibration Block (1.0 - 8.0 mm), Dimensional Certification and Serialization UT-RC-8S-M-CAL $58.00
