Ray Check 5-Step Calibration Block

Ray Check 5-Step Calibration Block

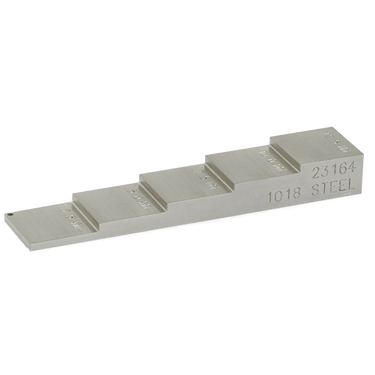

5-Step Calibration Block for thickness and linearity calibration

Inch Version:
0.750" square with thicknesses of steps at 0.100", 0.200", 0.300", 0.400" and 0.500".

ph-tool-5-step-calibration-block

Inch Version - Custom:
Custom square with thicknesses of steps at 0.050", 0.250", 0.500", 1.000" and 2.000" (C1)
Custom square with thicknesses of steps at 0.100", 0.250", 0.500", 0.750" and 1.000" (C2)
Custom square with thicknesses of steps at 0.250", 0.500", 0.750", 1.000" and 2.000" (C3)
Custom square with thicknesses of steps at 0.500", 0.750", 1.000", 1.500" and 2.000" (C4)
Custom square with thicknesses of steps at 0.500", 1.000", 1.500", 2.000" and 2.500" (C5)

custom=5-step-calibration-block'

Metric Versions:
Metric 5A (2.5, 5.0, 7.5, 10.0 and 12.5mm)
Metric 5B (2.0, 4.0, 6.0, 8.0 and 10.0 mm)

ph-tool metric-image

Step Face: 3/4" x 3/4"
Spec: ASTM E797

Standard Materials:

    • 1018 Carbon Steel / A36 Steel
    • 304 Stainless Steel
    • 4340 Steel
    • 7075-T6 Aluminum
    • Titanium
    • Hastelloy X
    • Hastelloy C276
    • Monel 400
    • Inconel 625
    • 316 Stainless Steel
    • 2024-T3 Aluminum
    • 6061-T6 Aluminum
    • 90/10 Copper Nickel
    • Magnesium

    Special Materials: (Call for price)

    • A387 Grade 11
    • A387 Grade 22
    • A387 Grade 91
    • A516 Grade 70
    • 321 Stainless Steel
    • 410 Stainless Steel
    • AL6XN
    • 2101 Duplex Stainless Steel
    • 2205 Duplex Stainless Steel
    • 6AL-4V Titanium
    • 7050-T7451 Aluminum
    • Brass
    • Brass Alloy 932
    • Copper 110
    • Cast Ductile Iron
    • Cast Gray Iron
    • Zirconium 702

      *All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.

      Dimensional/Calibration Certification and Serialization are available at additional cost. If needed, make sure to select UT-RC-5S-Cal when adding items to the shopping cart.

      Don't see what you're looking for? Please contact us.

      Optional Hardwood Case is available.

      Description Part # Saved Price Select Option Add to
      5-Step Calibration Block, 1018 Carbon Steel (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S1018
      		$170.00
      5-Step Calibration Block, 1018 Carbon Steel - Custom (0.050", 0.250", 0.500", 1.000", and 2.000") UT-RC-5S1018-C1
      		$490.00
      5-Step Calibration Block, 1018 Carbon Steel - Custom (0.100", 0.250", 0.500", 0.750", and 1.000") UT-RC-5S1018-C2
      		$330.00
      5-Step Calibration Block, 1018 Carbon Steel - Custom (0.250", 0.500", 0.750", 1.000", and 2.000") UT-RC-5S1018-C3
      		$485.00
      5-Step Calibration Block, 1018 Carbon Steel - Custom (0.500", 0.750", 1.000", 1.500", and 2.000") UT-RC-5S1018-C4
      		$485.00
      5-Step Calibration Block, 1018 Carbon Steel - Custom (0.500", 1.000", 1.500", 2.000", and 2.500") UT-RC-5S1018-C5
      		$540.00
      5-Step Calibration Block, 1018 Carbon Steel - Metric 5A (2.5, 5.0, 7.5, 10.0, and 12.5mm) UT-RC-5S1018-MA
      		$185.00
      5-Step Calibration Block, 1018 Carbon Steel - Metric 5B (2.0, 4.0, 6.0, 8.0, and 10.0 mm) UT-RC-5S1018-MB
      		$185.00
      5-Step Calibration Block, 304 Stainless Steel (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S304
      		$385.00
      5-Step Calibration Block, 304 Stainless Steel - Custom (0.050", 0.250", 0.500", 1.000", and 2.000") UT-RC-5S304-C1
      		$815.00
      5-Step Calibration Block, 304 Stainless Steel - Metric 5A (2.5, 5.0, 7.5, 10.0, and 12.5mm) UT-RC-5S304-MA
      		$425.00
      5-Step Calibration Block, 304 Stainless Steel - Metric 5B (2.0, 4.0, 6.0, 8.0 and, 10.0 mm) UT-RC-5S304-MB
      		$425.00
      5-Step Calibration Block, 4340 Steel (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S4340
      		$185.00
      5-Step Calibration Block, 7075 Aluminum (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S7075
      		$170.00
      5-Step Calibration Block, 7075 Aluminum - Custom (0.050", 0.250", 0.500", 1.000", and 2.000") UT-RC-5S7075-C1
      		$490.00
      5-Step Calibration Block, 7075 Aluminum - Metric 5A (2.5, 5.0, 7.5, 10.0, and 12.5mm) UT-RC-5S7075-MA
      		$185.00
      5-Step Calibration Block, 7075 Aluminum - Metric 5B (2.0, 4.0, 6.0, 8.0, and 10.0 mm) UT-RC-5S7075-MB
      		$185.00
      5-Step Calibration Block, Titanium 6/4 (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5STITANIUM
      		$430.00
      5-Step Calibration Block, Hastelloy X (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5SHX
      		$430.00
      5-Step Calibration Block, Hastelloy C276 (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5SHC276
      		$540.00
      5-Step Calibration Block, Monel 400 (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5SML400
      		$430.00
      5-Step Calibration Block, Inconel 600 (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5SIN600
      		$430.00
      5-Step Calibration Block, Inconel 625 (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5SIN625
      		$505.00
      5-Step Calibration Block, 316 Stainless Steel (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S316SS
      		$460.00
      5-Step Calibration Block, 2024 Aluminum (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S2024-AL
      		$205.00
      5-Step Calibration Block, 6061 Aluminum (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5S6061-AL
      		$205.00
      5-Step Calibration Block, Magnesium (0.100", 0.200", 0.300", 0.400", and 0.500") UT-RC-5SMG
      		$250.00
      5-Step Calibration Block, Cast Ductile Iron (0.100", 0.200", 0.300", 0.400", 0.500") UT-PHT-5SCDI
      		$827.00
      5-Step Calibration Block, Cast Gray Iron (0.100", 0.200", 0.300", 0.400", 0.500") UT-PHT-5SCGI
      		$803.00
      5 -Step Calibration Block, Wood Case UT-RC-5S-CASE
      		$43.00
      5-Step Calibration Block, Dimensional Calibration and Serialization UT-RC-5S-CAL
      		$50.00
