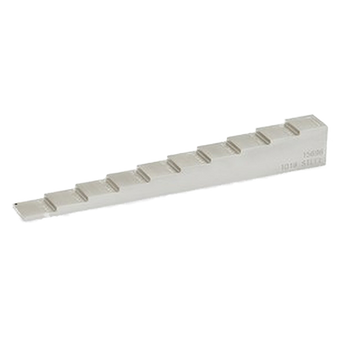

Ray-Check 10 Step Calibration Block

Ray-Check 10 Step Calibration Block

3/4" square steps

10 Step Calibration Block

Inch Version:

3/4" square steps at thicknesses of 0.100" to 1.000" in 0.100" increments

Metric Version:

Metric 1 Type:

The Metric 1 Type 10 Step Calibration Block has steps starting at 2.0mm to 20.0mm in 2.0mm increments.

Metric 2 Type:

The Metric 2 Type 10 Step Calibration Block has steps starting at 2.5mm to 25.0mm in 2.5mm increments.

Inch Step Face: 3/4" x 3/4"
Metric Step Face: 20mm x 20mm

Materials:

  • Steel
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium

Special Alloys: (Call for Price)

      • 4340 Steel
      • 316 Stainless Steel
      • 2024-T3 Aluminum
      • 6061-T6 Aluminum
      • 90/10 Copper Nickel
      • Hastelloy C276
      • Monel 400
      • Hastelloy X
      • 1018 Steel, Nickel Plated
      • A387 Grade 11
      • A387 Grade 22
      • A387 Grade 91
      • A516 Grade 70
      • 321 Stainless Steel
      • AL6XN
      • 2101 Duplex Stainless Steel
      • 2205 Duplex Stainless Steel
      • 6AL-4V Titanium
      • 7050-T7451 Aluminum
      • Brass
      • Brass Alloy 932
      • Copper 110
      • Cast Ductile Iron
      • Cast Gray Iron
      • Zirconium 702
      • Inconel 600
      • Inconel 625

      *All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.

      (Dimensional Certification and Serialization are available at additional cost).

      *If additional calibration is required, make sure to select (UT-RC-10S-Cal) when adding items to the shopping cart.

      Don't see what you're looking for? Please contact us.

      Optional Hardwood Case is available.

      Description Part # Saved Price Select Option Add to
      10 Step - 1018 Carbon Steel (Inch Version) UT-RC-10S1018 $380.00
      10 Step - 1018 Carbon Steel 2 - 20 mm (Metric 10A) UT-RC-10S1018-MA $430.00
      10 Step - 1018 Carbon Steel 2.5 - 25 mm (Metric 10B) UT-RC-10S1018-MB $430.00
      10 Step - 7075 Aluminum (Inch Version) UT-RC-10S7075 $380.00
      10 Step - 7075 Aluminum 2 - 20 mm (Metric 10A) UT-RC-10S7075-MA $430.00
      10 Step - 7075 Aluminum 2.5 - 25 mm (Metric 10B) UT-RC-10S7075-MB $430.00
      10 Step - 304 Stainless Steel (Inch Version) UT-RC-10S304 $755.00
      10 Step - 304 Stainless Steel 2 - 20 mm (Metric 10A) UT-RC-10S304-MA $865.00
      10 Step - 304 Stainless Steel 2.5 - 25 mm (Metric 10B) UT-RC-10S304-MB $865.00
      10 Step - Titanium (Inch Version) UT-RC-10S-TI $910.00
      10 Step - Titanium (Metric 10A) UT-RC-10S-TI-MA $1,080.00
      10 Step - Titanium 2.5 - 25 mm (Metric 10B) UT-RC-10S-TI-MB $1,080.00
      10 Step Inconel 600 (Inch Version) UT-RC-10SIN600 $910.00
      10 Step Block Wooden Case UT-RC-10S-CASE $110.00
      10 Step Calibration - includes Dimensional Certificate and Serialization UT-RC-10S-CAL $60.00
