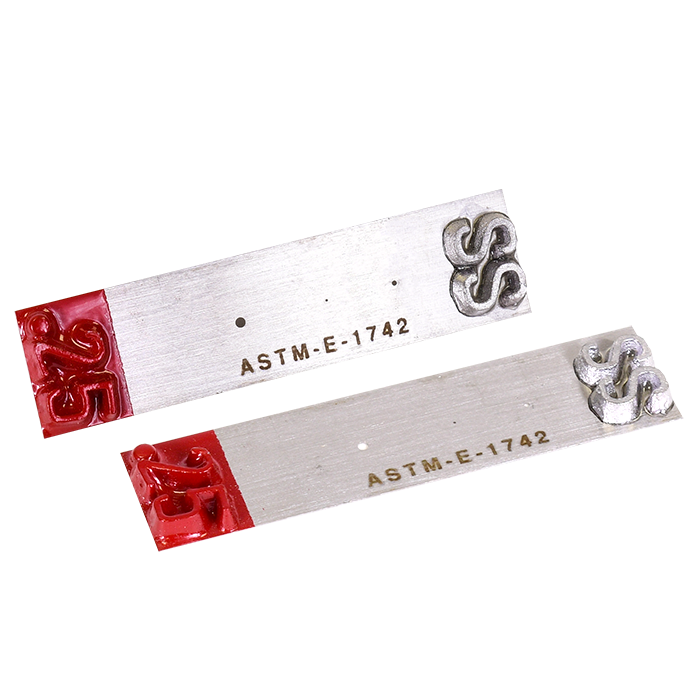

Mounting blocks are used when it is impractical to place the I.Q.I. directly on the object being radiographed. Most codes specify that a mounting block of the same material and thickness be placed, with the I.Q.I., adjacent to the part in such a manner that it will show clearly on the radiograph. Standard mounting blocks are supplied in sizes corresponding with ASTM E-1742 IQI sizes.

GENERAL DIMENSIONS:

  • Sizes up to 2 1/2", 1" X 2 1/4"
  • Sizes over 2 1/2", 1 1/4" X 3"

These dimensions allow at least 1/8" clearance on three sides of the IQI.

Standard mounting blocks are available in the following materials:

  • Steel (1018)
  • Aluminum (6061)
  • Magnesium (AZ31 & ZK60)
  • Aluminum (2014, 2024, 2219, 7075)
  • Stainless Steel
  • Copper
  • Brass
  • Inconel 600
  • Cupronickel
  • Phosphor-Bronze
  • Nickel
  • Monel
  • Hastelloy X & C
  • Inconel 625 & 718
  • Waspaloy (Up to .375)
  • Titanium (6/4)
  • Cobalt (Hanes 25 & 188)



ORDERING NOTES: MINIMUM ORDER SIZE: $75.00 - PRICES BELOW ARE PER BLOCK (specify individual sizes and quantities during checkout)

Mounting blocks are sized for ASTM E-1742 IQIs to allow at least 1/8” clearance on three sides of the IQI

Note: Serialized radiographic products are not returnable.

Product Literature

Description Part # Saved Price Select Option Add to
Mounting Block - Steel, Sizes Available (.005 - .50) Each RT-RCMB-F1 $24.50
Mounting Block - Steel, Sizes Available (.51 - 1.0) Each RT-RCMB-F2 $30.00
Mounting Block - Steel, Sizes Available (1.1 - 1.5) Each RT-RCMB-F3 $44.50
Mounting Block - Steel, Sizes Available (1.6 - 2.5) Each RT-RCMB-F4 $63.00
Mounting Block - Aluminum 6061, Sizes Available (.005 - .50) Each RT-RCMB-A1 $24.50
Mounting Block - Aluminum 6061, Sizes Available (.51 - 1.0) Each RT-RCMB-A2 $30.00
Mounting Block - Aluminum 6061, Sizes Available (1.1 - 1.5) Each RT-RCMB-A3 $44.50
Mounting Block - Aluminum 6061, Sizes Available (1.6 - 2.5) Each RT-RCMB-A4 $63.00
Mounting Block - Magnesium, Sizes Available (.005 - .50) Each RT-RCMB-M1 $30.00
Mounting Block - Magnesium, Sizes Available (.51 - 1.0) Each RT-RCMB-M2 $35.00
Mounting Block - Magnesium, Sizes Available (1.1 - 1.5) Each RT-RCMB-M3 $44.50
Mounting Block - Magnesium, Sizes Available (1.6 - 2.5) Each RT-RCMB-M4 $63.00
Mounting Block - Aluminum 2014, Sizes Available (.005 - .50) Each RT-RCMB-A2014-1 $32.50
Mounting Block - Aluminum 2014, Sizes Available (.51 - 1.0) Each RT-RCMB-A2014-2 $38.50
Mounting Block - Aluminum 2014, Sizes Available (1.1 - 1.5) Each RT-RCMB-A2014-3 $58.00
Mounting Block - Aluminum 2014, Sizes Available (1.6 - 2.5) Each RT-RCMB-A2014-4 $100.00
Mounting Block - Aluminum 2024, Sizes Available (.005 - .50) Each RT-RCMB-A2024-1 $32.50
Mounting Block - Aluminum 2024, Sizes Available (.51 - 1.0) Each RT-RCMB-A2024-2 $38.50
Mounting Block - Aluminum 2024, Sizes Available (1.1 - 1.5) Each RT-RCMB-A2024-3 $58.00
Mounting Block - Aluminum 2024, Sizes Available (1.6 - 2.5) Each RT-RCMB-A2024-4 $100.00
Mounting Block - Aluminum 2219, Sizes Available (.005 - .50) Each RT-RCMB-A2219-1 $32.50
Mounting Block - Aluminum 2219, Sizes Available (.51 - 1.0) Each RT-RCMB-A2219-2 $38.50
Mounting Block - Aluminum 2219, Sizes Available (1.1 - 1.5) Each RT-RCMB-A2219-3 $58.00
Mounting Block - Aluminum 2219, Sizes Available (1.6 - 2.5) Each RT-RCMB-A2219-4 $100.00
Mounting Block - Aluminum 7075, Sizes Available (.005 - .50) Each RT-RCMB-A7075-1 $32.50
Mounting Block - Aluminum 7075, Sizes Available (.51 - 1.0) Each RT-RCMB-A7075-2 $38.50
Mounting Block - Aluminum 7075, Sizes Available (1.1 - 1.5) Each RT-RCMB-A7075-3 $58.00
Mounting Block - Aluminum 7075, Sizes Available (1.6 - 2.5) Each RT-RCMB-A7075-4 $100.00
Mounting Block - Stainless Steel, Sizes Available (.005 - .50) Each RT-RCMB-S1 $37.00
Mounting Block - Stainless Steel, Sizes Available (.51 - 1.0) Each RT-RCMB-S2 $55.00
Mounting Block - Stainless Steel, Sizes Available (1.1 - 1.5) Each RT-RCMB-S3 $79.00
Mounting Block - Stainless Steel, Sizes Available (1.6 - 2.5) Each RT-RCMB-S4 $107.50
Mounting Block - Copper, Sizes Available (.005 - .50) Each RT-RCMB-C1 $37.00
Mounting Block - Copper, Sizes Available (.51 - 1.0) Each RT-RCMB-C2 $55.00
Mounting Block - Copper, Sizes Available (1.1 - 1.5) Each RT-RCMB-C3 $79.00
Mounting Block - Copper, Sizes Available (1.6 - 2.5) Each RT-RCMB-C4 $107.50
Mounting Block - Brass, Sizes Available (.005 - .50) Each RT-RCMB-B1 $37.00
Mounting Block - Brass, Sizes Available (.51 - 1.0) Each RT-RCMB-B2 $55.00
Mounting Block - Brass, Sizes Available (1.1 - 1.5) Each RT-RCMB-B3 $79.00
Mounting Block - Brass, Sizes Available (1.6 - 2.5) Each RT-RCMB-B4 $107.50
Mounting Block - Inconel 600, Sizes Available (.005 - .50) Each RT-RCMB-I1 $65.00
Mounting Block - Inconel 600, Sizes Available (.51 - 1.0) Each RT-RCMB-I2 $96.00
Mounting Block, Inconel 600, Sizes Available (1.1 - 1.5) Each RT-RCMB-I3 $138.00
Mounting Block - Inconel 600, Sizes Available (1.6 - 2.5) Each RT-RCMB-I4 $188.00
Mounting Block - Cupro-Nickel, Sizes Available (.005 - .50) Each RT-RCMB-CN1 $65.00
Mounting Block - Cupro-Nickel, Sizes Available (.51 - 1.0) Each RT-RCMB-CN2 $96.00
Mounting Block - Cupro-Nickel, Sizes Available (1.1 - 1.5) Each RT-RCMB-CN3 $138.00
Mounting Block - Cupro-Nickel, Sizes Available (1.6 - 2.5) Each RT-RCMB-CN4 $188.00
Mounting Block, Phosphor-Bronze, Sizes Available (.005 - .50) Each RT-RCMB-PBZ1 $65.00
Mounting Block, Phosphor-Bronze, Sizes Available (.51 - 1.0) Each RT-RCMB-PBZ2 $96.00
Mounting Block, Phosphor-Bronze, Sizes Available (1.1 - 1.5) Each RT-RCMB-PBZ3 $138.00
Mounting Block, Phosphor-Bronze, Sizes Available (1.6 - 2.5) Each RT-RCMB-PBZ4 $188.00
Mounting Block, Nickel, Sizes Available (.005 - .50) Each RT-RCMB-N1 $83.00
Mounting Block, Nickel, Sizes Available (.51 - 1.0) Each RT-RCMB-N2 $124.00
Mounting Block, Nickel, Sizes Available (1.1 - 1.5) Each RT-RCMB-N3 $177.50
Mounting Block, Nickel, Sizes Available (1.6 - 2.5) Each RT-RCMB-N4 $242.50
Mounting Block, Monel, Sizes Available (.005 - .50) Each RT-RCMB-ML1 $83.00
Mounting Block, Monel, Sizes Available (.51 - 1.0) Each RT-RCMB-ML2 $124.00
Mounting Block, Monel, Sizes Available (1.1 - 1.5) Each RT-RCMB-ML3 $177.50
Mounting Block, Monel, Sizes Available (1.6 - 2.5) Each RT-RCMB-ML4 $242.50
Mounting Block - Hastelloy X, Sizes Available (.005 - .50) Each RT-RCMB-HX1 $83.00
Mounting Block - Hastelloy X, Sizes Available (.51 - 1.0) Each RT-RCMB-HX2 $124.00
Mounting Block - Hastelloy X, Sizes Available (1.1 - 1.5) Each RT-RCMB-HX3 $177.50
Mounting Block - Hastelloy X, Sizes Available (1.6 - 2.5) Each RT-RCMB-HX4 $242.50
Mounting Block, Hastelloy C, Sizes Available (.005 - .50) Each RT-RCMB-HC1 $83.00
Mounting Block, Hastelloy C, Sizes Available (.51 - 1.0) Each RT-RCMB-HC2 $124.00
Mounting Block, Hastelloy C, Sizes Available (1.1 - 1.5) Each RT-RCMB-HC3 $177.50
Mounting Block, Hastelloy C, Sizes Available (1.6 - 2.5) Each RT-RCMB-HC4 $242.50
Mounting Block, Inconel 625 & 718, Sizes Available (.005 - .50) Each RT-RCMB-IN1 $83.00
Mounting Block, Inconel 625 & 718, Sizes Available (.51 - 1.0) Each RT-RCMB-IN2 $124.00
Mounting Block, Inconel 625 & 718, Sizes Available (1.1 - 1.5) Each RT-RCMB-IN3 $177.50
Mounting Block, Inconel 625 & 718, Sizes Available (1.6 - 2.5) Each RT-RCMB-IN4 $242.50
Mounting Block, Waspaloy, Sizes Available (.005 - .375) Each RT-RCMB-W1 $98.00
Mounting Block, Titanium 6/4, Sizes Available (.005 - 50) Each RT-RCMB-T1 $93.00
Mounting Block, Titanium 6/4, Sizes Available (.51 - 1.0) Each RT-RCMB-T2 $138.00
Mounting Block, Titanium 6/4, Sizes Available (1.1 - 1.5) Each RT-RCMB-T3 $198.00
Mounting Block, Titanium 6/4, Sizes Available (1.6 - 2.5) Each RT-RCMB-T4 $268.50
Mounting Block, Cobalt, Sizes Available (.005 - .50) Each RT-RCMB-CB1 $183.00
Mounting Block, Cobalt, Sizes Available (.51 - 1.0) Each RT-RCMB-CB2 $329.00
Mounting Block, Cobalt, Sizes Available (1.1 - 1.5) Each RT-RCMB-CB3 $418.00
Mounting Block, Cobalt, Sizes Available (1.6 - 2.5) Each RT-RCMB-CB4 $529.50
Mounting Block, Serialization and Calibration RT-RCMB-SERIALIZE-CAL $3.00
