Overview

This DR Phantom is a special design for Aerospace industries - turbine blade inspection. It features:

  • Step wedges with 7 steps - according to TAM
  • IQI plaques according to TAM and ASTM E1742
  • Duplex Wire Type IQI - ASTM E2002 / ISO 19232-5
  • BAM Snail
  • Made from the material used in the application or of the most stringent material i.e. Titanium and Inconel
  • Conforms to: TAM 140607, TAM 142395, TAM 142937, TAM 142398, ASTM E1742

Specifications

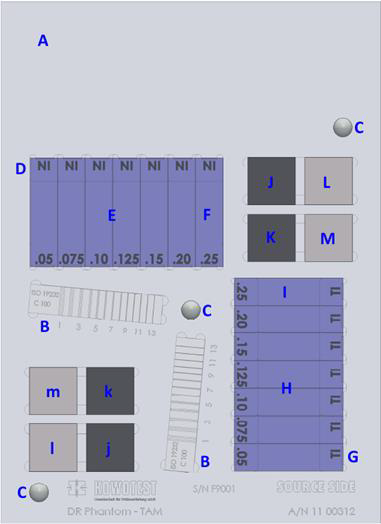

(Letters refer to the diagram on the right)

  Test Material Application
A Lucite Plate  Carrier Plate
B Duplex Wire Type IQI D13 Basic Spatial Resolution, Unsharpness
C Ball Tungsten Dimensional Calibration
D 7-Step Wedge Inconel Base for Hole-Type IQI
E Hole-Type IQI - IN acc. to TAM Hole-Type IQI acc. to TAM
F Hole-Type IQI - IN acc. to ASTM E Hole-Type IQI acc. to ASTM E
G 7-Step Wedge Titanium Base for Hole-Type IQI
H Hole-Type IQI - TI acc. to TAM Hole-Type IQI acc. to TAM
I Hole-Type IQI - TI acc. to ASTM E Hole-Type IQI acc. to ASTM E
J-j SNR Plate Inconel - Thin SNR - Signal Noise Ratio
K-k SNR Plate Inconel - Thick SNR - Signal Noise Ratio
L-l SNR Plate Titanium - Thin SNR - Signal Noise Ratio
M-m SNR Plate Titanium - Thick SNR - Signal Noise Ratio



Dimensions

10.8 x 7.9" (275 x 200 mm)

Holder for DR Phantom

Scope of Supply

  • DR Phantom TAM - TI, INC, 2x Duplex IQI D13, 8x SNR, 3x W Ball, 27.5x20 cm (11 00312)
  • Holder for DR Phantom TAM, POM (11 00313)
  • Manufacturer Declaration of Conformity and Dimensional Certification
