Warren NDT Flexible, Semi-Rigid, Rigid Film Holder

Warren NDT Flexible, Semi-Rigid, Rigid Film Holder

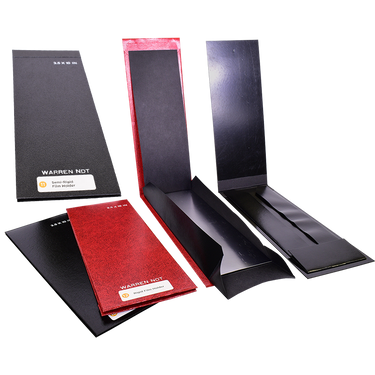

Variety of Film Holders

Warren NDT offers a variety of quality film holders with covers of varying material, flexibility and size. Each cover type has an inner film envelope made up of black shoe material for light tight protection and can hold film as well as lead screens. Each film holder is also available with or without lead backing and Velcro closures.

Flexible Film Holders

Blue or Black

The outer cover is made up of a tough vinyl impregnated fiber stock but flexible enough to contour around shapes. Available in blue or black to be specified when ordering. They are available with or without a lead backing and with or without Velcro closures. (Note: lead backing is not used as an intensifying screen, it is meant to prevent back scatter only.)

Semi-Rigid Film Holders

Black

The outer cover is made up of a 60 point ABS  black plastic and is ideal for heavy castings. Features a tape hinge. They are available with or without a lead backing and with or without Velcro closures. (Note: lead backing is not used as an intensifying screen, it is meant to prevent back scatter only.)

Rigid Film Holders

Red

The outer cover is made up of a base material of ABS plastic that is covered with a red vinyl type material and are ideal for heavy type castings. They are available with or without a lead backing and with or without Velcro closures. (Note: lead backing is not used as an intensifying screen, it is meant to prevent back scatter only.)

Ordering Details

When inquiring for a quote, please specify cover type, size, color (if applicable) and if you want lead backing and/or Velcro closures.

  • Company name can be imprinted on all Film Holders at no extra cost. There will be a one time charge for new plates and changes to existing plates
  • 10% discount on all orders of 100 or more pieces, with a minimum order of 10 identical units for the discount to apply
  • All orders are FOB Pittsburgh plus packaging and handling

Minimum order 10 identical units and $235.00 for Published Pricing.

Note: $12.00 Packaging / Handling fee per box shipped. Number of boxes to be determined at time of shipment.



Purchasing Guide

Standard Sizes

  • 70 mm x 10"
  • 70 mm x 14"
  • 70 mm x 17"
  • 3.5" x 10"
  • 3.5" x 17"
  • 4" x 10"
  • 4.5" x 10"
  • 4.5" x 17"
  • 5" x 7"
  • 7" x 17"
  • 8" x 10"
  • 10" x 12"
  • 11" x 14"
  • 14" x 17"
Description Part # Saved Price Select Option Add to
Warren NDT Flexible, Semi-Rigid and Rigid Film Holders RT-WA-1001 Request Pricing
