Kowotest TE 22PK Film Processor

Kowotest TE 22PK Film Processor

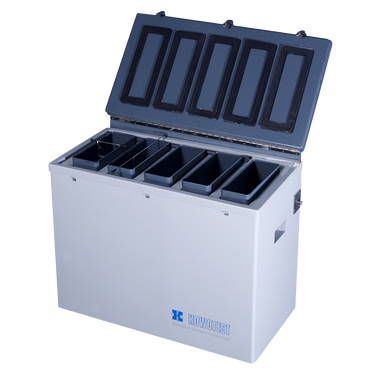

X-Ray Film Processor with 5 Removable Tanks Developer, Rinse, Fixer, Pre and Final Wash. Made in Germany

X-Ray Film Processing Unit

This processor is designed for manual processing of X-Ray films for the use in mobile laboratories. The outer waterproof tank contains five separately removeable processing tanks and is made of strong grey PVC material.

The tank has several optional accessories that enable users to build a system that best suits their mobile laboratory.  Click here to see more.

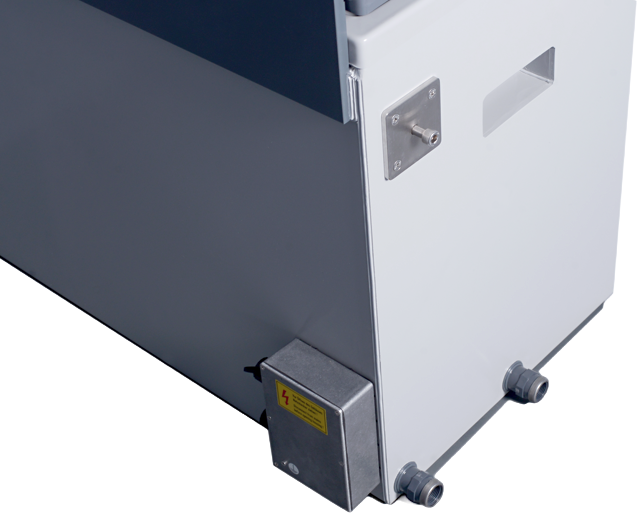

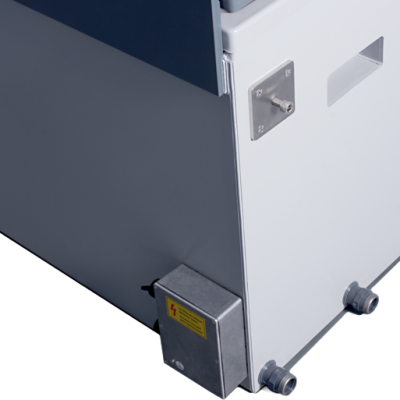

Tank Draining and Outlets

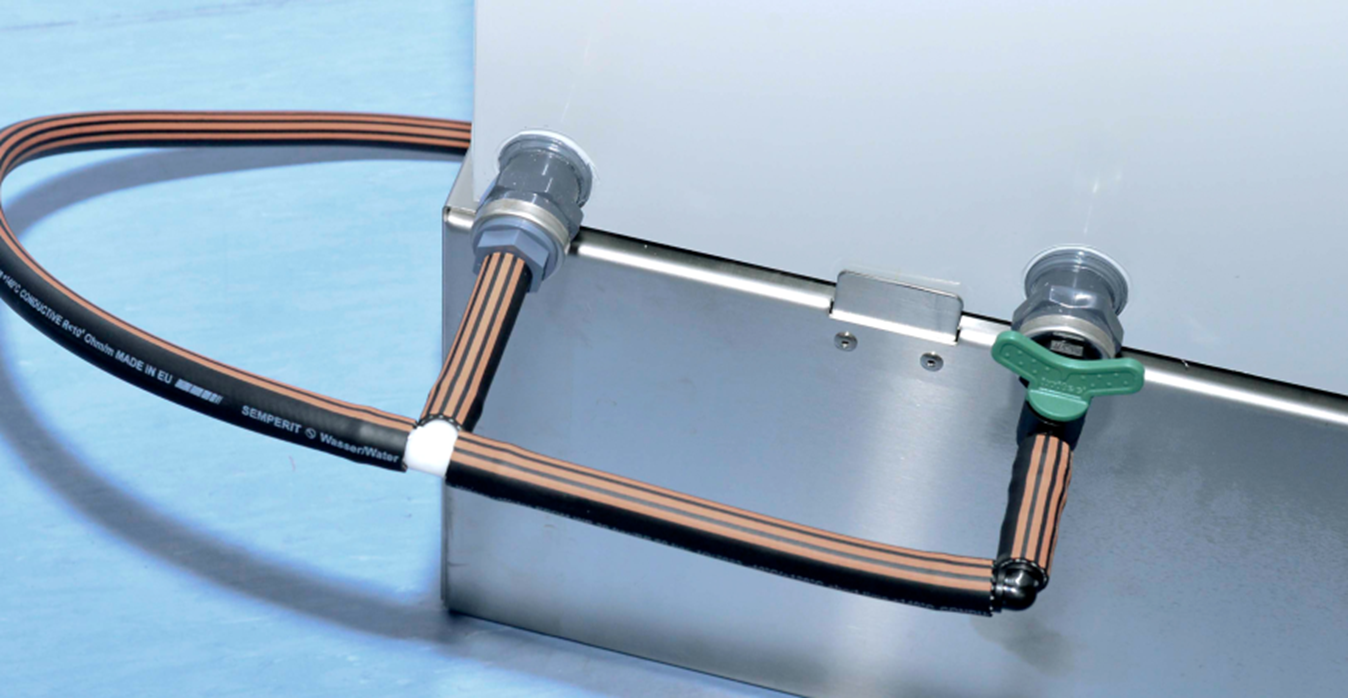

There is an outlet in the bottom of each developer tank which empties into the main housing tank. From there, the main housing tank can be emptied through outlets, which are attached to hoses. The outlets are opened and closed with the stopper puller. Please note: chemicals are not allowed to be dumped into local wastewater systems. They must be drained separately, or pumped off in tanks for proper disposal. For information regarding Silver Recovery while draining, please click here.

TE 22PK-H

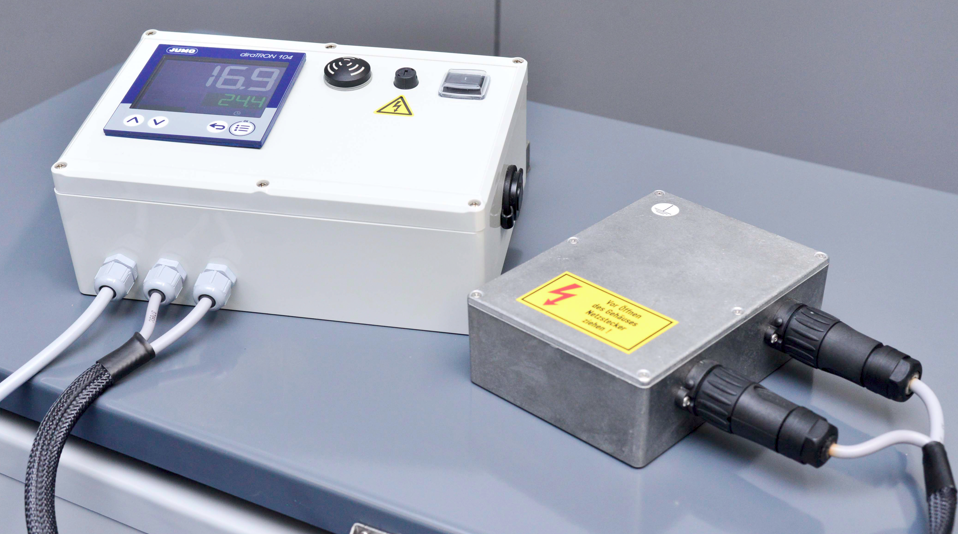

The TE 22PK-H features a built-in heater that controls and maintains developing temperatures, providing consistent inspection processes. It is the same as the standard TE 22PK Film Processor, with the addition of the circuit heater.

The circuit heater requires 230 V / 50 Hz of power, and can be made for 120 V / 60 Hz power requirements in the US. It is supplied with a control unit.

Optional Accessories

TE 22PK Accessories

RT-KT-12-30655

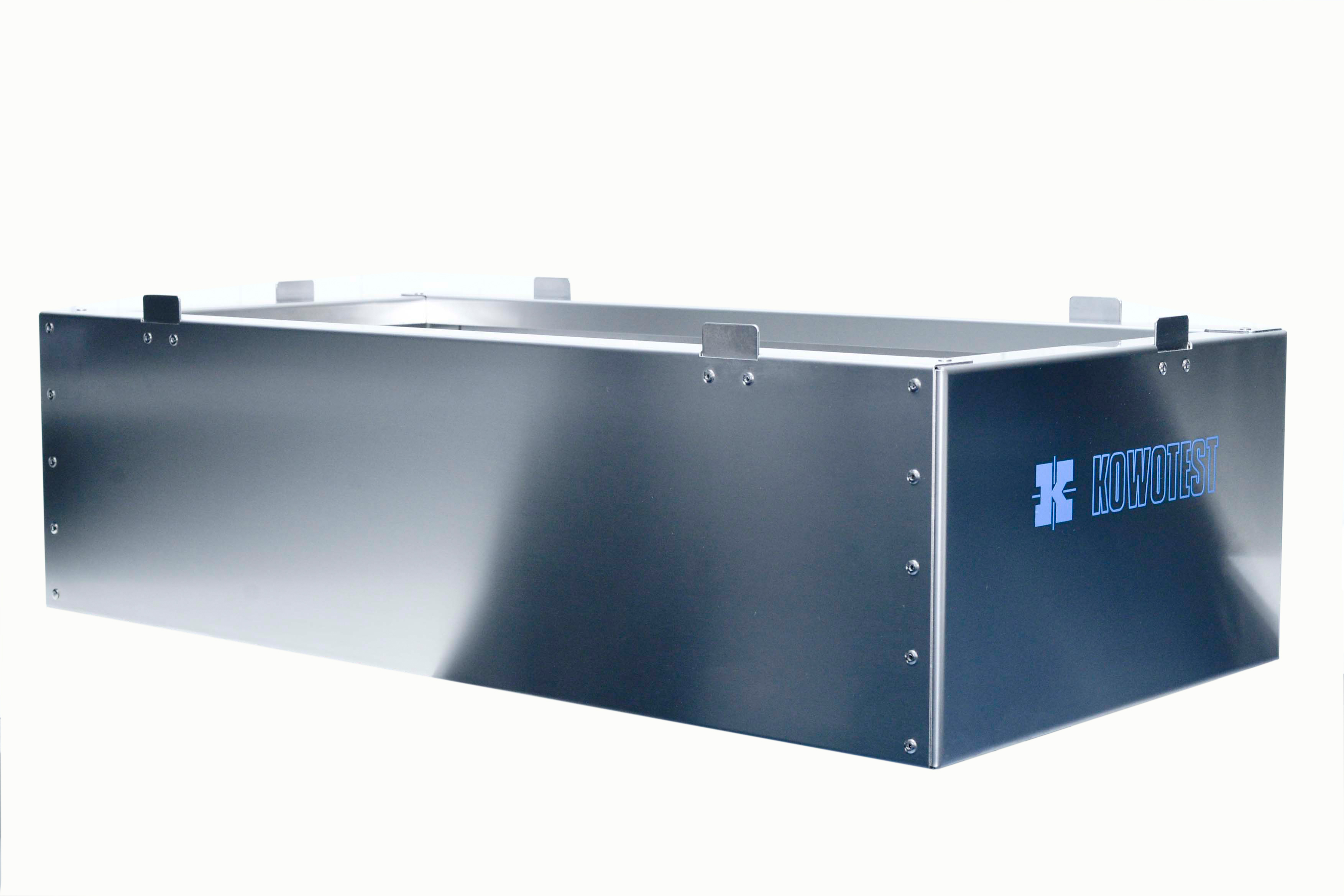

TE 22PK Base Frame — 38.4" x 19.1" x 10.6" (975 x 485 x 270 mm)

Raises working height by 10.6" (270 mm)

RT-KT-12-30657

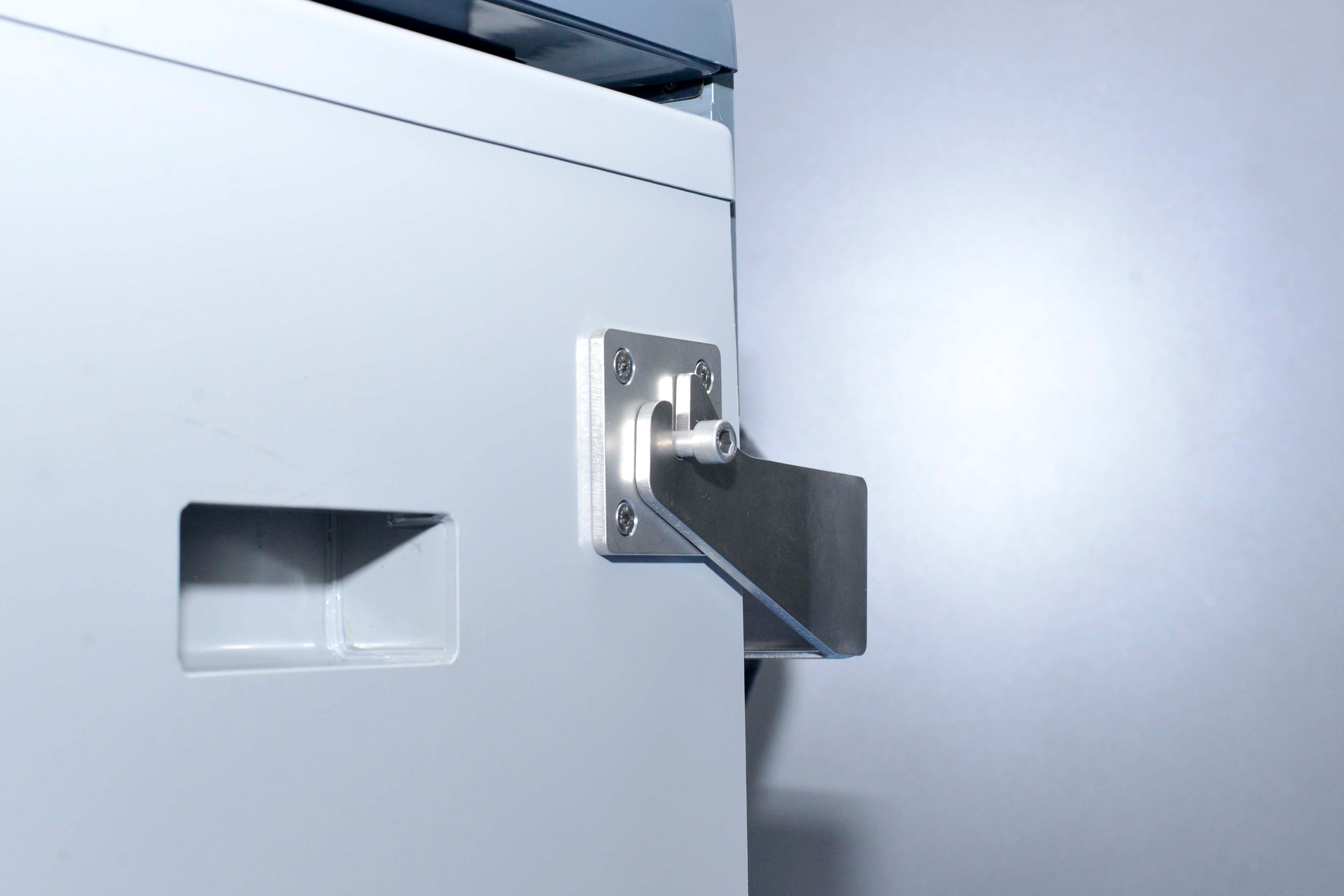

TE 22PK Mounting Frame, for mobile lab
For easy mounting of tank inside the vehicle

The frame is screwed into the back wall of the vehicle, and the TE 22 PK is hung into the mounting frame. All pieces for mounting included with purchase of frame.
RT-KT-12-30658

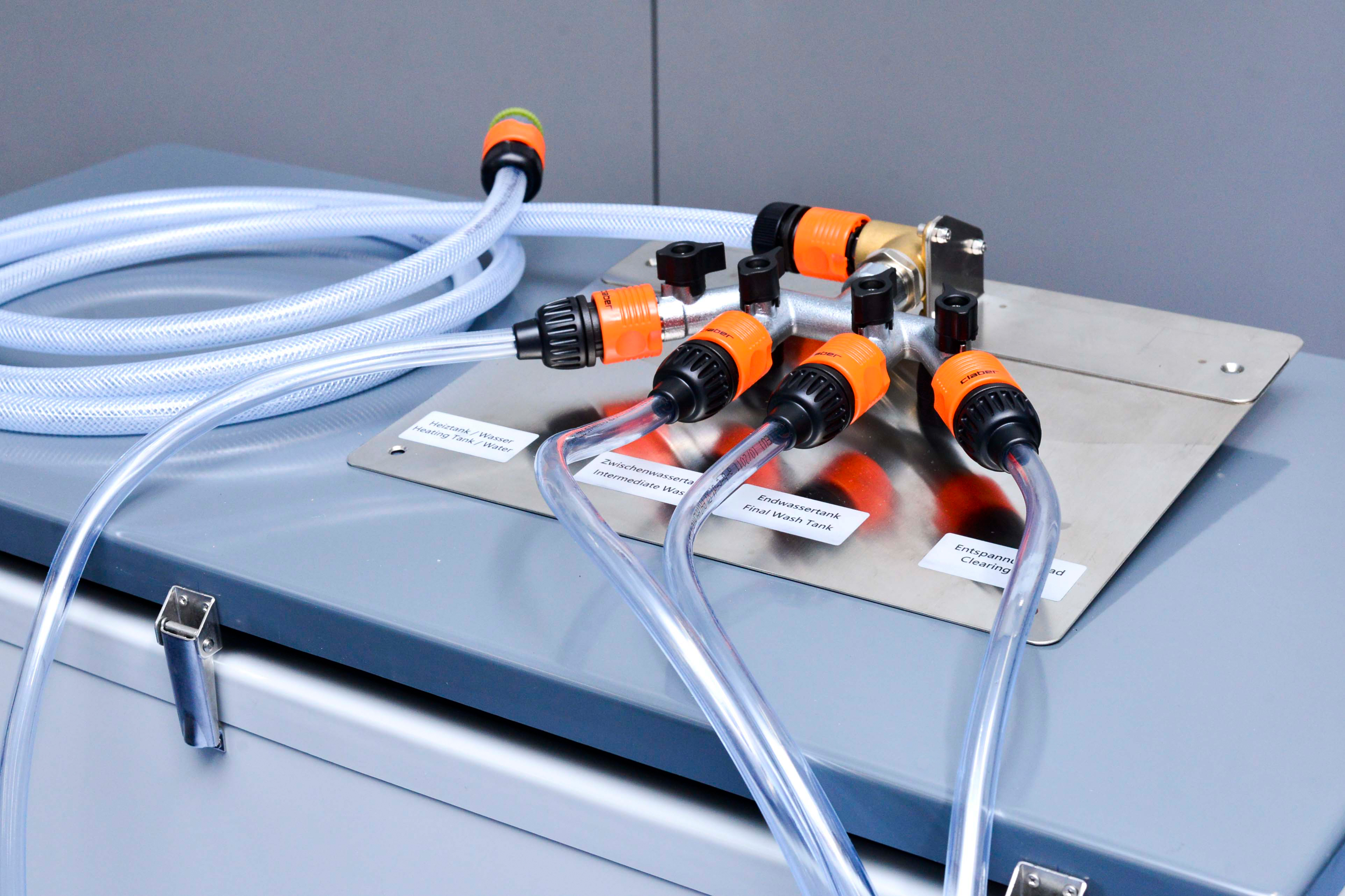

Water Armature 4x on Base Plate, stainless steel
For water distribution to the tanks

RT-KT-12-30675

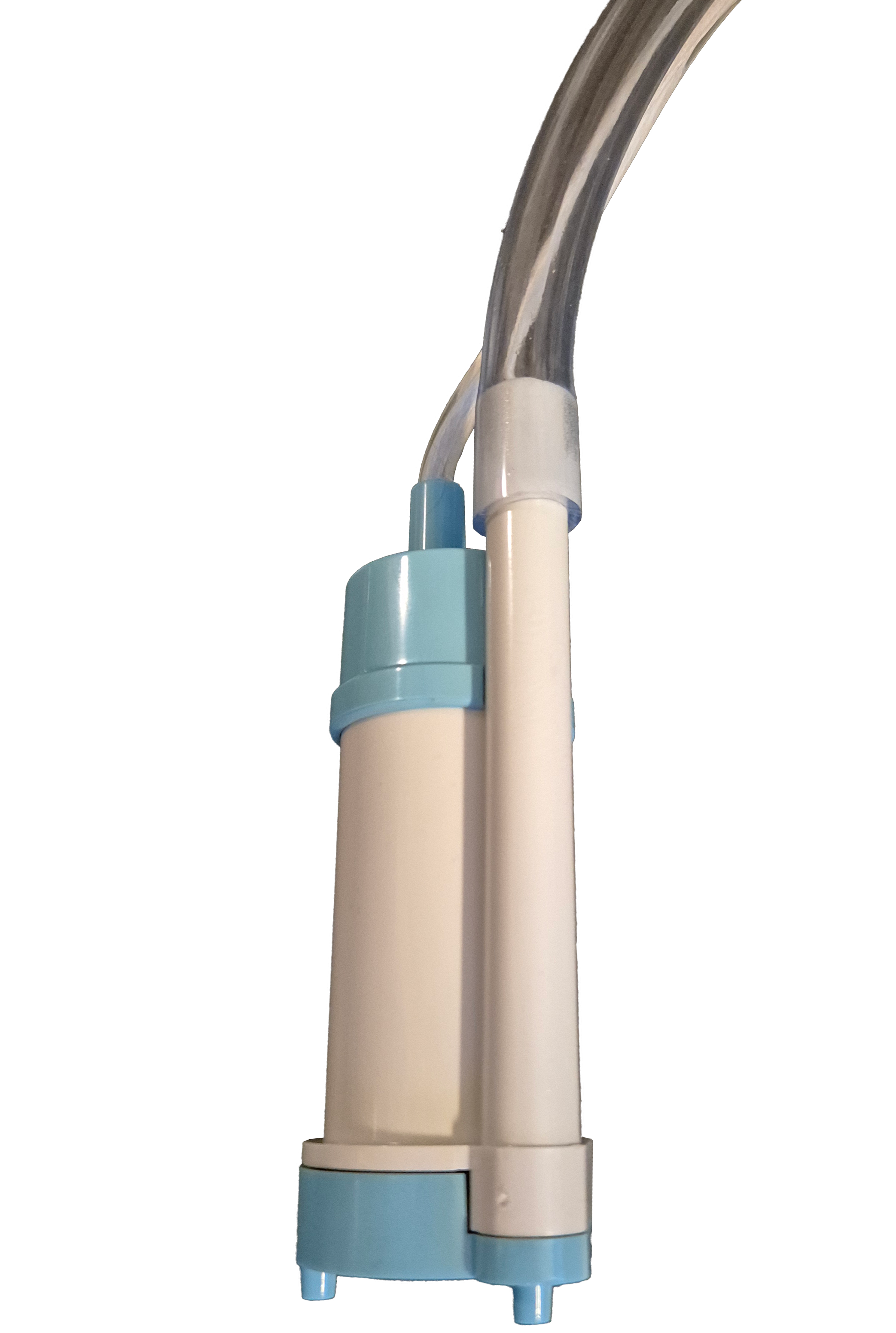

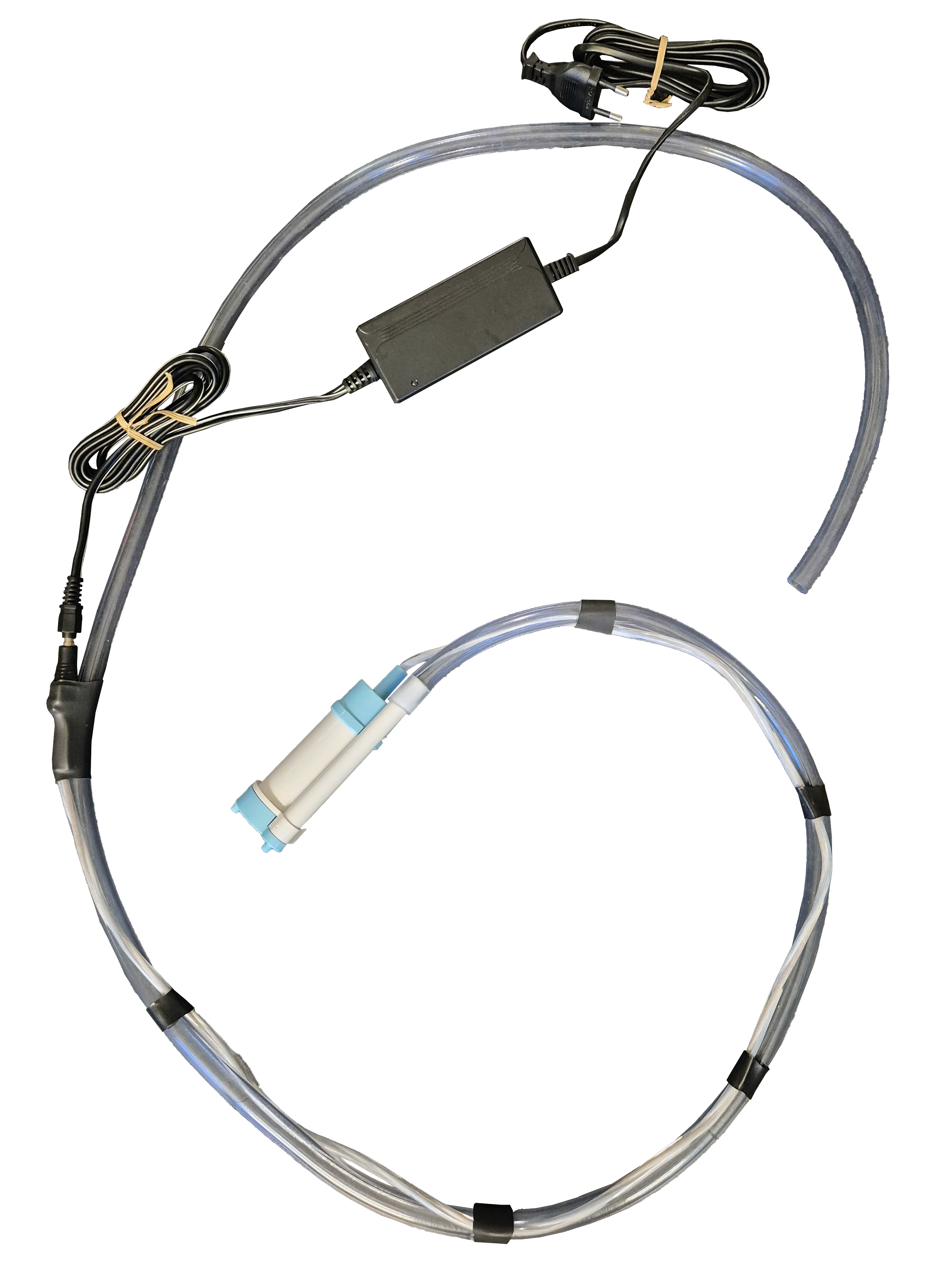

KOWOPUMP 230 Pump for Chemicals with Power Supply
6.6 ft (2 m) hose, 5.3 gal/min (20 l/min), 16 psi (1.1 bar) — 100 - 240 V AC.

For emptying chemicals from tanks with direct power supply

RT-KT-12-30676
KOWOPUMP 12 Pump for Chemicals with car type plug
6.6 ft (2 m) hose, 5.3 gal/min (20 l/min), 16 psi (1.1 bar) — 12 V DC.

For emptying chemicals from tanks using car power supply
RT-KT-12-30677
KOWOPUMP Drain Hose, extension — 16.4 ft (5 m), 0.5" (13 mm) Diameter
Drain hose for extension (16.4') chemical pump
RT-KT-12-30678
KOWOPUMP Drain Hose, extension — 32.8 ft (10 m), 0.5" (13 mm) Diameter
Drain hose extension (32.8') for chemical pump
  RT-KT-12-30660
Water Filter



Technical Specifications

Technical Specifications

TE 22PK Specifications
Tank Dimensions: 22.5 liter (approx. 6 gallon) tank — approx. 13.0" x 4.75" x 23.0" (330 x 120 x 585 mm) for developer, rinse, fixer, pre and final wash
Tank Weight (with Mounting Frame):

Empty: 136lbs (62kg)

Filled: 383 lbs(174kg)
Overall Dimensions (WxDxH): approx. 38.0" x 15.75" x 27.5" (96 x 40 x 70 cm)
TE 22PK Accessories
TE 22PK Base Frame: 38.4" x 19.1" x 10.6" (97.5 x 485 x 270 mm)
Raises working height by 10.6" (270 mm)

Base Frame Requirements

(with open lid):

38.4" x 19.1" x 10.6" (97.5 x 48.5 x 27.0 cm)

Raises working height by 10.6" (27.0 cm)
KOWOPUMP 230: 6.6 ft (2 m) hose, 5.3 gal/min (20 l/min), 16 psi (1.1 bar) — 100–240 V AC
KOWOPUMP 12: 6.6 ft (2 m) hose, 5.3 gal/min (20 l/min), 16 psi (1.1 bar) — 12 V DC
KOWOPUMP Drain Hose — 16.4 ft: 16.4 ft (5 m), 0.5" (13 mm) Diameter
KOWOPUMP Drain Hose — 32.8 ft: 32.8 ft (10 m), 0.5" (13 mm) Diameter

Spare Parts

  • RT-KT-12-30661 — Spare Filter Insert for Water Filter
  • RT-KT-12-30668 — TE 22PK Tank with Drainage, PVC, 22.5 l — 13.0" x 4.5" x 23.2" (330 x 115 x 590 mm)
  • RT-KT-12-30669 — TE 22PK Spare Plug for Tank Drainage
  • RT-KT-12-30670 — TE 22PK Spare Plug Key
  • RT-KT-12-30672 — TE 22PK Spare Gaskets 5-set

Shipping Information

  Weight: Dimensions: HAZMAT: (Yes/No) Country of Origin: HTS Code:
TE 22PK

242.5 lbs

(110kg)

5 × 32 × 49”

(120 x 80 x 125 cm)

 No Germany 9010.50.2000



Pricing for optional accessories and parts only valid when purchased with processing unit.

Description Part # Saved Price Select Option Add to

Developer Tanks
Kowotest TE 22PK X-Ray Film Processor with 5 Tanks RT-KT-12-30630
$6,725.00
Kowotest TE 22PK-H X-Ray Film Processor with 5 Tanks and Heating Unit RT-KT-12-30631
$9,510.00

Optional Accessories
Circuit heater for developer tank for TE 22 PE/K RT-KT-12-30632
$2,085.00
TE 22PK Base Frame — 38.4" x 19.1" x 10.6" (975 x 485 x 270 mm) RT-KT-12-30655
$795.00
TE 22PK Mounting Frame, for mobile lab RT-KT-12-30657
$585.00
Water Armature 4x on Base Plate, stainless steel RT-KT-12-30658
$510.00
KOWOPUMP 230 Pump for Chemicals with Power Supply - 6.6' Hose, 5.3gal/min, 16 PSI, 100 - 240 V AC RT-KT-12-30675
$210.00
KOWOPUMP 12 Pump for Chemicals with Power Supply - 6.6' Hose, 5.3gal/min, 16 PSI, 12 V DC RT-KT-12-30676
$140.00
KOWOPUMP Drain Hose, extension — 16.4', 0.5" Diameter RT-KT-12-30677
$25.00
KOWOPUMP Drain Hose, extension — 32.8' ft, 0.5" Diameter RT-KT-12-30678
Request Pricing
Water Filter RT-KT-12-30660
$255.00

Spare Parts
Spare Filter Insert for Water Filter RT-KT-12-30661
$40.00
TE 22PK Tank with Drainage, PVC, 22.5 l — 13.0" x 4.5" x 23.2" (330 x 115 x 590 mm) RT-KT-12-30668
$350.00
TE 22PK Spare Plug for Tank Drainage RT-KT-12-30669
$25.00
TE 22PK Spare Plug Key RT-KT-12-30670
$80.00
TE 22PK Spare Gaskets 5-set RT-KT-12-30672
$130.00
