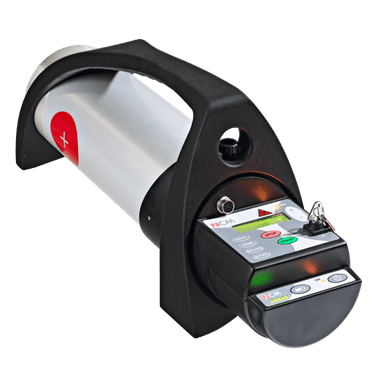

ICM CP Battery Operated Portable X-Ray Generators

ICM CP Battery Operated Portable X-Ray Generators

Battery Operated, Small Focal Spot, Lightweight

Overview

The CP120B and CP160B are battery operated, ultra light and portable constant potential X-Rays generators that have been specially developed to offer a completely new concept, matching the major advances in imaging technology that have taken place in recent years. Even with their ultra-compact size and being lightweight, these constant potential generators are capable of penetrating through 10 mm (CP120B) and 21 mm (CP160B) of steel in a very short exposure time. Moreover, our CPBs are able to distribute a constant DC output that easily outperforms any contemporary 150 kV and 200 kV pulse generator. Finally, the CP120B and CP160B can be run continuously for several minutes without any cooling interruptions, which means that you will be able to perform many consecutive analyses.

Careful attention has also been given to help to ensure that working on-site is faster, more accurate, and easier. The strong, shock-absorbing and visually appealing handling fixture has been designed to fully anticipate the needs of its users.

Features

  • Constant Potential output
    • 120 kV – 1 mA
    • 160 kV- 0.5 mA
  • 60° x 60° directional beam
  • Focal spot of 0.8 x 0.5 mm / 0.8 x 0.7 mm
  • 7 Kg / 9.2 Kg including battery pack and handling
  • Extended operation, external power supply options
  • 37V LI-ION Batteries for 300 consecutive seconds of constant exposure
  • Batteries are fully charged and ready to use in just one hour
  • Optimized for new digital and radiographic imaging media
  • Includes serial port RS232 so kV, mA, exposure time and pre-warning time can be changed from a distance
  • Compatible with the entire range of digital radiography detectors and software, which enables them to perform with any type of detection equipment

Models

Model kV Amp Weight Focal Spot EN 12543 Steel Penetration
CP120B 40 to 120 kV 0.1 to 1.0 mA 15.4 lbs. (7.0kg) 0.8×0.5 mm 0.4″ (10mm)
CP160B 40 to 160 kV 0.1 to 0.5 mA 20.3 lbs. (9.2kg) 0.8×0.7 mm 0.83″ (21mm)

To see more specifications, please view the below product literature:

CP Battery Brochure CP Battery Catalog

Kit Includes

Kit Includes

  • One Li-ion 37V Battery
  • 120VAC Battery Charger
  • User Manual
  • Carrying Case
Optional Accessories

  • Ruggedized Structure
  • Adjustable Collimator
  • Carbon Tripod
  • Fast Battery Charger
  • Trigger
  • External Power Supply

Product Literature
