Golden Engineering XRS4 GFX Pulsed X-Ray Unit

Golden Engineering XRS4 GFX Pulsed X-Ray Unit

High Power - Battery Operated - Pulsed X-Ray Unit

The XRS4 has been replaced by the XRS4 GFX.
Same great qualities as the original XRS4 with an all-new graphics display.

Powerful, 370 kV Pulsed X-Ray Unit

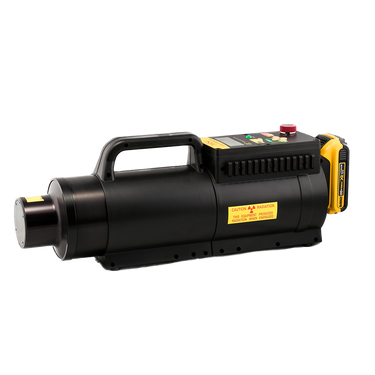

The XRS4 GFX is a 370 kV, battery powered, pulsed X-ray generator used in security and light industrial applications. Pulsed X-rays generate a high intensity X-ray energy burst (pulse) in a very short period of time (10 nanoseconds). The XRS4 GFX provides a significant increase in penetrating abilities compared to other models, 1.5" of steel when used with a digital imaging system. The output dose of each pulse is approximately 5mR measured 12 inches from the X-ray machine.

Weighing in at 20 pounds, the XRS4 GFX is significantly larger and heavier that other Golden Engineering generators but is still considered extremely portable by industry standards. The XRS4 GFX has a single package design that includes a DeWalt battery pack, high voltage head, sturdy glass tube and electronic controls. 2 features unique to the XRS4 GFX include having a robust aluminum housing and a bellows located in the handle, improving the durability and longevity of the generator. The electronics control module has a menu based design that greatly enhances operator interface capabilities, allowing the operator to change the pulse rate of the machine, set multiple pulse trains with appropriate rests in between and easily track the life of the machine.







Features

  • 20V Lithium-ion Battery
  • Maximum 370 kVp
  • Menu-based software
  • Simple variable pulse setting
  • Compatible with CR and DR digital technology
  • Modular construction
  • Consistent interface with other Golden models
  • Easy-access 7-pin K Lemo remote cable connector above the battery
  • Picatinny Rails for mounting accessories
  • Integrated Arca Swiss Tripod Mount
  • Easily removable top plate
  • 3000 pulses per battery charge
  • Battery includes charge indicator



All-New Graphic Display

  • Larger text and graphics
  • Viewable in direct sunlight
  • Colored text and backlight
  • Extended temperature range
  • Help button - access on-board context-sensitive help
  • QR code - access additional information online

Technical Specifications

XRS4 GFX Specifications

Power: DeWalt 20V Battery
Weight: 18.3 lbs. (8.3 kg) including battery
Output Dose: 5 mR/pulse measured 12" from source
Pulse Rate: 9 pulses per second
Pulses per Battery Charge: 3000
Source Size: 1/8" (3mm)
Max Photon Energy: 370 kVp
Pulse Width: 10 nanoseconds
Beam Angle: 40° standard / 60° available upon request
Current Draw: 17 amp
Max Duty Cycle: 200 pulses per 4 minutes
Warm Up: None Required
Operating Temperature: -4° to 158°F (-20° to 70°C)
IP Rating: IP 54
Warranty: 1 yr. limited parts, labor, service

Purchasing Options

XRS4 GFX Series

Item Description Part #
XRS4 X-RAY SOURCE GFX 20V 7PK   1450200
XRS4 X-RAY 20V GFX KIT 110V: NO CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER)   1430210
XRS4 X-RAY 20V GFX KIT 220V: NO CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER)  1430220
XRS4 X-RAY 20V GFX KIT 110V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, CABLE & CASE)   1430230
XRS4 X-RAY 20V GFX KIT 220V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER, CABLE & CASE)  1430240
XRS4 X-RAY 20V GFX KIT: CABLE & CASE (SOURCE, CABLE & CASE)  1430260
XRS4 X-RAY 20V GFX KIT 110V: CASE NO REMOTE CABLE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, ADAPTER CABLE & CASE)  1430265
XRS4 X-RAY 20V GFX KIT 220V: CASE NO REMOTE CABLE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER, ADAPTER CABLE & CASE)  1430266
Accessories & Spare Parts for XRS4 GFX Sources

Item Description Part #
BATTERY DeWalt® 20V 2 Ah Li-Ion SLIDE ON 1800106
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 110V 1800151
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 220V 1800164
REMOTE CABLE ASM 7PK (7 PIN K SERIES LEMO) 1809030
REMOTE CABLE ASM 5PK (5 PIN K SERIES LEMO) 1809022
REMOTE CABLE ASM 5PB (5 PIN B SERIES LEMO) 1809013
REMOTE CABLE ASM 4PB (4 PIN B SERIES LEMO) 1800005
REMOTE CABLE ASM 7PK NO DELAY (7 PIN K SERIES LEMO) 1809035
REMOTE CABLE ASM 5PK NO DELAY (5 PIN K SERIES LEMO) 1809027
REMOTE CABLE ASM 5PB NO DELAY (5 PIN B SERIES LEMO) 1809016
XRS4 20 MIL COPPER FILTER COLLIMATOR SNAP ON 1800291
XRS4 30 MIL COPPER FILTER COLLIMATOR SNAP ON 1800292
XRS4 40 MIL COPPER FILTER COLLIMATOR SNAP ON 1800293
XRS4 60 MIL COPPER FILTER COLLIMATOR SNAP ON 1800294
XRS4 80 MIL COPPER FILTER COLLIMATOR SNAP ON 1800288
XRS4 SNAP ON LEAD COLLIMATOR CAP 20 DEGREE 1800286
XRS4 SNAP ON LEAD COLLIMATOR CAP 30 DEGREE 1800287
XRS4 COLLIMATOR CAP SET (6 pcs) 1800290
XRS4 TUBE REPLACEMENT KIT 1000005
XRS3 / XRS4 SPARE TUBE 2200000
BOTTLE OF DIALA OIL FOR XRS3 & XRS4 TUBE REPLACEMENT 8401000
TRIPOD KIT XRS4 1803042
XRS4 18V TO 20V GFX DISPLAY UPGRADE W/ ADAPTER CABLE 9901542
XRS4 20V TO GFX DISPLAY UPGRADE W/ ADAPTER CABLE 9901543

Discontinued Items

  • RT-GE-1410230 - Golden Engineering XRS4 X-ray 20V Kit, 110V Includes: XRS4 Unit, Two 20V Batteries, 110V Charger, Cable & Case.
  • RT-GE-1410240 - Golden Engineering XRS4 X-ray 18-20V Kit, 220V Includes: XRS4 Unit, Two 18-20V Batteries, 220V Charger, Cable & Case.
  • RT-GE-1412130 - Golden Engineering XRS4RA X-Ray 20V Kit 110V Includes: XRS4RA unit, Two 20V Batteries, 110V Charger, Cable & Case.
  • RT-GE-1412140 - Golden Engineering XRS4RA X-Ray 18-20V Kit 220 Includes: XRS4RA Unit, Two 20V Batteries, 220V Charger, Cable & Case.
Description Part # Saved Price Select Option Add to
Golden Engineering XRS4 X-ray 20V GFX Kit, 110V: Cable & Case Includes: XRS4 Unit, 2 - 20V Batteries, 110V Charger, Cable & Case RT-GE-1430230 Request Pricing
Golden Engineering XRS4 X-ray 20V GFX Kit, 220V: Cable & Case Includes: XRS4 Unit, 2 - 20V Batteries, 220V Charger, Cable & Case RT-GE-1430240 Request Pricing
