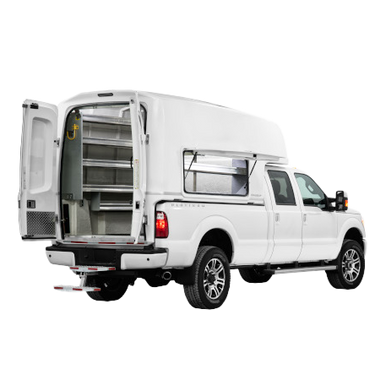

The Composite Truck Body CTB385 is a one-piece mobile darkroom that is perfect on-site radiographic testing. It is available as a standard unit, or as a made-to-order Custom unit. The CTBs proprietary, lightweight design means it can be transferred between trucks with ease. All units feature a 10 year warranty.
We know you need your darkroom fast. That's why we streamlined our operations to get you the unit rapidly. But we don't sacrifice quality to get this done. Our logistics are as refined as our product: each mobile dark room comes with a 10 year warranty and is built to last 3 truck lifetimes.
From roof-mounting A/C units to custom Generator Compartments, the Custom CTB Model you need is available.
Common Customizability capacities include:
| CTB385 Specifications | ||
| SHORT 6.5' BED | FULL 8' BED | |
| Length: | 123" (312.42cm) overall length from the nose cone to the rear | 157″ (398.78cm) overall length from the nose cone to the rear |
| Height: | 81" (205.74cm) | 81″ (205.74cm) |
| Width: | 78" (198.12cm) | 78" (198.12cm) |
| Internal Volume: | 335 cu ft (9.49 cu m) | 385 cu ft (10.90 cu m) |
| Weight: |
Empty: 720lbs (326.59kg) With Shelving: 1400lbs (635.03 kg) |
Empty: 780lbs (353.80kg) With Shelving: 1400lbs (635.03 kg) |
| Material: | Fiberglass, Stainless Steel, and Aluminum | |
| Insulation: | Urethane | |
| Lighting: |
40" LED lightbar laminated Square flood worklight type 4320 lumen (+/- 432W Equiv.) x2 |
|
| Power: | 110V GFI Outlet x2 | |
To purchase the CTB385 Darkroom, click on the link
