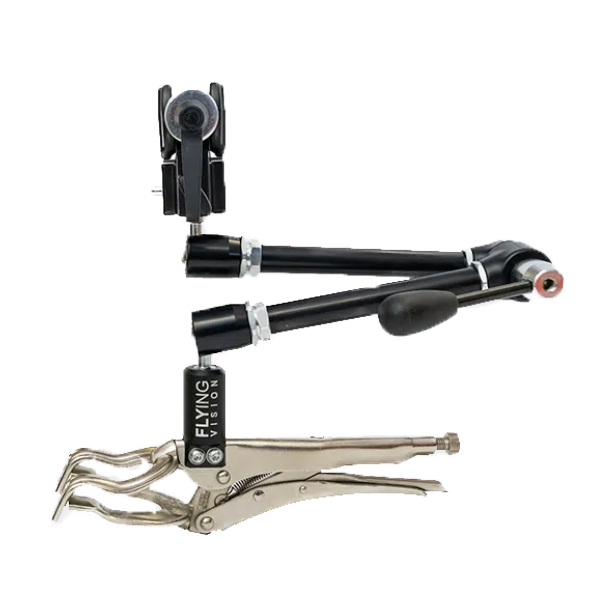

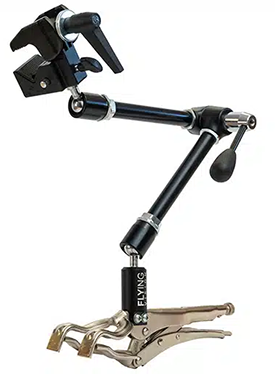

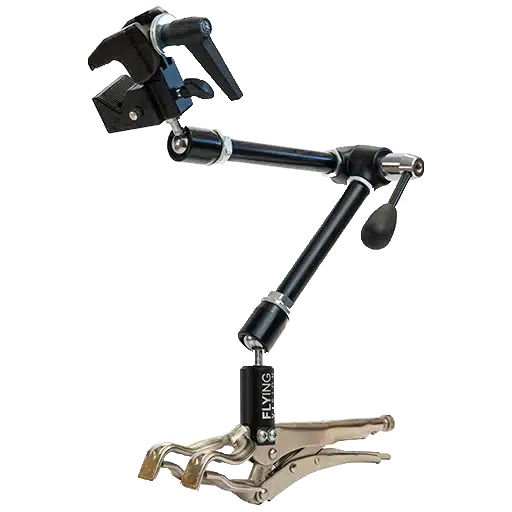

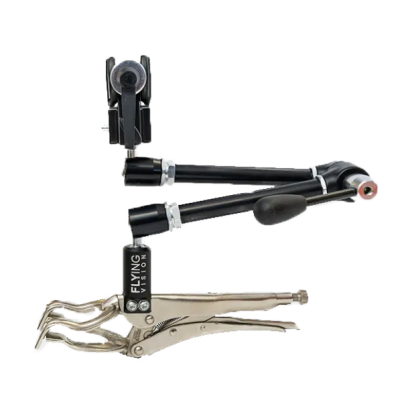

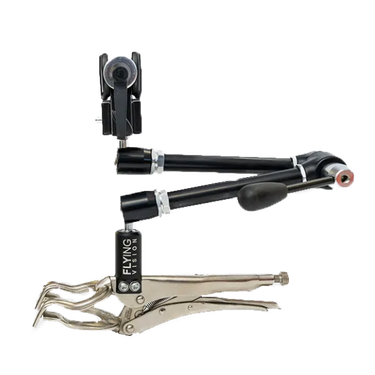

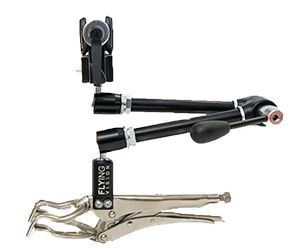

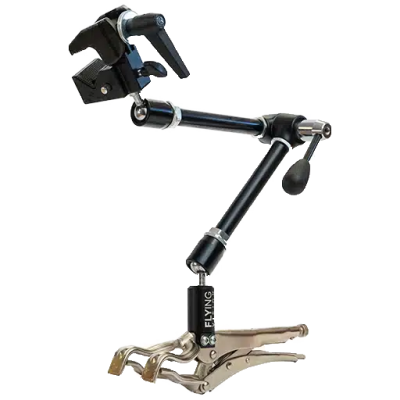

The OPG is an innovative instrument specifically designed to optimize the positioning of the collimator during industrial radiographic or industrial gammagraphy inspections. Its robust and functional design ensures operational efficiency while maintaining the integrity and accuracy of inspections. The articulating arm allows for easy adjustment of the collimator in any position, allowing for exact localization, optimizing the precision and repeatability of radiographic inspections. The clamp secures to any type of support up to 90mm in diameter, providing great flexibility during inspections, and the locking system keeps the collimator in place during the inspection.

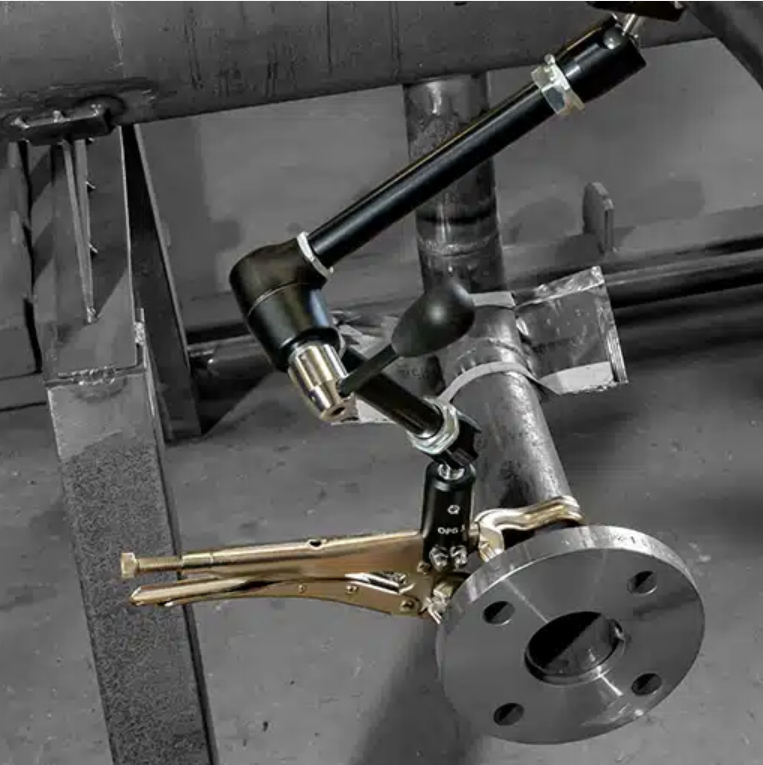

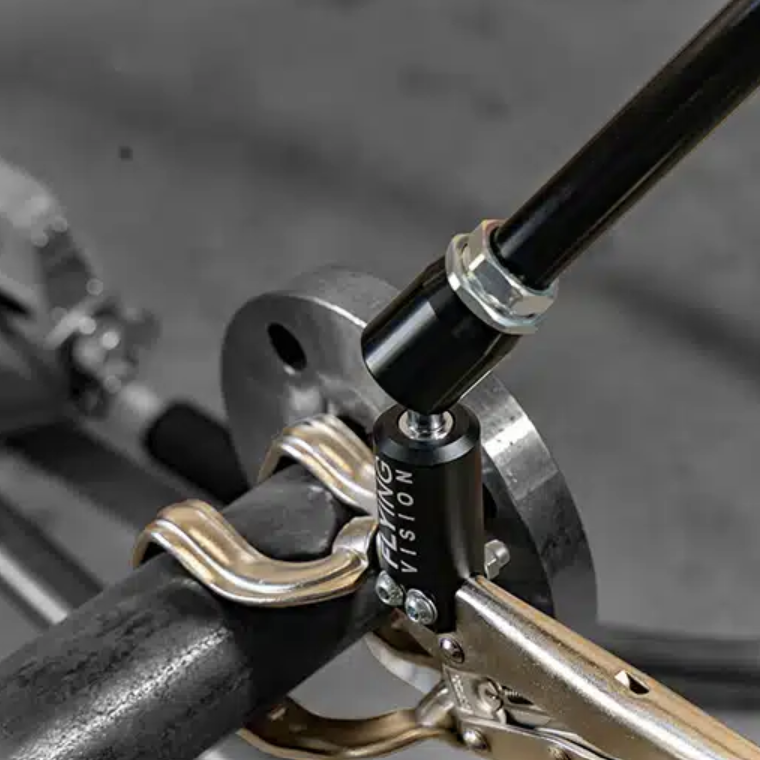

Versatile Mounting Options & Quick Locking into position
Adjustable to any type of support up to 90mm in dia.
Articulating arm allows for easy adjustment in any position
| Weight | 5 lbs. (2300 grams) |
| Articulated Arm Dimensions | 20" (50 cm) |
| Clamping Capacity of the Vice Grips | Up to 3.5" (90 mm) in diameter |
| Collimator Side Clamping Capacity | from 0.5" to 2.1" (13 to 55 mm) for tube and flat surfaces |
| Materials | Anodized aluminum, stainless steel |
