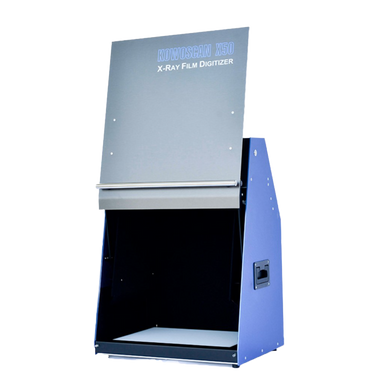

Kowotest Kowoscan X50 Film Digitizer

Kowotest Kowoscan X50 Film Digitizer

X-Ray Digitizer for Large Film Scans or Several Smaller, Simultaneous Film Scans

X-Ray Digitization in Seconds

The X50 produces quality class DS from X-Ray films within seconds. Its High Resolution digital camera captures film on the uniform, illuminated screen. The large capture area allows for several smaller films to be scanned simultaneously with the use of up to a 4-fold mask. The X50 boasts a high throughput for rapid digitization of large amounts of film. The complete lack of moving parts means there are minimal maintenance requirements, and the automatic calibration for geometry and density make the X50 one of the most efficient digitizers on the market. It's other advantages include a DICONDE tag editor with automatic functions, magnification and mirroring capacities, and highly compatible software.

Technical Specifications

Technical Specifications

Kowoscan X50
Scanning Size: 11.81 x 17.71 inches (300 x 450 mm) - max. length: 19.00 inches (480 mm) (with max. width of 3.94 inches (10cm))
Digitization Quality Class: DS *) according to EN ISO 14096 and ASTM E1936
Scanner Pixel Sizes: class DS: 30 μm, 60μm, 100μm; class DB: 50μm, 70μm, 85μm
Scanning Resolution (vSRb): 40 μm (with Duplex wire type IQI using 30μm pixel size)
Scanning Time (film 30x40 cm^2): class DS 30μm: 45s; 60μm: 24s; fast scan (no class): 8 s
Density Range (DWR): D 0.2 … D 5.0 with linearity of D 0.02 (all classes)
Contrast sensitivity (ΔD): D 0.2 … D 4.5 with ΔDCS < 0.02 (class DS)
Data Format: DICONDE or TIFF (16 Bit density or gray value images)
Scanner Resolution (30μm): 14870 x 9920 pixel (full area); 22 Bit image sampling (eff.)
Scanner Resolution (60μm): 7435 x 4960 pixel (full area); 22 Bit image sampling (eff.)
Communication Port: USB 3.0
Power Supply: 100 … 240 V, 50 … 60 Hz / 24 V DC, 120 W
Dimensions: 22.44 x 17.32 x 31.10 inches (57 x 44 x 79 cm) (W x D x H)
Weight: 65.70 lbs (29.8 kg) plus 2.20 lbs (1.0 kg) (external power supply)

Kit Includes

  • KowoScan X50 Film Digitizer
  • KowoScan Software
  • KOWOSCAN Resolution Test Chart
  • KOWOSCAN Density Step Tablet, 10 D values
  • Mask for films - 14 x 17 inch (1-fold)
  • Test certificate, Certificate of Conformity

Optional Accessories

  • Reference Radiograph, ASTM E1936 (EPRI )
  • Mask for Reference Radiograph, ASTM E1936
  • Masks for Films:

10x12 cm (8-fold)          6x16 cm (6-fold)            8x36 cm (3-fold)

10x16 cm (4-fold)          6x24 cm (6-fold)           13x18 cm (4-fold)

10x24 cm (4-fold)         6x32 cm (4-fold)           15x40 cm (1-fold)

10x40 cm (2-fold)         6x40 cm (4-fold)           18x24 cm (2-fold)

10x48 cm (1-fold)          6x48 cm (1-fold)           24x30 cm (1-fold)

10x20 cm (4-fold)         6x30 cm (4-fold)           30x40 cm (1-fold)

10x30 cm (2-fold)         6x36 cm (4-fold)           14x17 in(1-fold)

6x12 cm (8-fold)            8x18 cm (4-fold)           7x17 in (1-fold)

Product Literature

Description Part # Saved Price Select Option Add to

Unit
Kowotest Kowoscan X50 Film Digitizer, KowoScan Software, KOWOSCAN Resolution Test Chart, KOWOSCAN Density Step Tablet, 10 D values, Mask for films - 14x17 (1-fold), Test certificate, Certificate of Conformity, Power Supply Unit RT-KT-13-42100
Request Pricing

Masks
Kowotest 10x12 cm Mask (8-fold) (13-42131) RT-KT-13-42131
Request Pricing
Kowotest 10x16 cm Mask (4-fold) (13 42132) RT-KT-13-42132
Request Pricing
Kowotest 10x24cm Mask (4-fold) (13-42133) RT-KT-13-42133
Request Pricing
Kowotest 10x40 cm Mask (2-fold) (13-42134) RT-KT-13-42134
Request Pricing
Kowotest 10x48 cm Mask (1-fold)- (13-42135) RT-KT-13-42135
Request Pricing
Kowotest 10x20 cm Mask (4-fold) (13-42136) RT-KT-13-42136
Request Pricing
Kowotest 10x30 cm Mask (2-fold) (13-42137) RT-KT-13-42137
Request Pricing
Kowotest 6x12 cm Mask (8-fold) (13-42141) RT-KT-13-42141
Request Pricing
Kowotest 6x16cm Mask (6-fold) (13-42142) RT-KT-13-42142
Request Pricing
Kowotest 6x24 cm Mask (6-fold) (13 42143) RT-KT-13-42143
Request Pricing
Kowotest 6x32cm Mask (4-fold) (13-42144) RT-KT-13-42144
Request Pricing
Kowotest 6x40 cm Mask (8-fold) (13-42145) RT-KT-13-42145
Request Pricing
Kowotest 6x48cm Mask (1-fold) (13 42146) RT-KT-13-42146
Request Pricing
Kowotest 6x30 cm Mask (4-fold) (13 42147) RT-KT-13-42147
Request Pricing
Kowotest 6x36 cm Mask (4-fold) (13-42148) RT-KT-13-42148
Request Pricing
Kowotest 8x18 cm Mask (4-fold) (13-42151) RT-KT-13-42151
Request Pricing
Kowotest 8x36 cm Mask (3-fold) (13-42152) RT-KT-13-42152
Request Pricing
Kowotest 13x18 cm Mask (4-fold) (13-42154) RT-KT-13-42154
Request Pricing
Kowotest 15x40 cm Mask (1-fold) (13-42155) RT-KT-13-42155
Request Pricing
Kowotest 18x24 cm Mask (2-fold) (13-42156) RT-KT-13-42156
Request Pricing
Kowotest 24x30 cm Mask (1-fold) (13 42157) RT-KT-13-42157
Request Pricing
Kowotest 30x40 cm Mask (1-fold) (13 42158) RT-KT-13-42158
Request Pricing
Kowotest 14x17 in Mask (1-fold) (13 42161) RT-KT-13-42161
Request Pricing
Kowotest 7x17 in Mask (1-fold) (13-42162) RT-KT-13-42162
Request Pricing

Other Accessories
Kowotest Kowoscan X50 Resolution Test Chart (13-42120) RT-KT-13-42120
Request Pricing
Kowotest Kowoscan Density Step Tablet, 10 D values RT-KT-13-42115
Request Pricing
Kowotest KowoScan Software (13-42110) RT-KT-13-42110
Request Pricing
Kowotest Reference Radiograph, ASTM E1936 (EPRI )(11 00340) RT-KT-11-00340
Request Pricing
Kowotest Mask for Reference Radiograph, ASTM E1936 (13-42125) RT-KT-13-42125
Request Pricing
