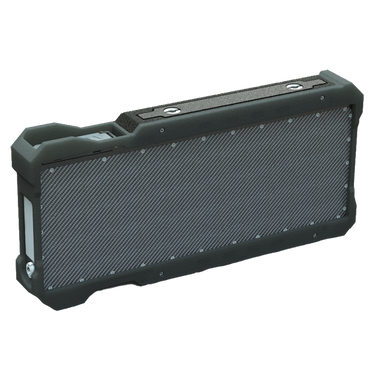

Introducing the PiX Pikena HD, Pacific NDT's highest resolution digital detector. Pikena HD is their smallest, lightest, and highest resolution detector designed with complete focus on successful use in portable applications. With a scanning resolution of 76 microns and a weight of 2.7 lbs (minus armor), it's your ideal choice for high definition aerospace imaging or Pipeline inspection. Pikena HD provides improved accessibility and the ability to image in tighter spots.

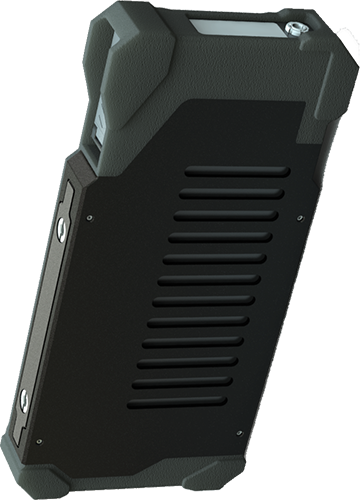

Comes with a highly advanced sleeve-like protective case designed to ensure the detector profile stays as small as possible. The armor allows you to mount handles at multiple locations and the ability to use the Manual Mount kit, Robo Mount kit, etc. The Pikena HD is IP67 rated.
Only 13.5" x 5.7" x 1.4" (345 x 145 x 36 mm)!
Applications
PiX Pikena HD allows improved accessibility during CUI (Corrosion Under Insulation) inspection. It has also shown tremendous results while imaging Aerospace parts as well as during Pipeline integrity inspection (clearly identify corrosion, erosion, shrinkage cracks, measure wall thickness, etc.)
| Technology | a-Si TFT with Photodiode |
| Imaging Area | 3.8" x 9.1" (233 x 97 mm) |
| Pixel Matrix | 3072 x 1280 |
| Pixel Pitch | 76μm (Binning 152 μm) |
| A/D Conversion | 16-bit |
| Operation Temperature | 32 - 113 °F (0 - 45 °C) |
| Data Interface | 1G Ethernet / Wi-Fi 802.11 n/ac |
| External Dimension |
Without Armor: 13.1" x 5.2" x 1.2" (335 x 132 x 30 mm) With Armor: 13.5" x 5.7" x 1.4" (345 x 145 x 36 mm) |
| Edge Space | 6 mm |
| Ingress Protection | IP67 |
| Weight |
Low kV Application: 2.7 lbs High kV Application: 4.9 lbs With Armor/low kV: 4.5 lbs |
To purchase the PiX Pikena HD, please contact us here:
