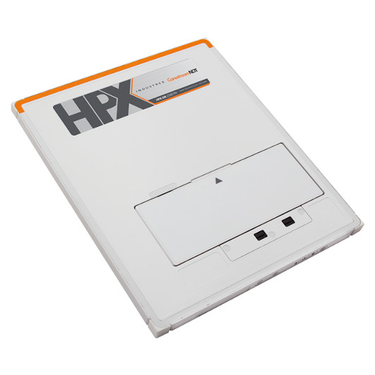

Carestream HPX-DR 2530 PH Hi-Res Compact Detector

Carestream HPX-DR 2530 PH Hi-Res Compact Detector

Innovative Non-Glass, Durable Design DR Detector with Compact Size and High Resolution


The HPX-DR 2530 PH Non-Glass Detector provides high-resolution imaging capability and a non-glass design for maximum durability against the rigors of NDT field work. See more with the 98 μm resolution for optimal image defect visibility. Do more imaging in confined areas or between objects; the new HPX-DR 2530 fits in tight spaces with its compact size of 9.8" x 11.8" (250 x 300 mm). The non-glass detector design virtually eliminates costly repairs for broken glass while increasing utilization, uptime and productivity.


  • Tungsten shielding for higher cumulative dose while preserving image quality
  • Protective, weatherproof enclosure for use in harsh environments
  • Close-to-edge imaging maximizes surface area for image capture
  • Robust wireless connectivity for faster image transfer and analysis
  • Lithium-ion batteries with battery ‘hot-swap’ to keep the detector running during battery change
  • Improved defect detection with 98 μm resolution
  • Compact size (250 x 300 mm) and thin profile 0.5" (14.7 mm) for positioning in tight spaces
  • 2 Year Warranty

Industrex Digital Viewing Software

The HPX-DR 2530 PH runs on Industrex Digital Viewing Software, an all-in-one software enabling customers to standardize on one software platform both CR and DR inspection. The software platform was developed for ease-of-use to reduce operator training and equipment onboarding time, thus reducing risk of error and increasing profitability. Incorporates industry-leading image analysis tools, file sharing and storage management features.

Exposure Interface Box (EIB) Accessory

  • An Industrex Digital System accessory for DR
  • Provides a standalone battery powered Wi-Fi access point to HPX-DR Detectors
  • Optionally provides a communications interface to support select Golden pulse generator models
  • The pulse generator interface enables timing coordination of the HPX-DR Detector image capture with the Golden X-ray pulse generation

Technical Specifications

HPX-DR 2530 Specifications


Active area: 9.8" x 11.8" (250 x 300 mm)

Dimensions: 11.1" x 13" x 0.5" (282 x 332 x 14.7 mm)

Weight 6.8 lbs. (3.1 kg)
Housing Material Aluminum
Load Limit Distributed evenly over detector area: 375 lbs. (170.1 kg)
Conversion Screen DRZ FINE
Pixel Pitch 98 µm
Scan Method Progressive
A/D Conversion 16 bits
Image Resolution 5.1 lp/mm
Wireless System
Network Type Isolated Private Wireless LAN (WLAN)
Wireless Protocol 802.11 A, G, N, AC
Shock High shock tolerance
Temperature Range

-4 to 122 °F (-20 to 50 °C)

Ambient Storage / Shipping: -9.4 to 140 °F (-23 to 60 °C)

Relative Humidity Operating 10 - 86%
Non-Condensing Storage 10 - 86%
Ingress Protection IP57


Performance Accessories

Accessories for even more strength and longevity

Optional protective cover for lab use increases detector load limit up to 750 lbs. (340 kg.)

Includes a 2 Year Warranty
