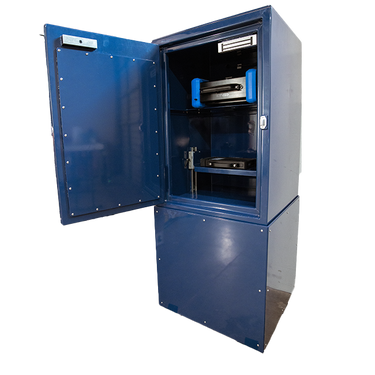

PiX Mini HD Cabinet is a Self-contained X-Ray Digital Imaging system in a mobile Radiation Shielded Cabinet. Excellent for inspecting: small parts, castings, welds, assemblies, circuit boards and electrical and electronic components and security applications.
Since it is both mobile and shielded, it can be used any place where you have electricity to operate it. From shop floor to public areas, it is a great choice for X-Ray Digital Imaging.
| PiX X-Ray HD | |
| PiX DR Specifications | |
| Technology: | a-Si TFT with Photodiode |
| Imaging Area (mm & inch): | 233x97mm (3.8”x9.1”) |
| Pixel Matrix: |
3072 x 1280 |
| Pixel Pitch (μm): | 76μm (Binning 152 μm) |
| A/D Conversion: | 16-bit |
| Operating Temperature (°C/°F): | 0-45°C (32-113°F) |
| Data Interface: | 1G Ethernet /Wi-Fi 802.11 n/ac |
| Ingress Protection: | IP67 |
| Multiframe Capture: | Yes (up to 20 frames) |
| X-RAY Specifications | |
| Waveform: | Constant Potential |
| Output Range: | 40 kV to 160 kV |
| Output Current: | 0.1 mA to 1.0 mA |
| Maximum Power at Anode: | 160 W |
| Focal Spot Size: | 0.4 mm |
| Beam Angle: | Cone Beam (40°) |
| Communication Protocols: | Wireless 802.11 2.4 GHz and Wired TCP/IP Ethernet |
| Steel Penetration: | 16-18 mm (160 kV, 0.5 mA, 7.5 sec) |
| Operating Temperature: | -3°F to 122°F (-10°C to 50°C) |
The PiX MINI HD Cabinet is excellent for inspection of :
