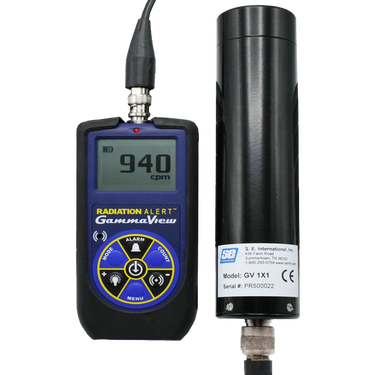

Radiation Alert GammaView Scintillation Detector

Radiation Alert GammaView Scintillation Detector

Measures Gamma Contamination and Exposure and Single-Channel Analyzer (SCA) Function

Accurate Gamma Detection

The compact GammaView is lightweight, easy to carry and operate detector with a 1x1 Nal scintillation detector that accurately measures gamma contamination and exposure. Perfect for use in the lab, facility, and in the field. Provides high levels of sensitivity to low energy Gamma and X-ray. The GammaView can also be used as a single-channel analyzer (SCA). This function allows a “window” to be set to focus on a specific energy region of the gamma spectrum, effectively reducing the background count.


  • Adjustable Timer
  • Selectable Alert
  • On-board Memory
  • Bluetooth
  • Free Software
  • 1 Year Limited Warranty


  • Compliance monitoring
  • Environmental monitoring
  • Remote monitoring
  • Health physics
  • Homeland defense

Included Software

The Observer USB Software reads in Total Counts, CPM,µR/hr, mR/hr, CPS, µSv/hr, and has the ability to collect, log the data received, set the calibration date and settings, and echo the readings collected on a PC. The data is displayed on a graph, as well as a digital on-screen meter. Data can be saved or printed in various ways, including a spreadsheet format. The dwell/count time can be adjusted for each point on the graph and the length of time for the count can be set . The software display has adjustable settings as well as a settable alarm.

Technical Specifications

GammaView Specifications

Detector 1x1 NaI Scintillation Probe
Operating Range mR/hr – 1 µR/h to 5 mR/h
µSv/hr - 0.001 to 50
CPM – 0 to approx. 875,000
CPS – 0 to approx. 14,584
Total Counts- 999,999
Energy Range 20 Kev to 1.5 MeV
Typical Sensitivity 150 CPM/mR/hr
Accuracy (Referenced to Cs137) ±10% with Source Calibration
Operating Voltage Typically 500 to 1200 Volts
Selectable Alert Range mR/hr - 1 µR/h to 5 mR/h
µSv/hr - 0.001 to 50
CPM - 1 to 875,000
CPS- 1 to 14,584
Pulsating beeper sounds the alert
Display Graphic Display with Backlight
Averaging Periods Display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases
Anti-Saturation Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading
Outputs USB and Bluetooth BLE (4.1)
Power Requirements Two AA alkaline batteries (included). Approx. 500 hrs @ background
Temperature Range 5 to 122 °F (-15 to 50 °C)
Humidity Range 10% to 70% (non-condensing)

Base unit: -6.8 oz (193 grams) with batteries

Probe: 13.8 oz (393 grams)


Base unit:5.5" X 2.7" X 1.3" (140 X 68 X 33 mm)

Probe: 2" x 7.3" (5.0 X 18.5 cm)

Warranty 1 Year Limited Warranty

Kit Includes

  • Carrying Case
  • Xtreme Boot
  • Stand
  • Lanyard
  • Mini-USB Cable
  • Free Observer USB and BLE Software Download
  • Certificate of NIST Calibration
