NDS High Range Gamma / X-ray Survey Meters

NDS High Range Gamma / X-ray Survey Meters

NDS High Range Gamma / X-ray Survey Meters

Common Specifications:


  • Display Available in mR/hr or µSv/hr
  • Rugged dustproof nylon reinforced fiberglass case and handle
  • Gamma and X-ray within 20%, from 50 to 2,000 KeV
  • Halogen quenched, energy compensated geiger mueller tube. Effective length and diameter: 0.625" x 0.192". Wall thickness: 90 mg/cm squared.
  • Saturation in excess of 1,000R/hr when calibrated and maintained properly.
  • Individual multi-turn calibration potentiometers for each range
  • 3 Ranges 0-1,000, 0-100, 0-10 mR/hr or 0-10,000, 0-1,000, 0-100 µSv/hr
  • Operates on 2 "D" cell batteries providing over 200 hours of continuous use with Alkaline Batteries.
  • Regulated High and Low Voltages.
  • Drop Tested from one meter in excess of 25 times with no damage or failure.
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Humidity: Non-Condensing 95%
  • Weight: 3 lbs & 13 oz. (1.73 kg) with batteries
  • Dimensions: 4.4" x 7.75" x 6.25" including handle (WxLxH)





NDS Products
Rugged Waterproof

Radiographic Survey Meters
Designed for NDT

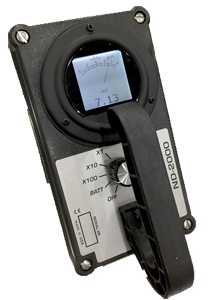

nds-2000
Model Description -A -C -CA -CLED -P -PA
ND-2000 3 Range, 0 - 1000 with dual scale mR/hr and µSv/hr + Audio Built-in Dosimeter Charger + Audio & built-in Dosimeter Charger + Built-in Dosimeter Charger + LED Dosimeter Lamp With hand Held Probe With Hand Held Probe & Audio
ND-2200 3 Range, 0 - 1000 with dual scale mR/hr and µSv/hr. Energy Comp. 50 to 2,000 KeV GM tube. + Audio
ND-2500 4 Range, 0 - 1000 with dual scale mR/hr and µSv/hr + Audio
ND-3000 5 Range, 0 - 10 R/hr with dual scale mR/hr and µSv/hr + Audio built-in Dosimeter Charger



Note: NDS Products' instruments are supplied with Certification for 6 months. If certification validity of 12 months is required, it must be requested with your order.

Product Literature

Description Part # Saved Price Select Option Add to
NDS Products ND-2000 3 Range Radiography Survey Meter (0-1000mR/hr) RS-NDS-2000 $975.00
NDS Products ND-2000 Radiography Survey Meter with Audio RS-NDS-2000A $1,000.00
NDS Products ND-2000 Radiography Survey Meter with Built-in Dosimeter Charger RS-NDS-2000C $1,100.00
NDS Products ND-2000C Radiography Survey Meter with Audio RS-NDS-2000CA $1,120.00
NDS Products ND-2000C Radiography Survey Meter with LED Dosimeter Lamp RS-NDS-2000CLED $1,120.00
NDS Products ND-2000 Radiography Survey Meter with Detector in Hand Probe RS-NDS-2000P $1,100.00
NDS Products ND-2000P Radiography Survey Meterwith Audio RS-NDS-2000PA $1,125.00
NDS Products ND-2200 Radiography Survey Meter RS-NDS-2200 $1,060.00
NDS Products ND-2200 Radiography Survey Meter with Audio RS-NDS-2200A $1,060.00
NDS Products ND-2500 Radiography Survey Meter RS-NDS-2500 $1,020.00
NDS Products ND-2500 Radiography Survey Meter with Audio RS-NDS-2500A $1,040.00
NDS Products ND-3000 5 Range Radiography Survey Meter, Dust and Waterproof (1-10R/hr) RS-NDS-3000 $1,200.00
NDS Products ND-3000Radiography Survey Meter with Audio RS-NDS-3000A $1,220.00
NDS Products ND-3000 Radiography Survey Meter with Dosimeter Charger RS-NDS-3000C $1,325.00
