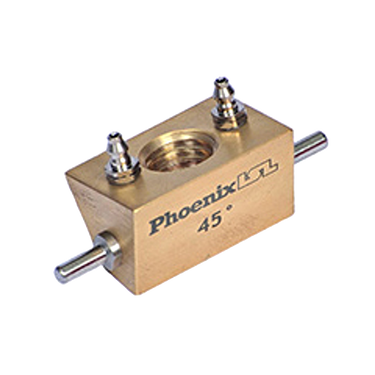

Phoenix ISL WREN TOFD Wedges - Brass
Ideal for use with the WREN Scanner and DTOF and CDTOF transducers with a reduced land, enabling wedges to sit closer to the weld cap. Includes irrigation and gimbal pin options.
|
| Product Code | Beam Angle | Thread Size | W x L (mm) (contact face) | Wedge Delay (mm) | Wedge Delay (µs) | Emission Point |
| WRENI 12/45 | 45° | M12 | 30 x 8.5 | 10.3 | 4.44 | 4 |
| WRENI 12/60 | 60° | M12 | 30 x 9 | 10.0 | 4.31 | 4 |
| WRENI 12/70 | 70° | M12 | 30 x 9 | 9.8 | 4.22 | 4 |
Non-standard wedge angles available at additional cost.
Contoured wedges available at additional cost per wedge or per pair.
Notes:
Probe dimensions supplied exclude connectors, gimbal pins and couplant nozzles.
Probe diameter measurements are to the widest point.
Contouring available per probe (please specify relative to beam direction).
Certificates and documents are optional and can be supplied with all transducers.
