Piezo-composite Mini TOFD Transducers

Piezo-composite Mini TOFD Transducers

Overview

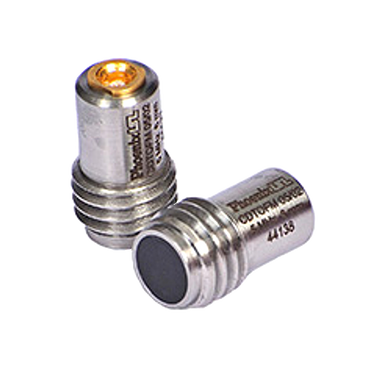

Phoenix ISL Piezo-composite Mini TOFD Transducers are Highly damped TOFD transducers, for use in confined spaces.

  • Case height: 0.08" / 20mm
  • Probes fitted with MCX connector only



Features

  • Probe diameter measurements are to the widest point
  • Contouring available per probe (please specify relative to beam direction)
  • Certificates and documents are optional and can be supplied with all transducers

Application

De-mountable Piezo-composite Mini TOFD Transducers are ideal for small-space inspection of:

  • Weldments
  • Weld root erosion inspection
  • HTHA inspection

Technical Specifications

Technical Specifications

Product Code Frequency MHz Crystal Dia (mm) Thread Size Connector
CDTOFM 5/01 5 3 M12 MCX
CDTOFM 10/01 10 3 M12 MCX
CDTOFM 15/01 15 3 M12 MCX
CDTOFM 5/02 5 6 M12 MCX

Product Literature

Description Part # Saved Price Select Option Add to
Piezo-composite Mini TOFD Transducers UT-PISL-PC-MINI-TOFD
Request Pricing
