| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| High Temperature TOFD Wedges - Stainless Steel | UT-PISL-WTOFD-SS-HT |
|
Request Pricing | ||

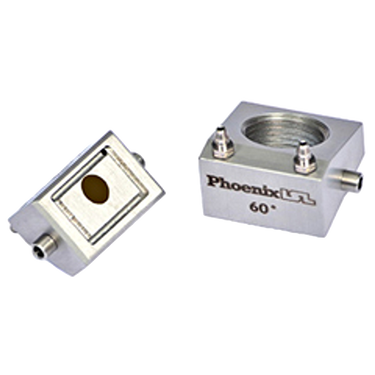

Phoenix ISL High Temperature TOFD Wedges - Stainless Steel
Can be used with the full range of Phoenix scanners and DTOF transducers. The material used in this wedge is designed to withstand 392°F / 200°C, however the temperature limit of the transducer must be considered. Includes irrigation and gimbal pin options.
|
| Product Code | Beam Angle | Thread Size | W x L (mm) (contact face) | Wedge Delay (mm) | Wedge Delay (µs) | Emission Point |
| WTOFSSI HT 12/45 | 45° | M12 | 30 x 20 | 7.1 | 2.90 | 8 |
| WTOFSSI HT 12/60 | 60° | M12 | 30 x 20 | 7.1 | 2.90 | 8 |
| WTOFFSSI HT 12/70 | 70° | M12 | 30 x 20 | 7.0 | 2.86 | 8 |
| WTOFFSSI HT 20/45 | 45° | M20 | 30 x 30 | 8.1 | 3.31 | 13 |
| WTOFFSSI HT 20/60 | 60° | M20 | 30 x 30 | 7.5 | 3.06 | 13 |
| WTOFSSI HT 12/70 | 70° | M20 | 30 x 30 | 7.5 | 3.06 | 13 |
Non-standard wedge angles available at additional cost.
Contoured wedges available at additional cost per wedge or per pair.
Wedge delay times measured at 68°F / 20°C.
Notes:
Probe dimensions supplied exclude connectors, gimbal pins and couplant nozzles.
Probe diameter measurements are to the widest point.
Contouring available per probe (please specify relative to beam direction).
Certificates and documents are optionals and can be supplied with all transducers.
