De-mountable TOFD Wedges - Plastic

De-mountable TOFD Wedges - Plastic

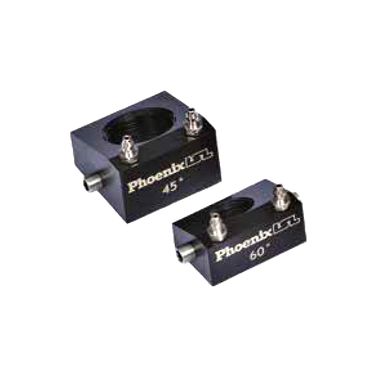

Phoenix ISL De-mountable TOFD Wedges - Plastic


For use with DTOF and CDTOF transducers. Manufactured in black plastic with irrigation and gimbal pin options.

N.B M30 thread Wedges are 40mm wide. All other wedges are 30mm wide.

  • Contoured wedges available upon request

Product Code Beam Angle Thread Size
WTOFI 12/45 45° M12
WTOFI 12/60 60° M12
WTOFI 12/70 70° M12
WTOFI 20/45 45° M20
WTOFI 20/60 60° M20
WTOFI 20/70 70° M20
WTOFI 30/45 45° M30
WTOFI 30/60 60° M30
WTOFI 30/70 70° M30
COUPLANT SKIDS - FR 1 set per wedge (1 x front and 1 x rear) 1 set per wedge (1 x front and 1 x rear)

Non-standard wedge angles available at additional cost.
Contoured wedges available at additional cost per wedge or per pair.


Probe dimensions supplied exclude connectors, gimbal pins and couplant nozzles.

Probe diameter measurements are to the widest point.

Contouring available per probe (please specify relative to beam direction)

Certificates and documents are optional and can be supplied with all transducers.

Description Part # Saved Price Select Option Add to
De-mountable TOFD Wedges - Plastic UT-PISL-DWTOFD-P Request Pricing
