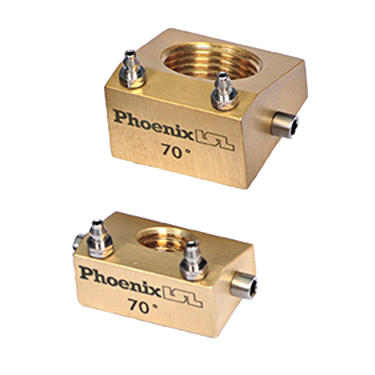

Phoenix ISL De-mountable TOFD Wedges - Brass


For use with DTOF and CDTOF transducers. Manufactured in brass with irrigation and gimbal pin options.

N.B. M30 thread Wedges are 40mm wides. All other wedges are 30mm wide.

  • Contoured wedges available upon request.

Product Code Beam Angle Thread Size
WTOF-BI-12/45 45° M12
WTOF-BI-12/60 60° M12
WTOF-BI-12/70 70° M12
WTOF-BI-20/45 45° M20
WTOF-BI-20/60 60° M20
WTOF-BI-20/70 70° M20
WTOF-BI-30/45 45° M30
WTOF-BI-30/60 60° M30
WTOF-BI-30/70 70° M30
COUPLANT SKIDS - FR 1 set per wedge (1 x front and 1 x rear) 1 set per wedge (1 x front and 1 x rear)

Non-standard wedge angles are available at additional cost.
Contoured wedges available at additional cost per wedge or per pair.


Probe dimensions supplied exclude connectors, gimbal pins and couplant nozzles.

Probe diameter measurements are to the widest point.

Contouring available per probe (please specify relative to beam direction).

Certificates and documents are optional and can be supplied with all transducers.

Description Part # Saved Price Select Option Add to
De-mountable TOFD Wedges - Brass UT-PISL-DWTOFD-BR Request Pricing
