Extended Range Variable Diameter Step Block

PH Tool ERVD (Extended Range Variable Diameter) Step Block

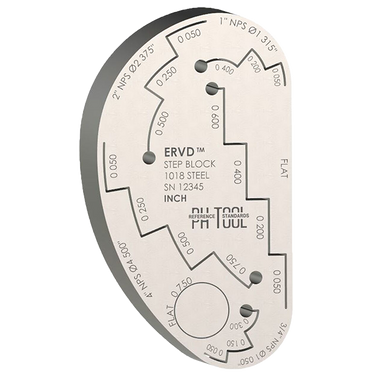

The versatile new Extended Range Variable Diameter (ERVD™) Step Block is intended for use as a curved step block for thickness testing of pipe. This one small, convenient block covers sizes ranging from 3/4" NPS curvature up to 4” NPS, with multiple thicknesses included. A flat section is also included for calibration on larger diameters. Engraved markings show pipe diameters for each section. Narrow slots are cut completely through the block to create multiple points for calibration. The various distances from the OD to the outboard side of the slot represent different wall thicknesses. Thickness values are engraved directly on the block for convenient calibration. This block is also engraved with alloy and a unique serial number that ties it to the cert.

Diameters and Steps included:
Inch:


  • 3/4" NPS (1.050" OD); Steps: 0.050", 0.150", 0.300"
  • 1" NPS (1.315" OD); Steps: 0.050", 0.200", 0.400"
  • 2" NPS (2.375" OD); Steps: 0.050", 0.250", 0.500"
  • 4" NPS (4.500" OD); Steps: 0.050", 0.250", 0.500", 0.750"
  • Flat area for larger pipes. Steps: 0.050", 0.200", 0.400", 0.600"
  • "Bonus" Flat Step by using 0.750" block width


Metric:

  • DN 20 (26.7mm OD); Steps: 1.0, 4.0, 8.0mm
  • DN 25 (33.4mm OD); Steps: 1.0, 5.0, 10.0mm
  • DN 50 (60.3mm OD); Steps: 1.0, 6.0, 12.0mm
  • DN 100 (114.3mm OD); Steps: 1.0, 6.0, 12.0, 18.0mm
  • Flat area for larger pipes. Steps: 1.0, 5.0, 10.0, 15.0mm
  • “Bonus” Flat Step by using 20mm block thickness
  • 18 calibration thicknesses in total


Dimensions: 0.750" wide x 1.75" x 3.15'

Special Alloys: (Call for Price)

  • Aluminum
  • Titanium
  • 4340 Steel
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • Hastelloy C278
  • Hastelloy X
  • Monel 400
  • 1018 Steel, Nickel Plated
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Aluminum
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium
  • Inconel 600
  • Inconel 625


Certification Notes:

  • Material certification is included with all blocks.
  • Serialization and Dimensional certification are available at additional cost.


Don't see what you're looking for? Please contact us.

Optional Hardwood Case is available.

Description Part # Saved Price Select Option Add to
ERVD (Extended Range Variable Diameter), Step Block, 1018 Steel, Nickel-plated, Inch UT-PHT-ERVD-STEPBLOCK-ICS $1,327.00
ERVD (Extended Range Variable Diameter), Step Block, 1018 Steel, Nickel-plated, Metric UT-PHT-ERVD-STEPBLOCK-MCS $1,327.00
ERVD (Extended Range Variable Diameter), Step Block, 304 Stainless Steel, Nickel-plated, Inch UT-PHT-ERVD-STEPBLOCK-ISS $1,791.00
ERVD (Extended Range Variable Diameter), Step Block, 304 Stainless Steel, Metric UT-PHT-ERVD-STEPBLOCK-MSS $1,791.00
Hardwood Case for ERVD Step Block UT-PHT-ERVD-CASE $83.00
PH Tool Dimensional Certificate (New Block) [2] UT-PHT-ERVD-STEPBLOCK-CERT $88.00
PH Tool Dimensional Certificate (Recertification) [4] UT-PHT-ERVD-STEPBLOCK-RECERT $175.00
