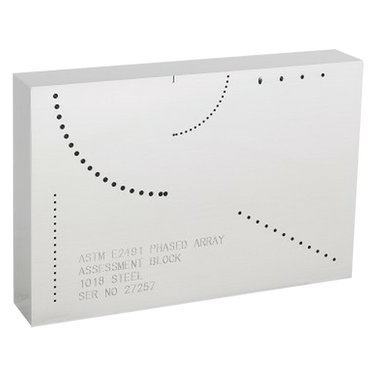

PH Tool ASTM E2491 Phased Array Assessment Block

PH Tool ASTM E2491 Phased Array Assessment Block

Used for beam characterization and evaluation of system performance characteristics.

Overview

The PH Tool ASTM E2491 Phased Array Assessment Block is a general purpose Phased Array calibration block used for beam characterization and evaluation of system performance characteristics. Use it as a baseline block to determine long-term instrument performance changes, generate DAC curves and evaluate linear / angular resolution, focusing ability and beam steering capabilities. With a variety of targets, this small, lightweight block is also perfect for customer demonstrations of phased array ultrasonics capabilities. This block is also referred to as a "Type B" block.

Geometry:

  • Inch Dimensions: 1" thick x 4" wide x 6" long
  • Metric Dimensions: 150mm x 100mm x 25mm





Inch Block Features:

  • Four (4) angled holes (30°, 45°, 60° and 75°) at 1/16" (.0625) diameter
  • Array of 18 holes on 1" radius at 0.040" diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
  • Array of 18 holes on 2" radius at 5/64" (.0781) diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
  • Vertical column of 16 holes at 0.040" diameter with 0.120" of separation between holes.
  • Angled row of 12 holes at 1/16" (.0625) diameter with 0.200" of separation between holes.
  • Machine engraved tick mark at radii centerline.
  • Machine engraved block description, alloy and unique serial no.





Metric Block Features:

  • Four (4) angled holes (30°, 45°, 60° and 75°) at 1.5mm diameter.
  • Array of 18 holes on 25mm radius at 1.0mm diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
  • Array of 18 holes on 50 mm radius at 2.0mm diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
  • Vertical column of 16 holes at 1.0mm diameter with 3.0mm of separation between the holes.
  • Angled row of 12 holes at 1.5mm diameter with 5.0mm of separation between holes.
  • Machine engraved tick mark at radii centerline
  • Machine engraved block description, alloy and unique serial no.

Materials

Standard Materials

  • 1018 Carbon Steel
  • 7075-T6 Aluminum
  • 304 Stainless Steel
Special Materials (Call for Price)

  • 4340 Steel
  • Titanium
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • Hastelloy C276
  • Monel 400
  • Hastelloy X
  • 1018 Steel, Nickel Plated
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Titanium
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium 702
  • Inconel 600
  • Inconel 625

Purchasing Details:

  • Material certification is included with all blocks.
  • Dimensional certification are available at additional cost.
  • If additional certification is required, make sure to select UT-PHT-PA10208-Cert when adding items to the shopping cart.
  • Optional Hardwood Case available upon request
Description Part # Saved Price Select Option Add to
PH Tool ASTM E2491 Phased Array Assessment Block (select material)
Model #
UT-PHT-PA10208-1018-Master
$2,521.00
PH Tool ASTM E2491 Phased Array Assessment Block - Metric Version (select material)
Model #
UT-PHT-PA10208-1018-M-Master
$2,521.00
PH Tool ASTM E2491 Phased Array Assessment Block Wooden Case UT-PHT-PA10208-CASE
$100.00
PH Tool ASTM E2491 Phased Array Assessment Block Dimensional Certificate (New Block) UT-PHT-PA10208-CERT
$310.00
PH Tool ASTM E2491 Phased Array Assessment Block Dimensional Certificate (Recertification) UT-PHT-PA10208-RECERT
$621.00
