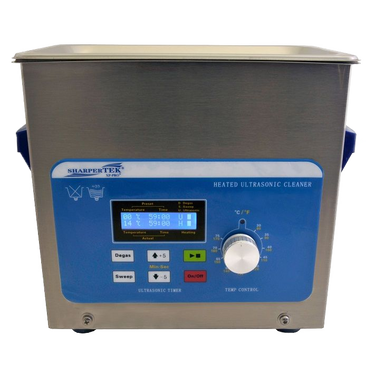

SharperTEK XPS Series Heated Ultrasonic Cleaners

SharperTEK XPS Series Heated Ultrasonic Cleaners

Overview

Quickly and professionally clean your test panels with the XPS Series desktop ultrasonic cleaning units. We use in-house for cleaning all tam panels and other test specimens. It completely removes excess penetrant from indications as well as the surface of the panel.

How They Work:

Fill the tank with warm water and a cleaning solution. Place the items to be cleaned in a perforated tray and lower them into the tank. You can also suspend items on a wire and then immerse them in the solution. After cleaning, use a clean water bath to rinse away chemicals adhering to items.  Air drying at room temperature works for some items. Place parts requiring faster drying time under hot air blowers or in ovens.





Features

  • Industrial Grade Model
  • Sweep Function
  • Degas Function
  • Normal Frequency Function
  • Operator Temperature Controls (knob)
  • Digital Ultrasonic Timer
  • Comes with Free Basket
  • Comes with Free Cover
  • Comes with Side Handles
  • Stamina XP® Series
  • Very Reliable Industrial-Grade Transducer
  • Temperature Controlled Heat for best cleaning performance
  • Made in the USA

Technical Specifications

XPS120-2.5L Specifications

Ultrasonic Frequency: 40,000 Hz
Tank Material: Stainless Steel
Tank Capacity: 2.5 Liters, 2.7 Quarts
Tank Dimensions (LxWxH): 6" x 5.25" x 6"
Unit Dimensions (LxWxH): 7" x 6.43" x 12"
Power Supply: 100 - 120 VAC, 50/60 Hz
Weight: 6 lbs.
XPS120-3L Specifications

Ultrasonic Frequency: 40,000 Hz
Tank Material: Stainless Steel
Power Supply: 100 - 120 VAC, 50/60 Hz
Unit Size: 10" × 6" × 9.5"
Tank Dimensions: 9" × 5.5" × 4"
Tank Capacity: 3/4 Gallon
Weight: 8 lbs.
Warranty: 2 years
XPS240-4L Specifications

Ultrasonic Frequency: 40,000 Hz
Tank Material: Stainless Steel
Power Supply: 100-120 VAC, 50/60 Hz
Power: 750 W
Tank Capacity: 4 liters (approx. 1 Gallon)
Tank Dimensions (LxWxH): 12" x 6" x 6.75"
Unit Dimensions (LxWxH): 13" x 7.7" x 10"
Weight: 10.5 lbs.

Cleaning Solutions

SC31 Ultrasonic Cleaning Solution Concentrate

A mild, organic acid product which safely and efficiently removes grime, scale, and oxides from ferrous and nonferrous metals, resulting in a deep reflective finish. Formulated for use in ultrasonic cleaning systems, SC31 not only removes corrosion, but it helps preventing parts from corroding after cleaning.

CS31

SC52 Cleaning Concentrate

SC52 Cleaning Concentrate is a moderately acidic product formulated to strip metal oxides and metallic coatings from ferrous and nonferrous metals, resulting in a bright reflective finish. It is intended for use in soak tanks or ultrasonic cleaning systems.

  • Non-combustible & Non-corrosive
  • Contains no hazardous ingredients and is biodegradable

CS52

SC-44 Cleaning Concentrate

This product is a concentrated neutral pH non-butyl powder degreaser which removes the heaviest of grease accumulations. Contains no phosphates, silicates, solvents, or chelating agents. Low-foaming for automatic scrubbers and spray cabinets. Oil-splitting for easy oil and grease separation. High degree of product recovery in ultra filtration systems.

SC-44

Baskets

There are wide range of sizes and materials to choose from. Available sizes and materials include:

  • 2.5L Stainless Steel Fine Mesh or Stainless Steel Basket (4.7"L x 4"W x 4"D)
  • 3L Stainless Steel Fine Mesh or Stainless Steel Basket (8"L x 4"W x 2"D)
  • 4L Stainless Steel Fine Mesh or Stainless Steel Basket (10"L x 4"W x 2"D)
  • 6L Stainless Steel Fine Mesh or Stainless Steel Basket (10"L x 4" Wx 4"D)
  • 8L Stainless Steel Basket (9"L x 7"W x 2.4"D)
  • 11L Stainless Steel Basket (9"L x 7"W x 4"D)



Description Part # Saved Price Select Option Add to

Ultrasonic Heated Cleaners

XPS120-2.5L: SharperTek Heated Ultrasonic Jewelry Cleaner w/ Sweep and Degas, (6" x 5.25" x 6") 110V PT-ST-XPS120-2.5L-110V $425.00
XPS120-2.5L: SharperTek Heated Ultrasonic Jewelry Cleaner w/ Sweep and Degas, (6" x 5.25" x 6") 220V PT-ST-XPS120-2.5L-220V $545.00
XPS120-3L: SharperTek Heated Ultrasonic Cleaner w/ Sweep (9" x 5.5" x 4") 110V PT-ST-XPS120-3L-110V $540.00
XPS120-3L: SharperTek Heated Ultrasonic Cleaner w/ Sweep (9" x 5.5" x 4") 220V PT-ST-XPS120-3L-220V $660.00
XPS240-4L: SharperTek Heated Ultrasonic Cleaner w/ Sweep and Degas, (12" x 6" x 3.75") 110V PT-ST-XPS240-4L-110V Request Pricing
XPS240-4L: SharperTek Heated Ultrasonic Cleaner w/ Sweep and Degas, (12" x 6" x 3.75") 220V PT-ST-XPS240-4L-220V Request Pricing

Baskets

SharperTek 2.5L Regular Basket - 4.7"L x 4"W x 4"D - (select material)
Model #
PT-ST-RB-2.5L-Master $71.00
SharperTek 3L Regular Basket - 8"L x 4"W x 2"D - (select material)
Model #
PT-ST-RB-3L - Master $85.00
SharperTek 4L Regular Basket - 10"L x 4"W x 2"D - (select material)
Model #
PT-ST-RB-4L-Master $90.00
SharperTek 6L Regular Basket - 10"L x 4"W x 4"D - (select material)
Model #
PT-ST-RB-6L-Master $96.00
SharperTek 8L Regular Basket - 9"L x 7"W x 2.4"D - (select material)
Model #
PT-ST-RB-8L-Master $98.00
SharperTek 11L Regular Basket - 9"L x 7"W x 4"D - (select material)
Model #
PT-ST-RB-11L-Master $106.00

Cleaning Chemicals

SharperTek SC31 Rustbuster Cleaning Solution for removal of grime, scale and oxides (select size)
Model #
PT-ST-CS31-Master $71.00
SharperTek SC52 Cleaning Solution for removal of metal oxides (select size)
Model #
PT-ST-SC52-Master $106.00
SharperTek SC44 General Purpose Cleaner - Highly Concentrated Powder PT-ST-SC-44 $61.00
